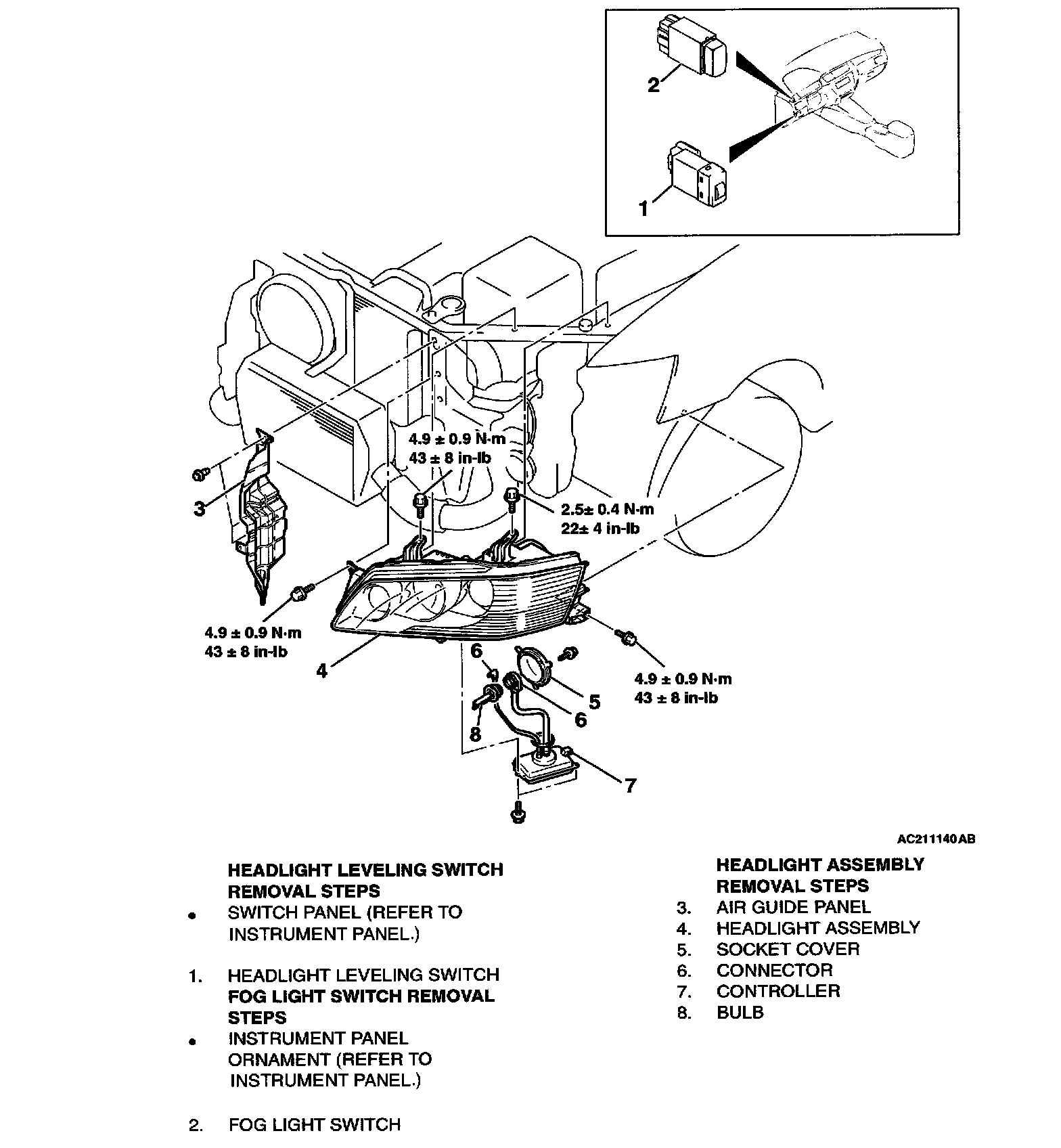

Headlamp




Headlight:






ITEMS SPECIFICATIONS
Headlight mounting bolt 4.9 ± 0.9 N.m (43 ± 8 in-lb)
