Function Diagnosis

The table below shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "Normal conditions" shows values, which are shown when each operation is made.

Part 1:

Part 2:

Part 3:

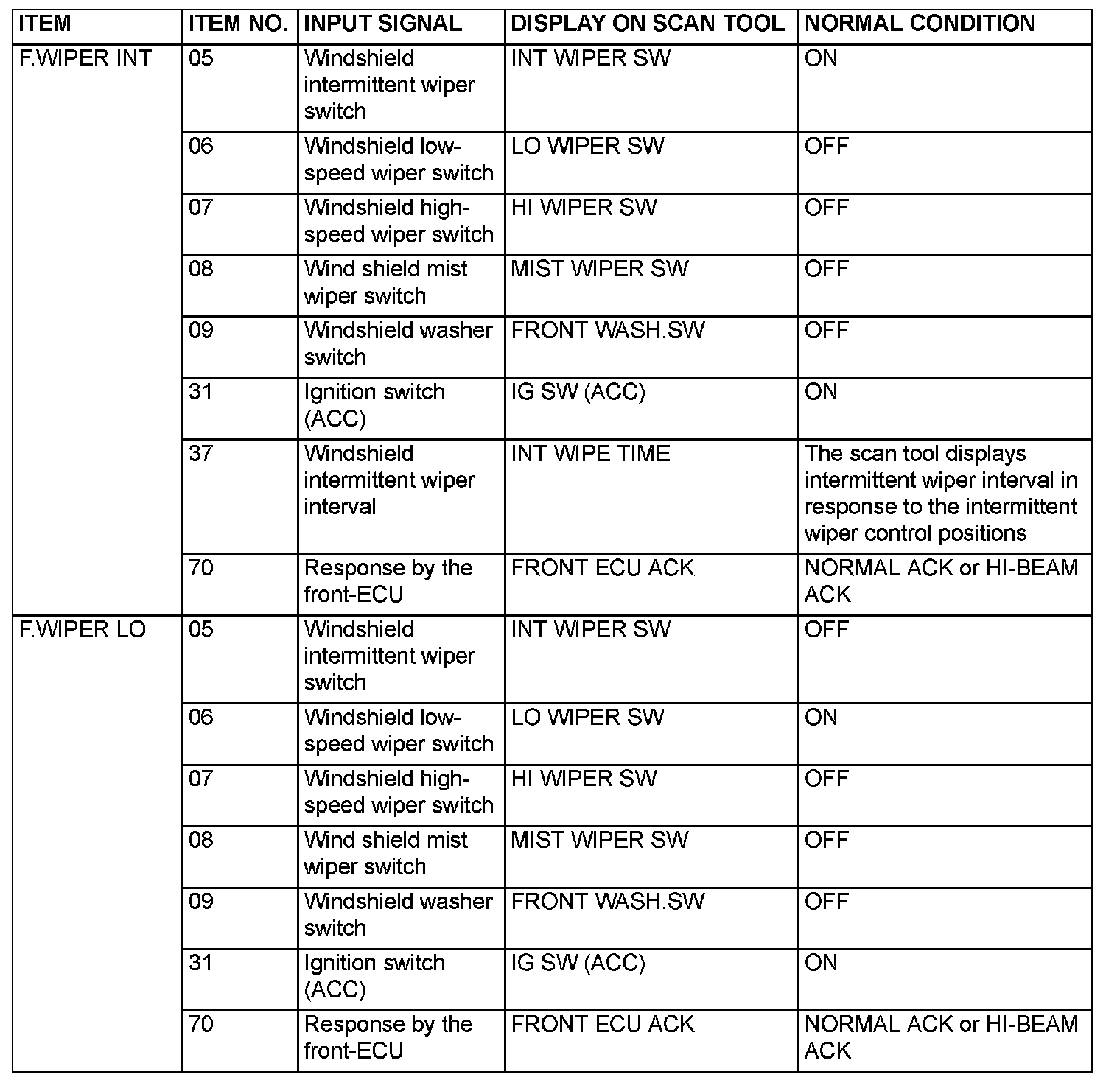

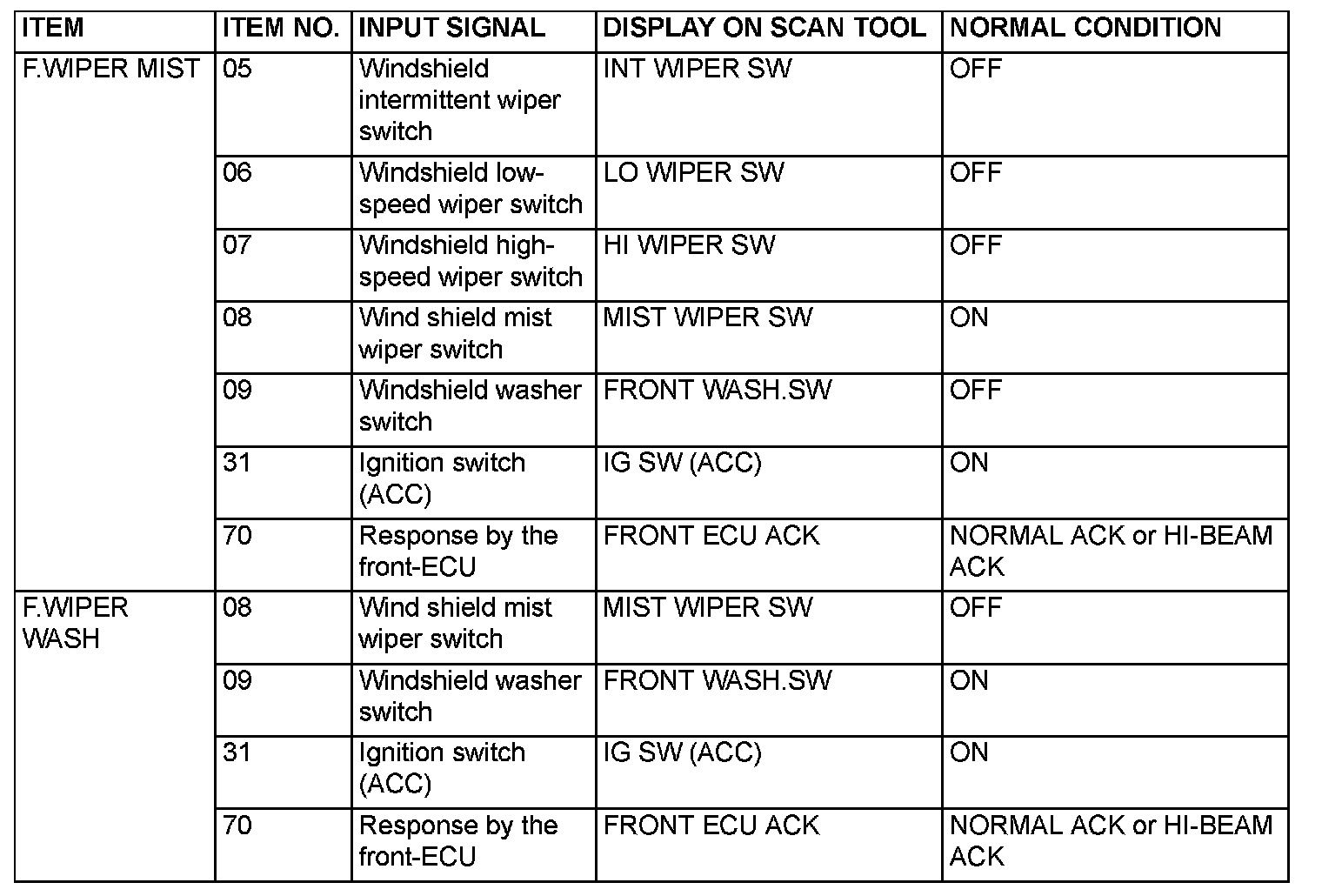

- WIPER

Part 1:

Part 2:

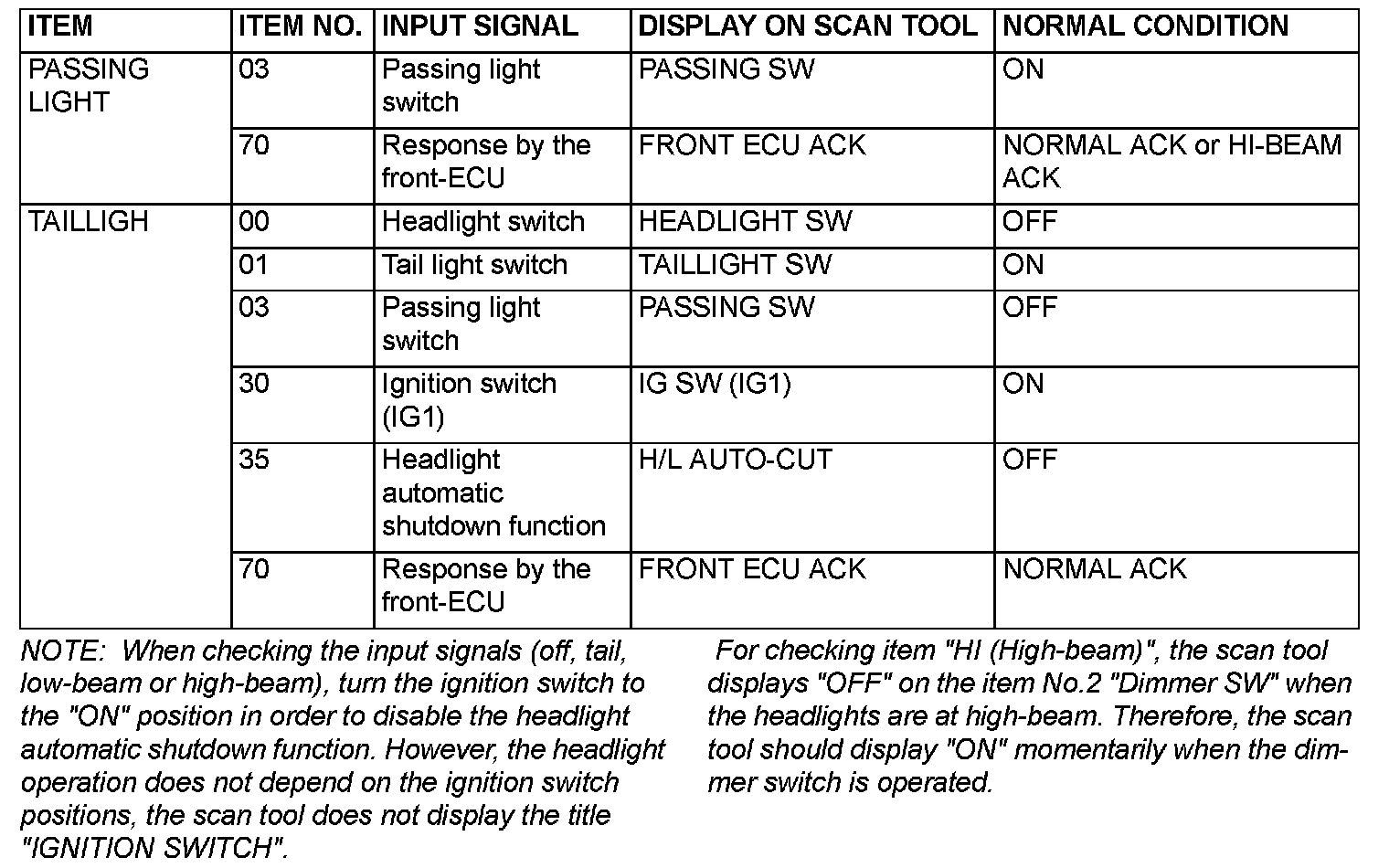

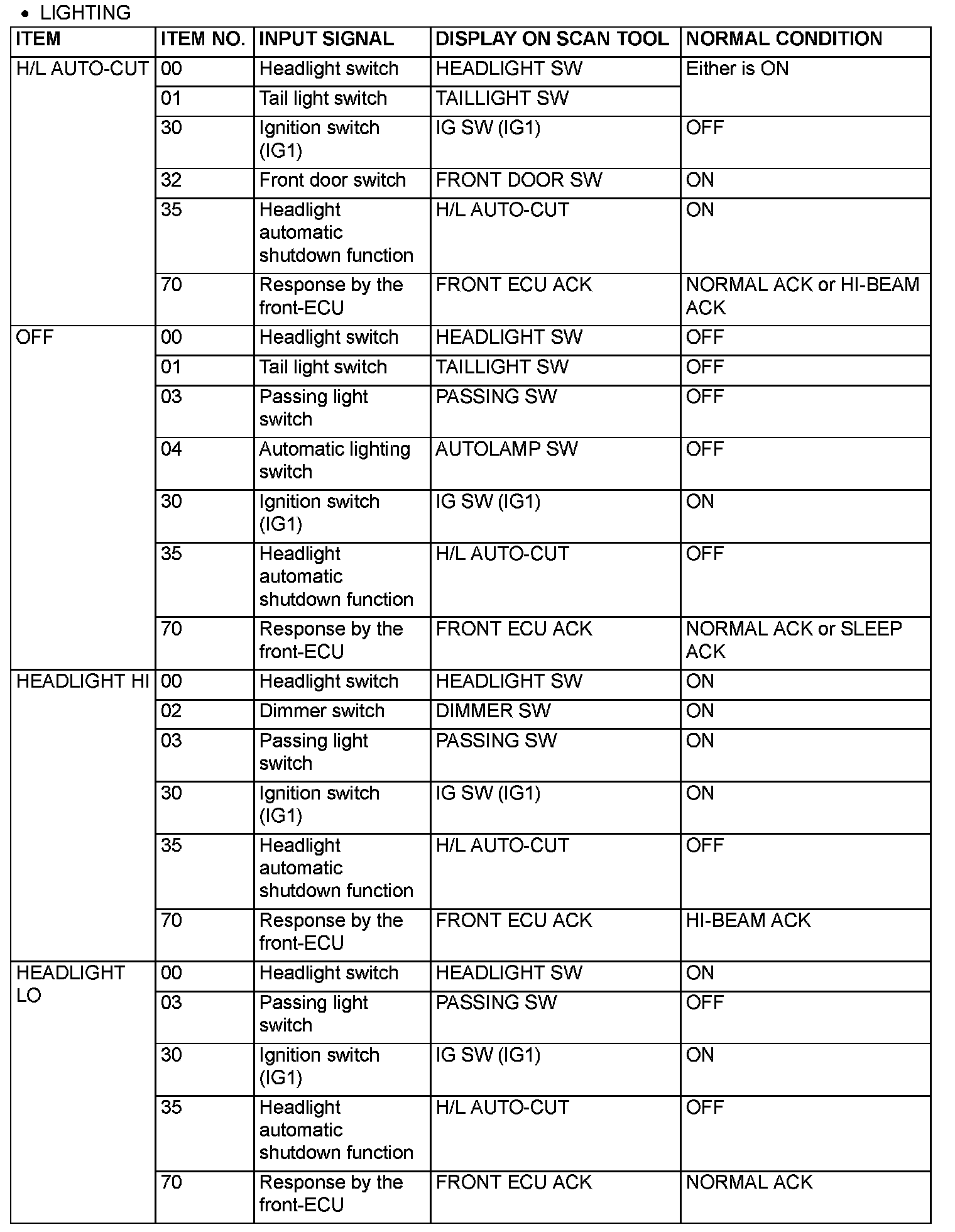

- LIGHTING




- TURN SIGNAL

Part 1:

Part 2:

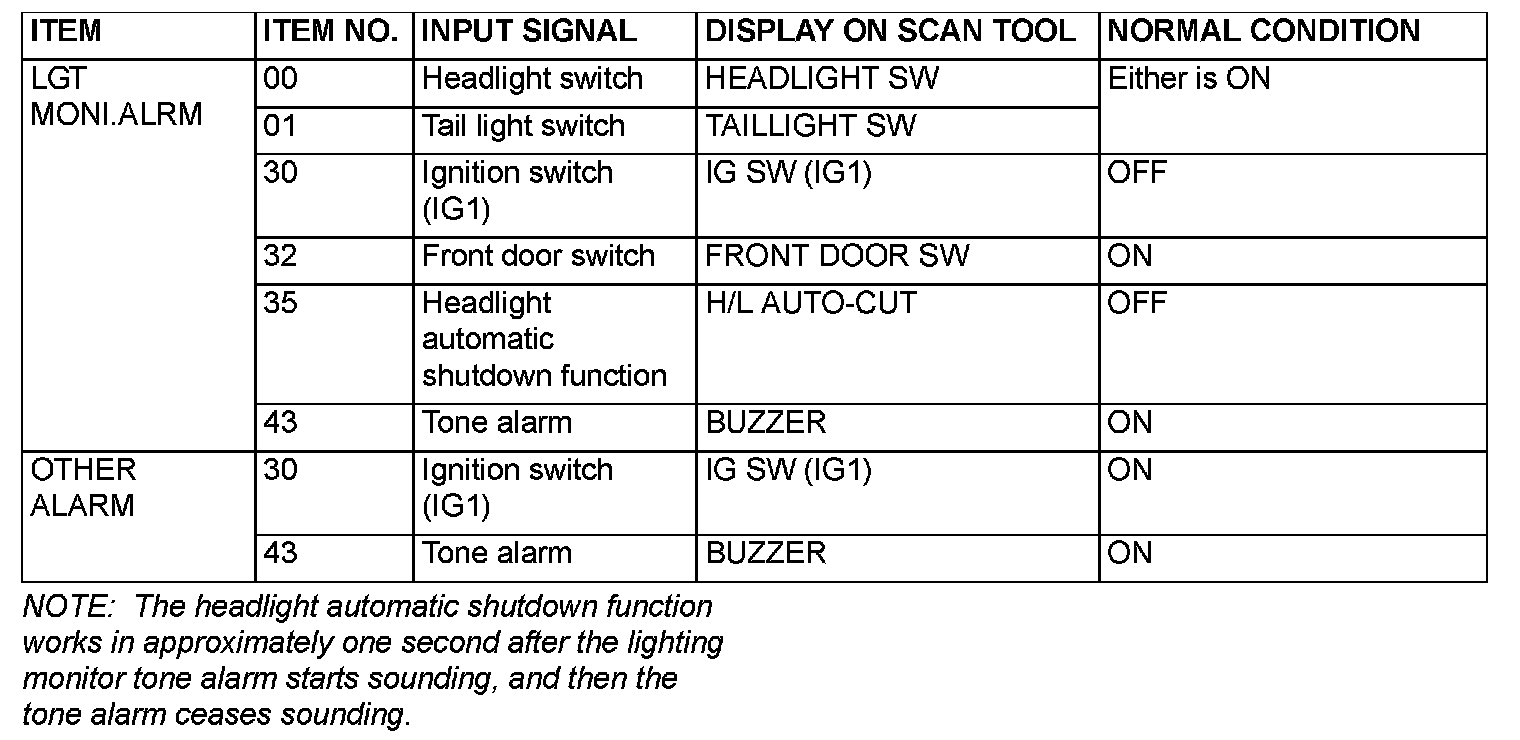

- BUZZER




- THEFT-ALARM
