Removal And Installation: Notes

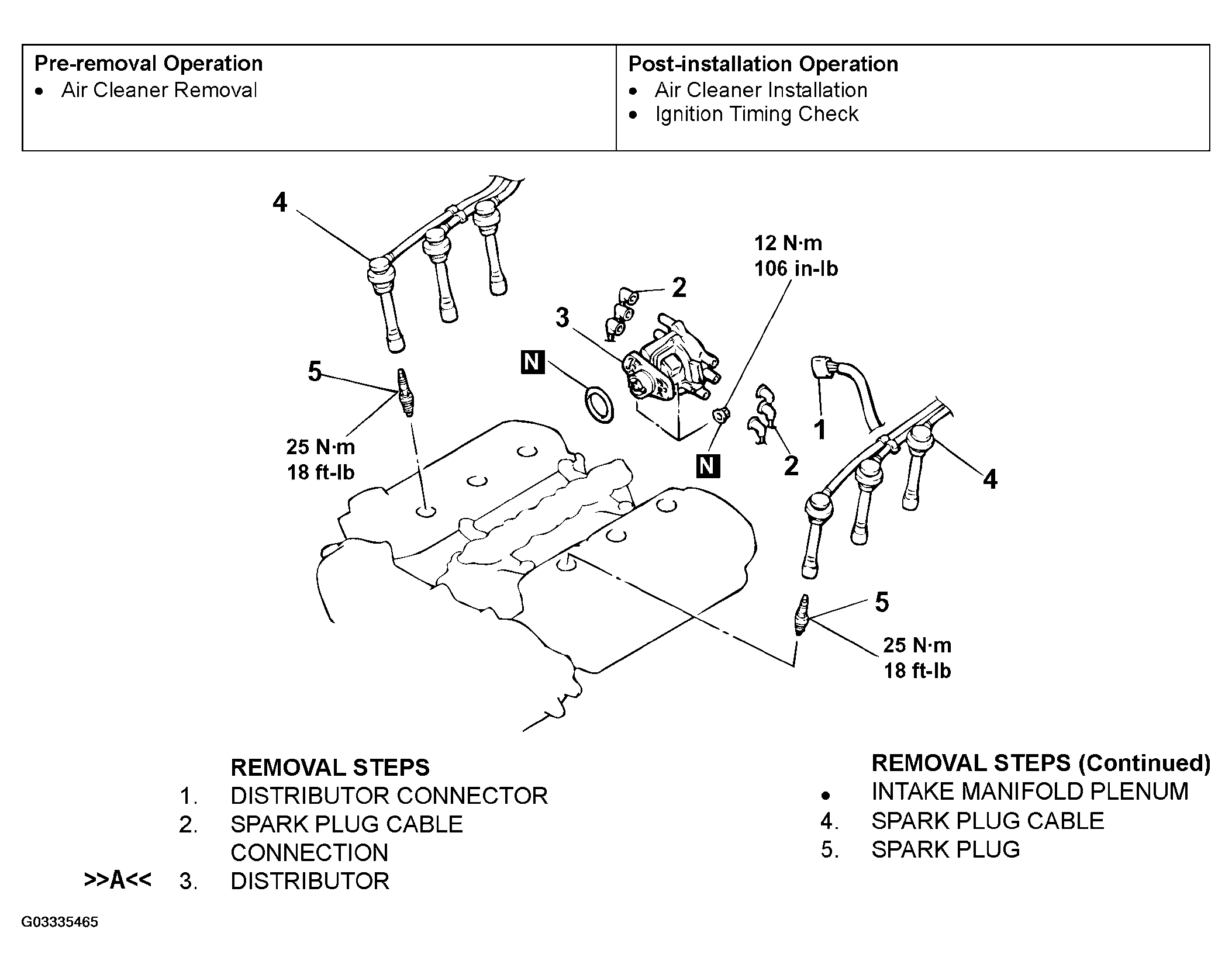

Fig 1: Removing & Installing Ignition Coil - 3.0L
G03335465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
