System Construction Diagram

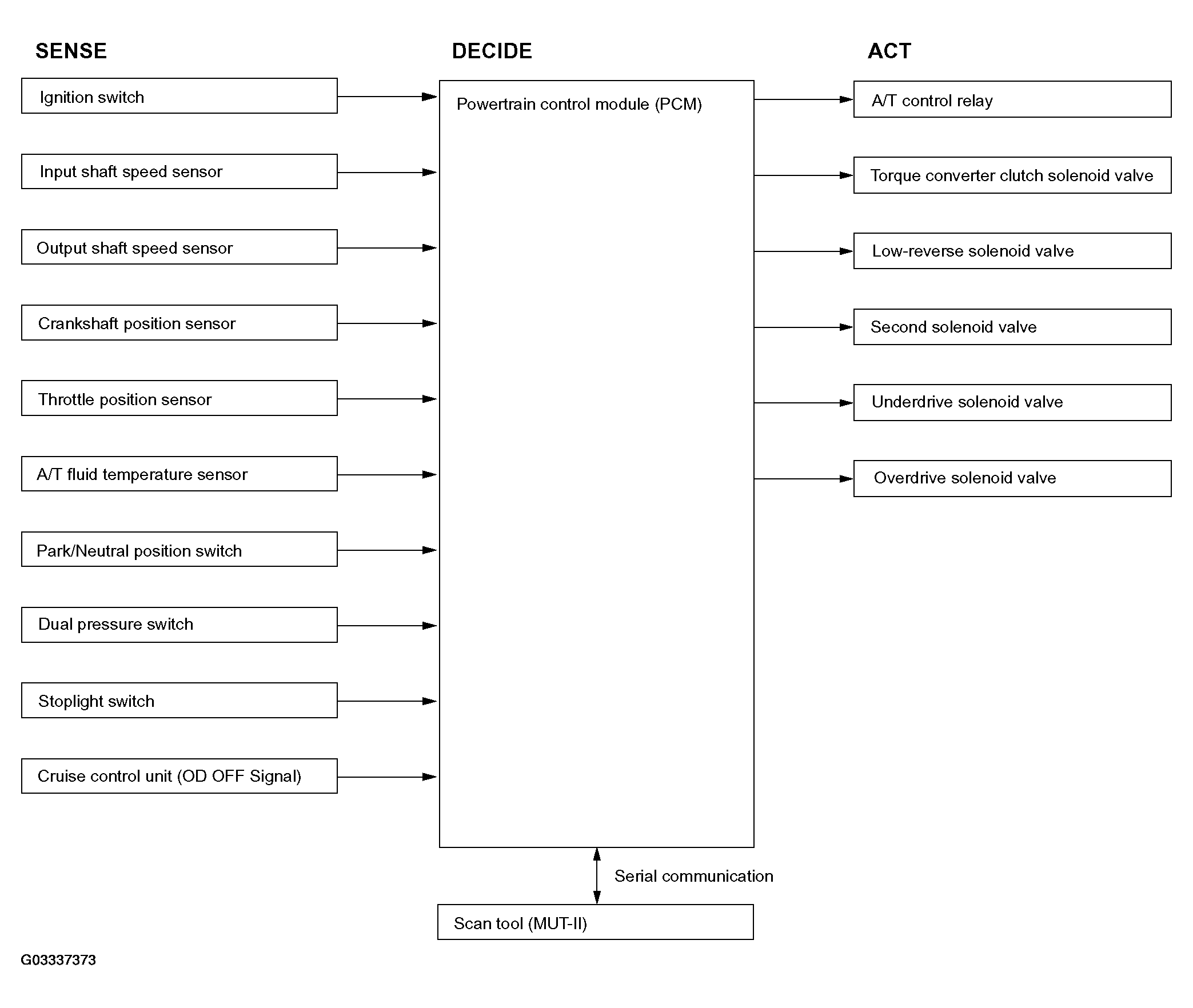

Fig 1: System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
