Front





FRONT DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

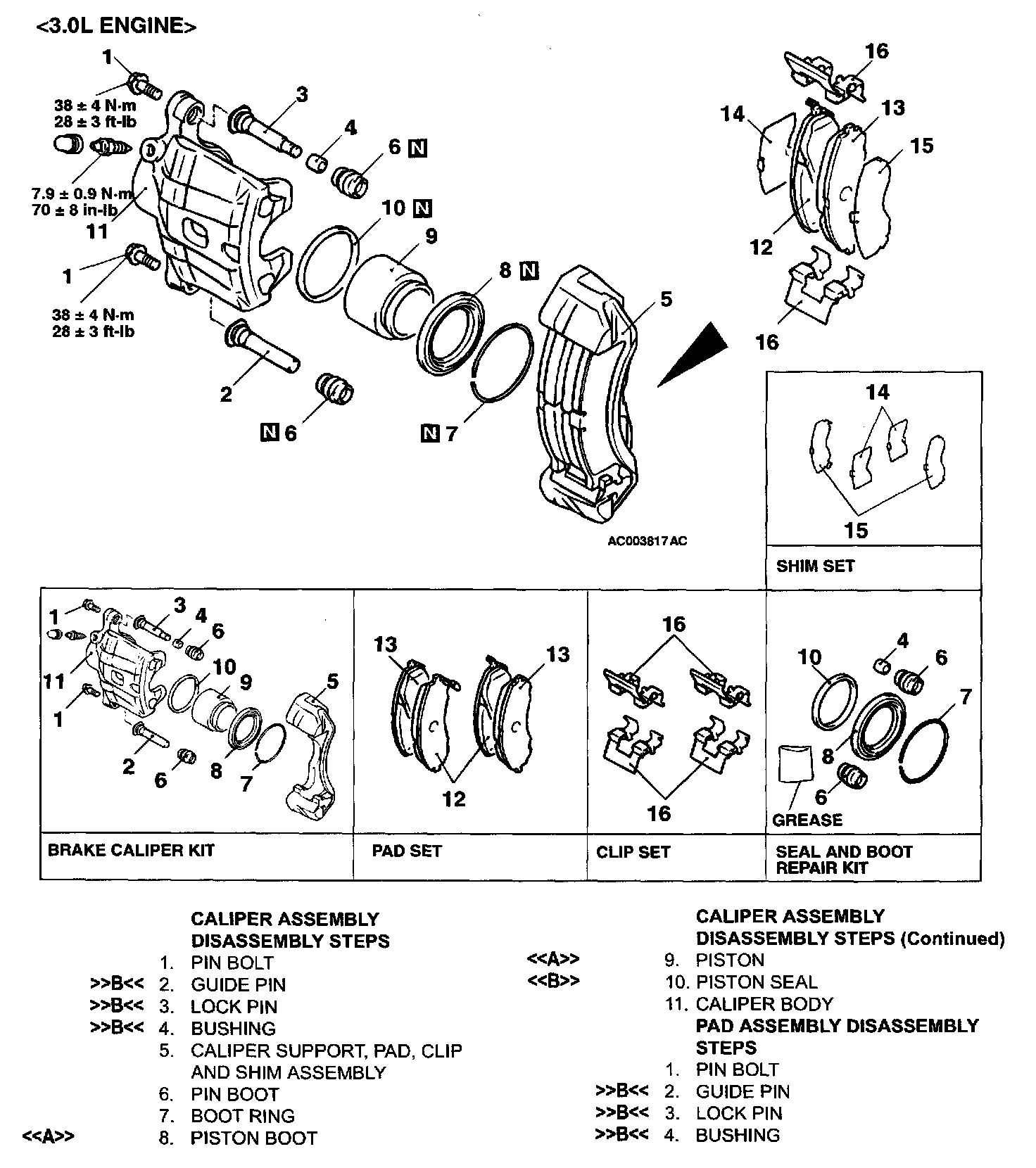

FRONT DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
