Removal And Installation: Notes

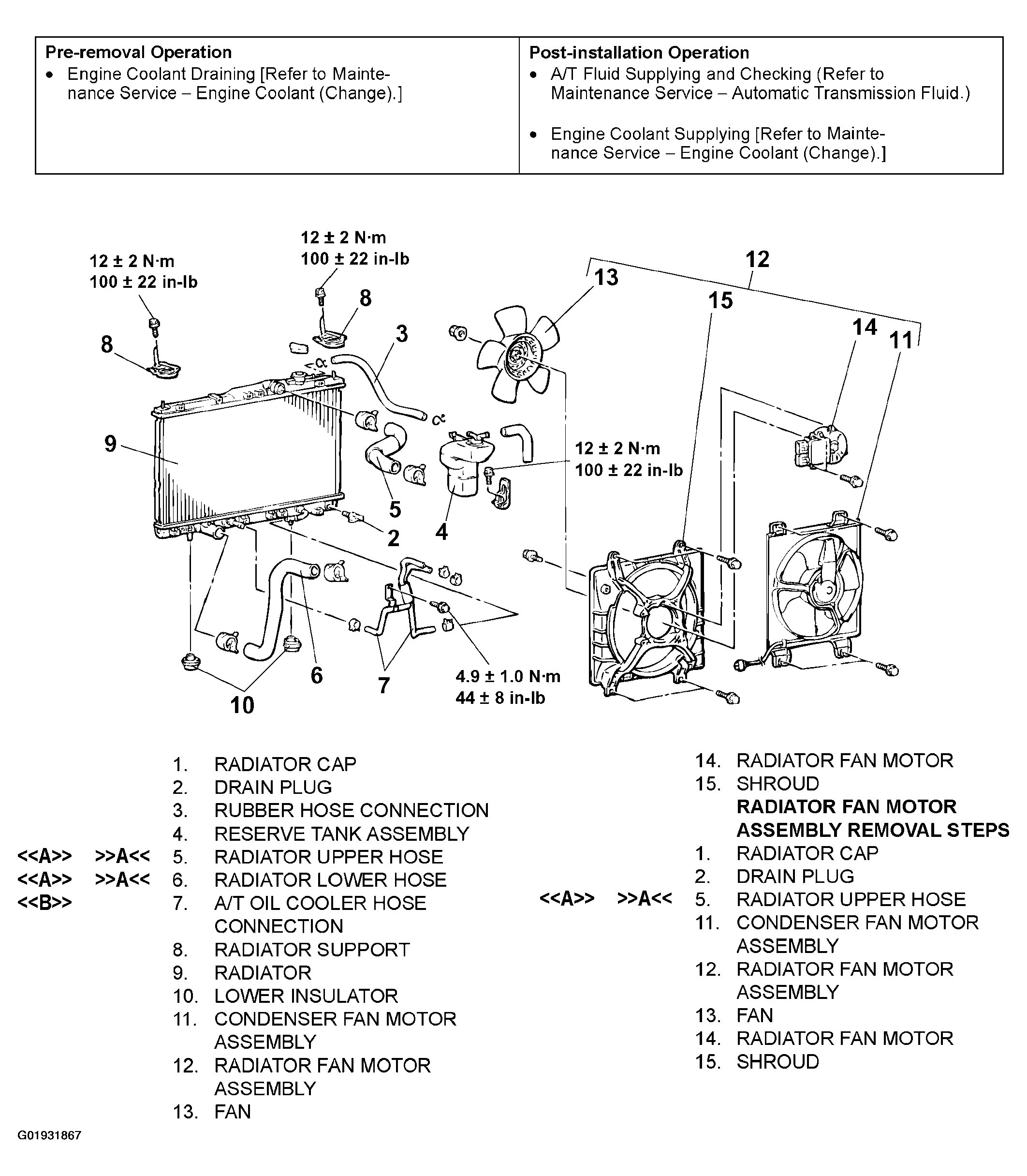

Fig 1: Radiator Removal Procedure
G01931867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
