Vacuum Actuator

  1. Disconnect the vacuum hose from the vacuum actuator, and connect a hand vacuum pump to the actuator.
  2. Check that the throttle lever operates when applying vacuum, and the vacuum is maintained.

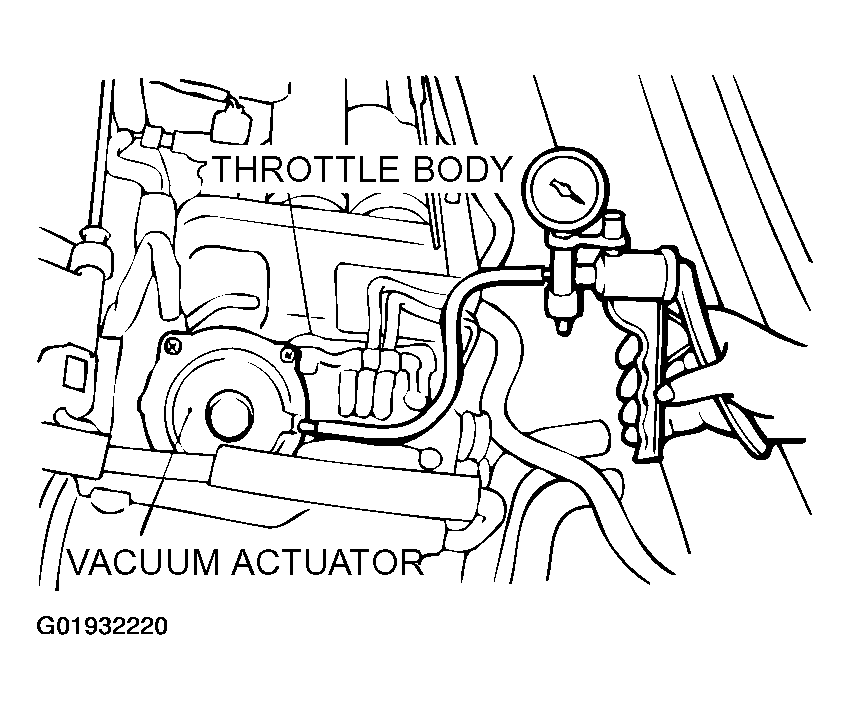

    Fig 1: Checking Vacuum Actuator
    G01932220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
