Fuse: Application and ID

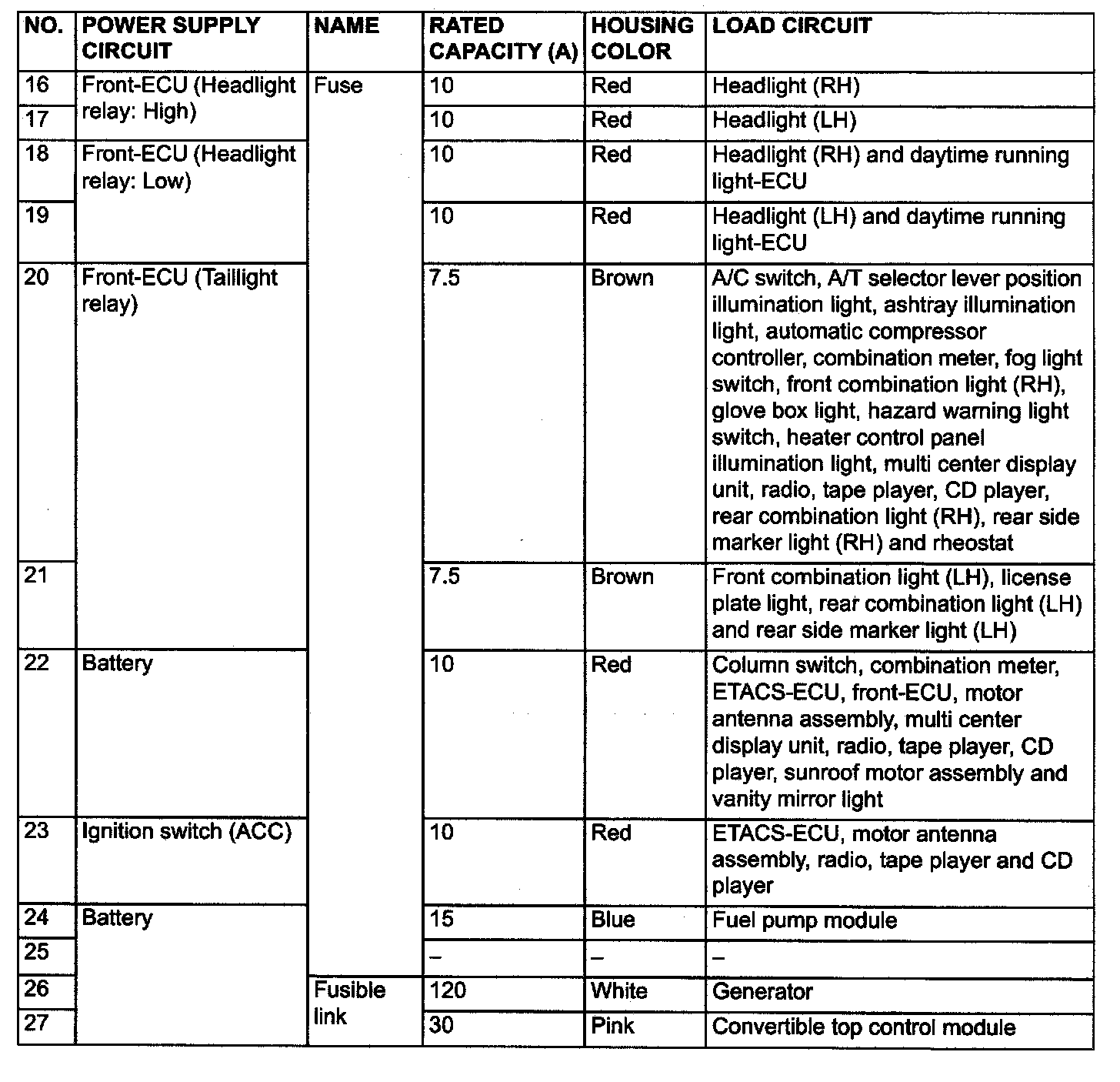

Application Table:



Application Table:

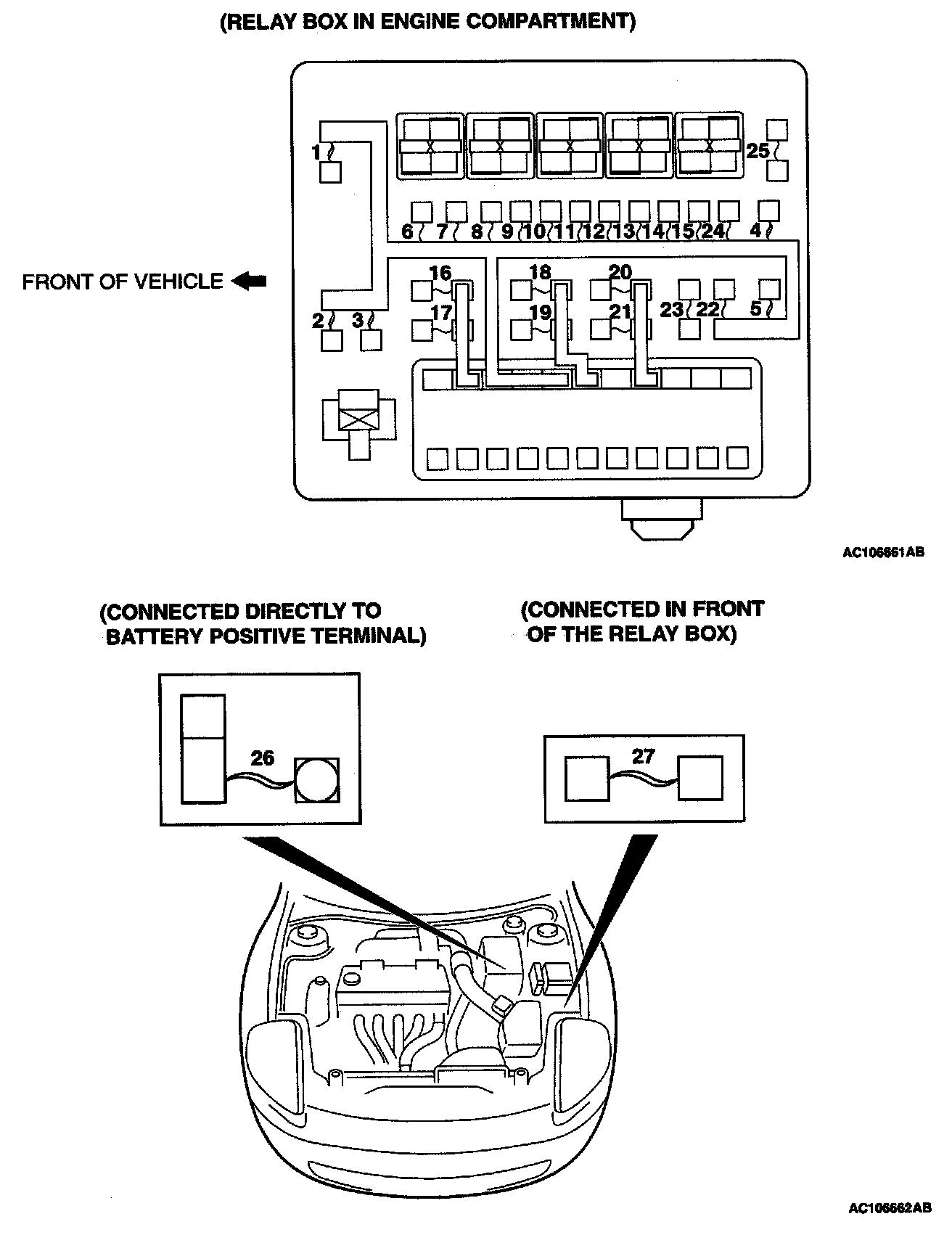

Location View:

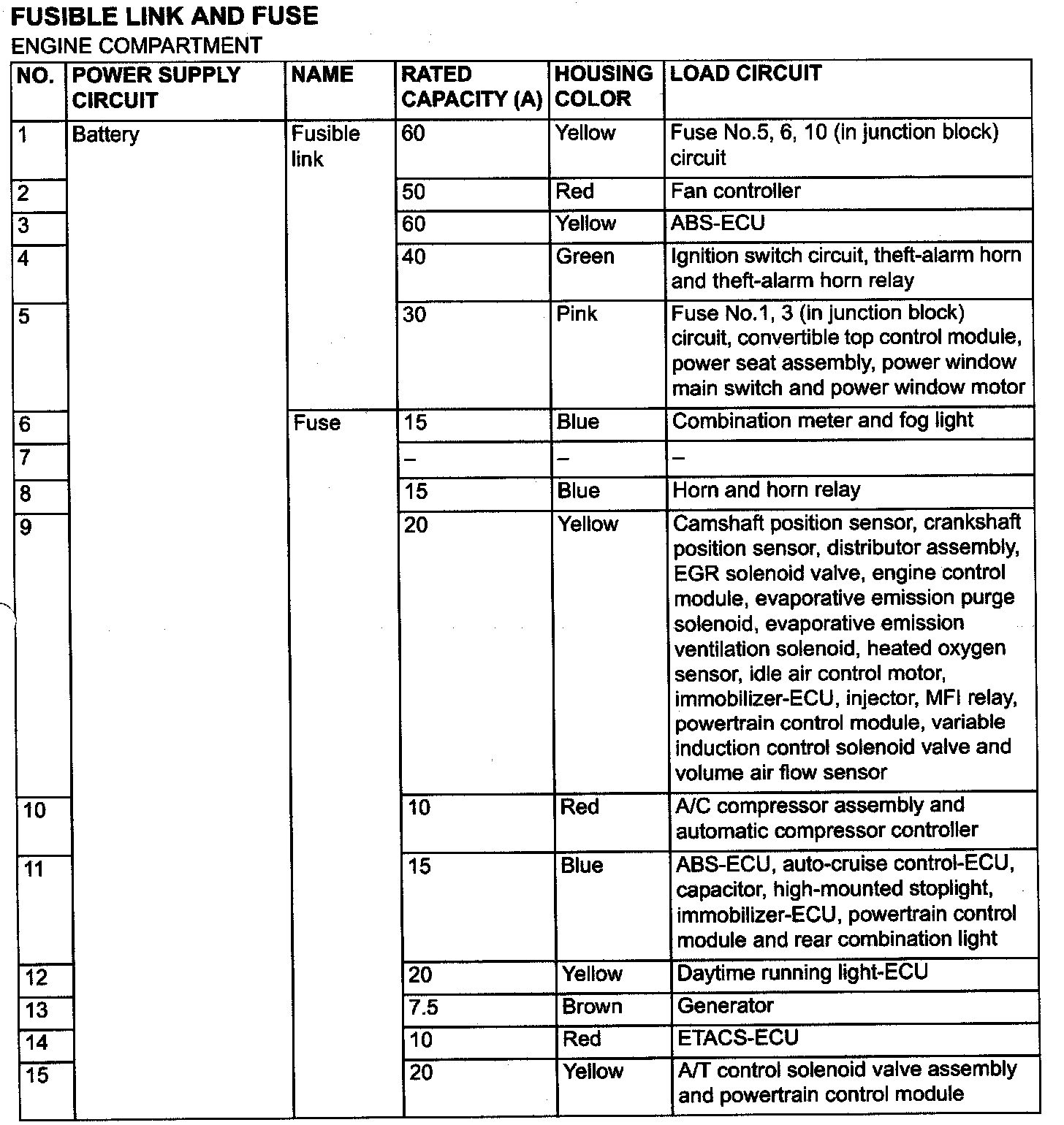

Application Table:

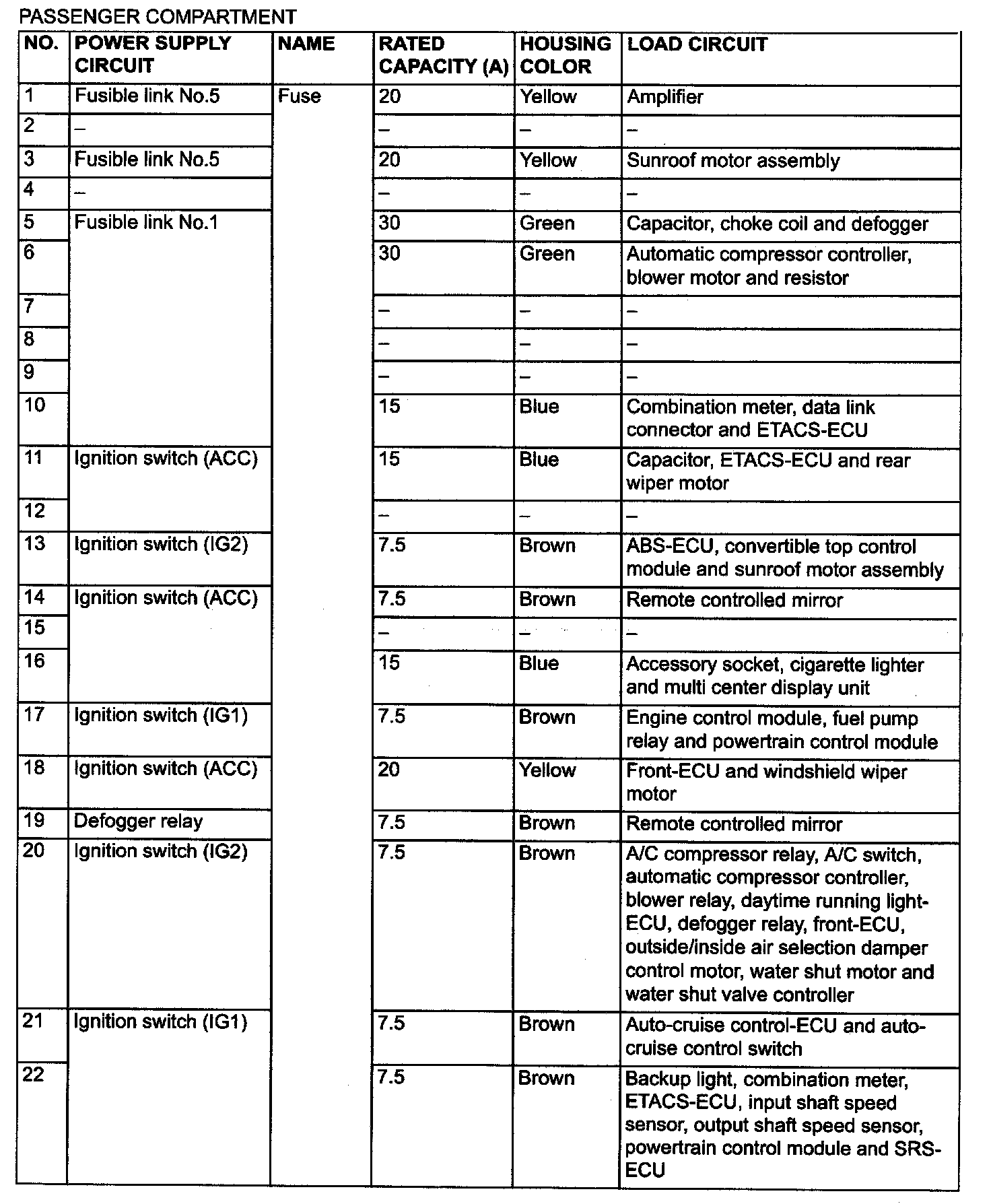

Application Table:



Location View:
