Removal And Installation: Notes

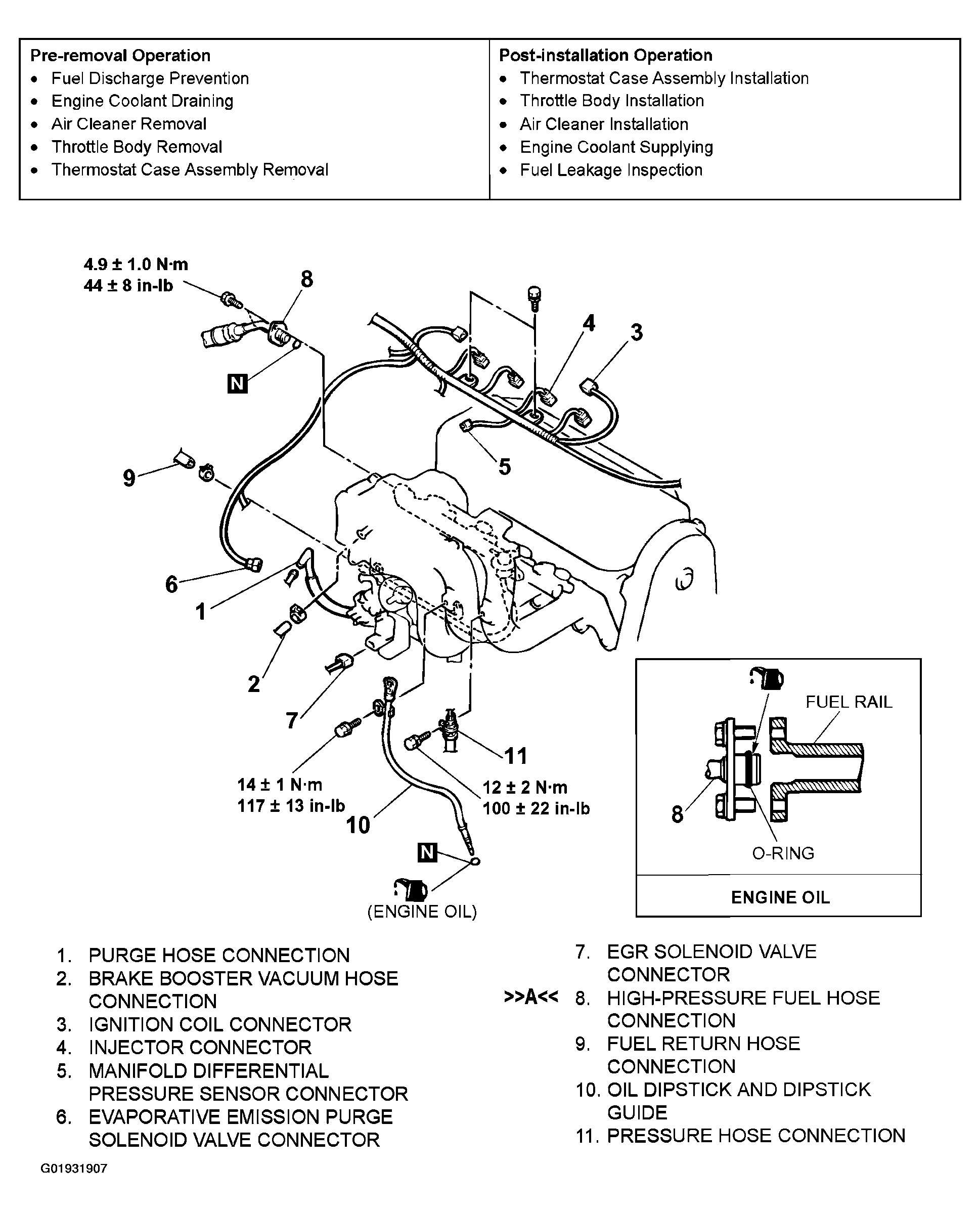

Fig 1: Intake Manifold Removal Procedure And Torque Specifications - 2.4L (1 Of 2)
G01931907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

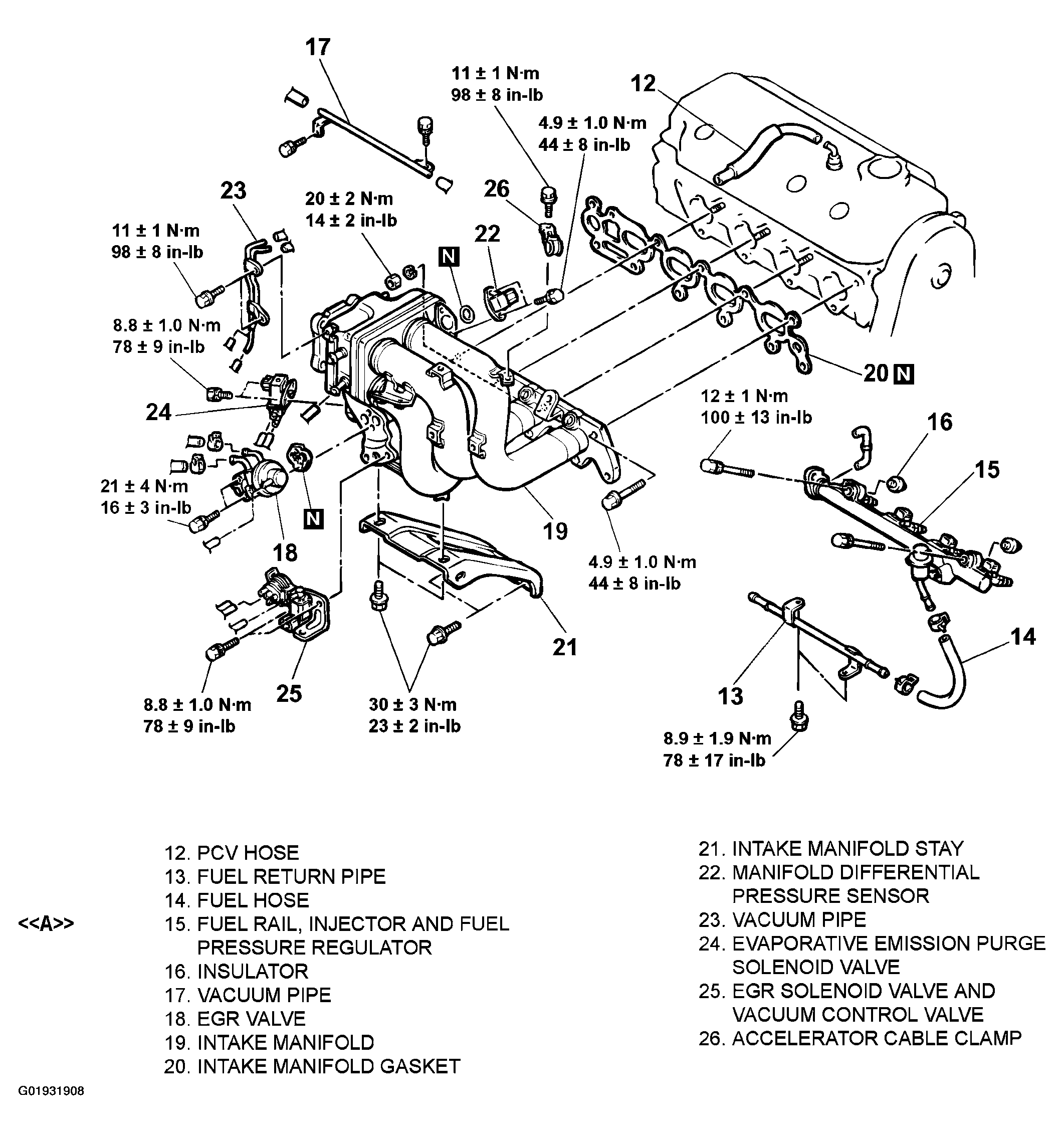

Fig 2: Intake Manifold Removal Procedure And Torque Specifications - 2.4L (2 Of 2)
G01931908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
