Removal And Installation: Notes

CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

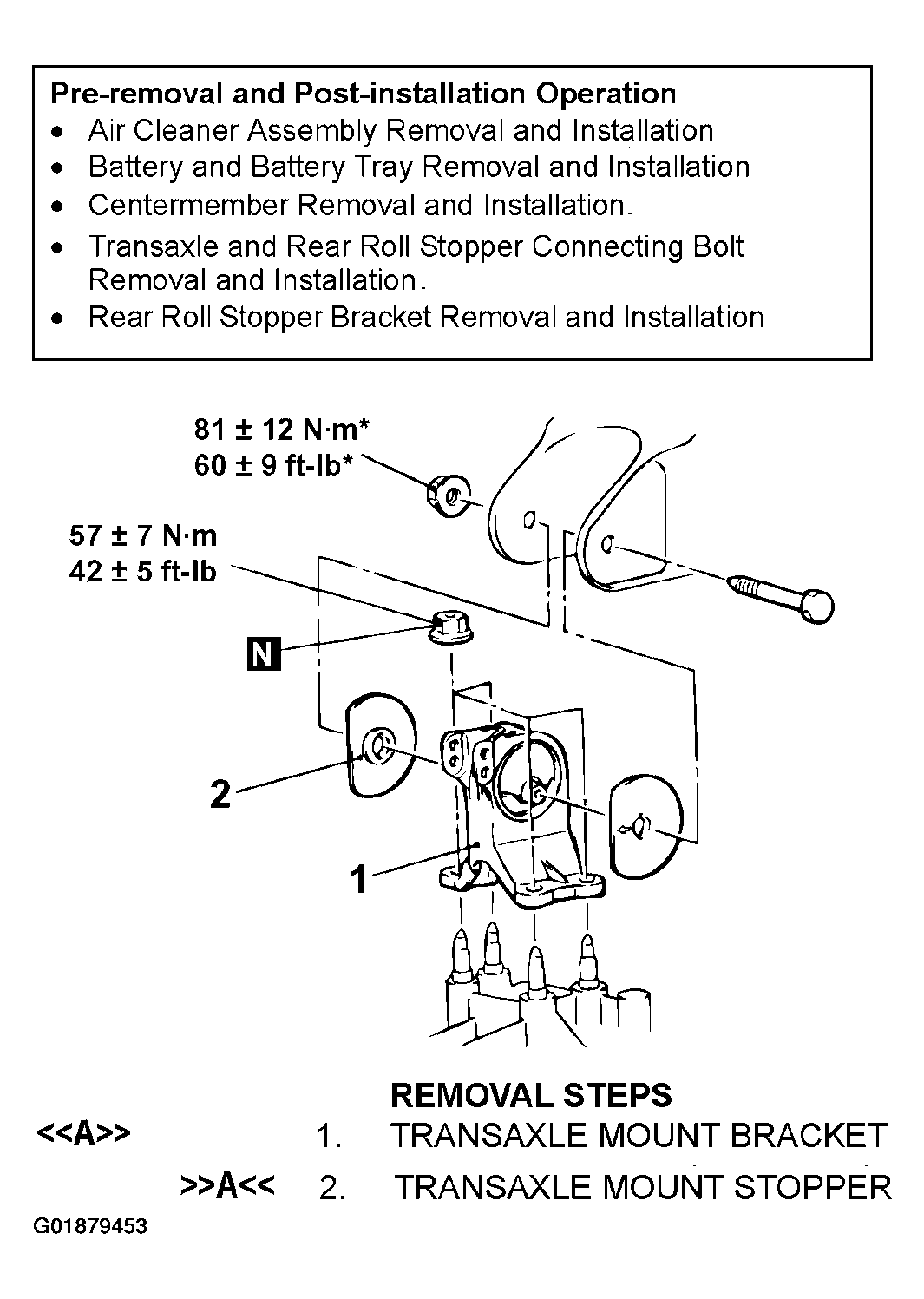

Fig 1: Identifying Removal Steps Of Transaxle Mounting
G01879453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
