DTC 26: Stoplight Switch System: Notes

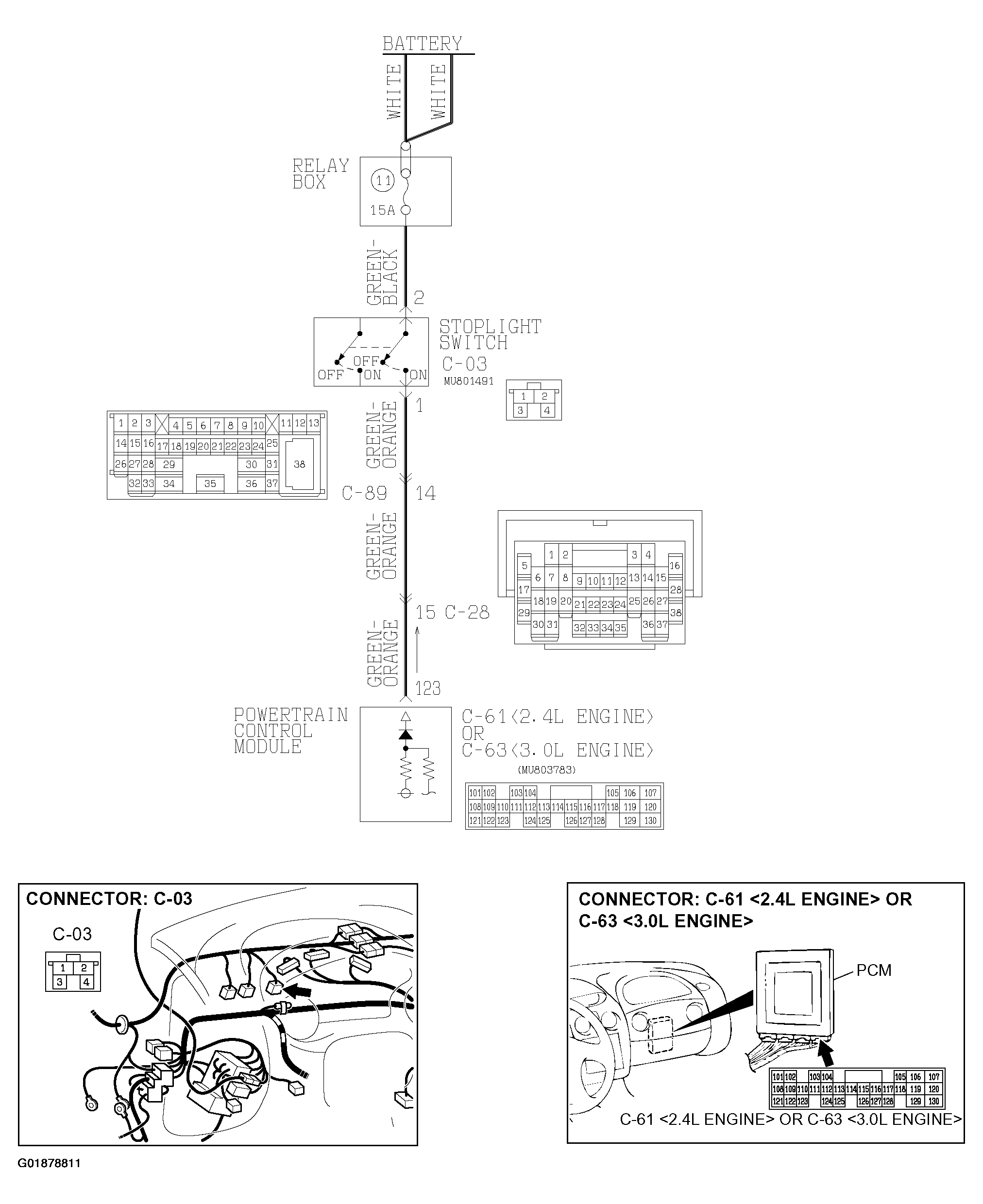

Fig 1: Stoplight Switch System Circuit (1 Of 2)
G01878811Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

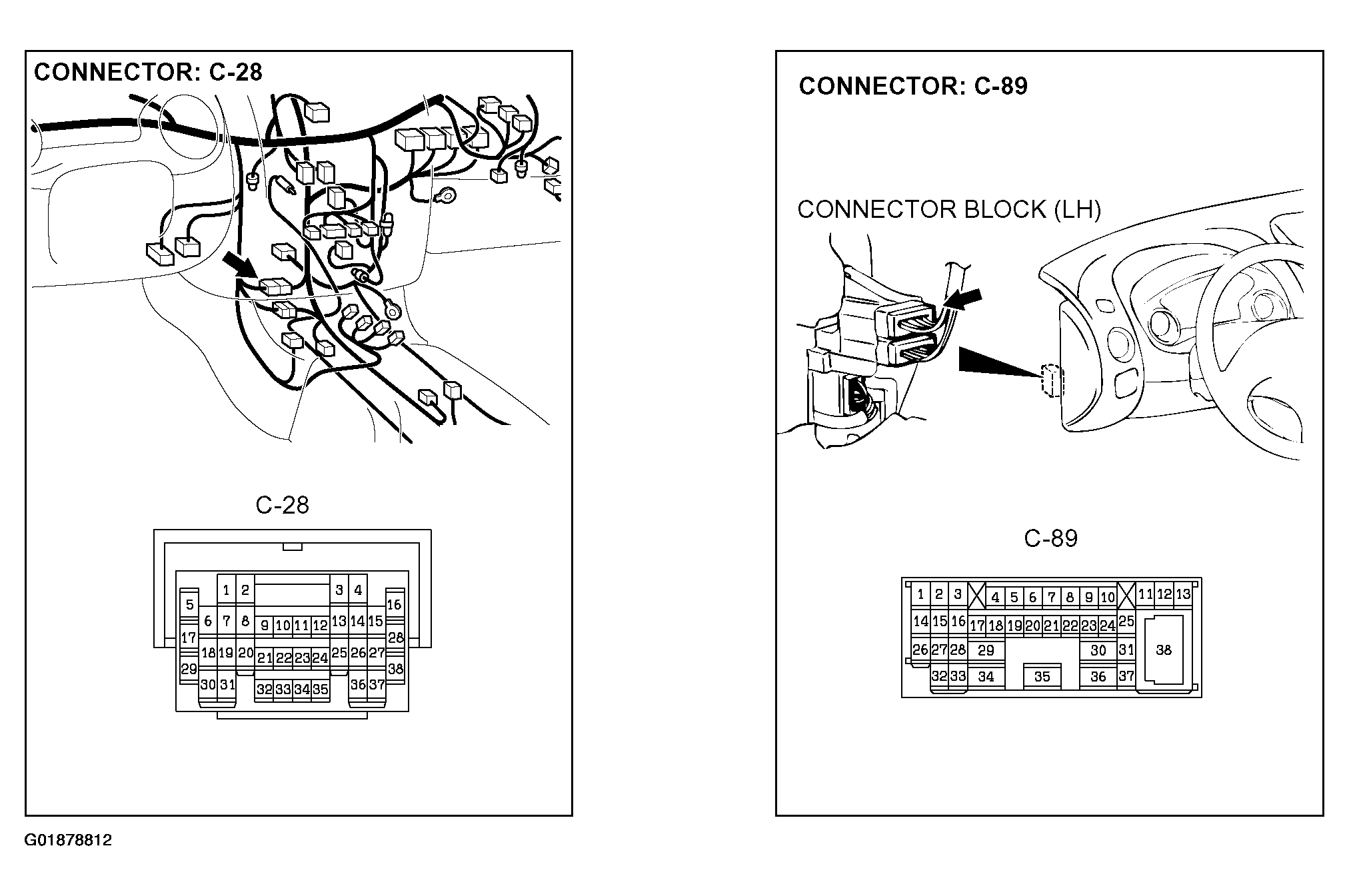

Fig 2: Stoplight Switch System Circuit (2 Of 2)
G01878812Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
