Removal And Installation: Notes

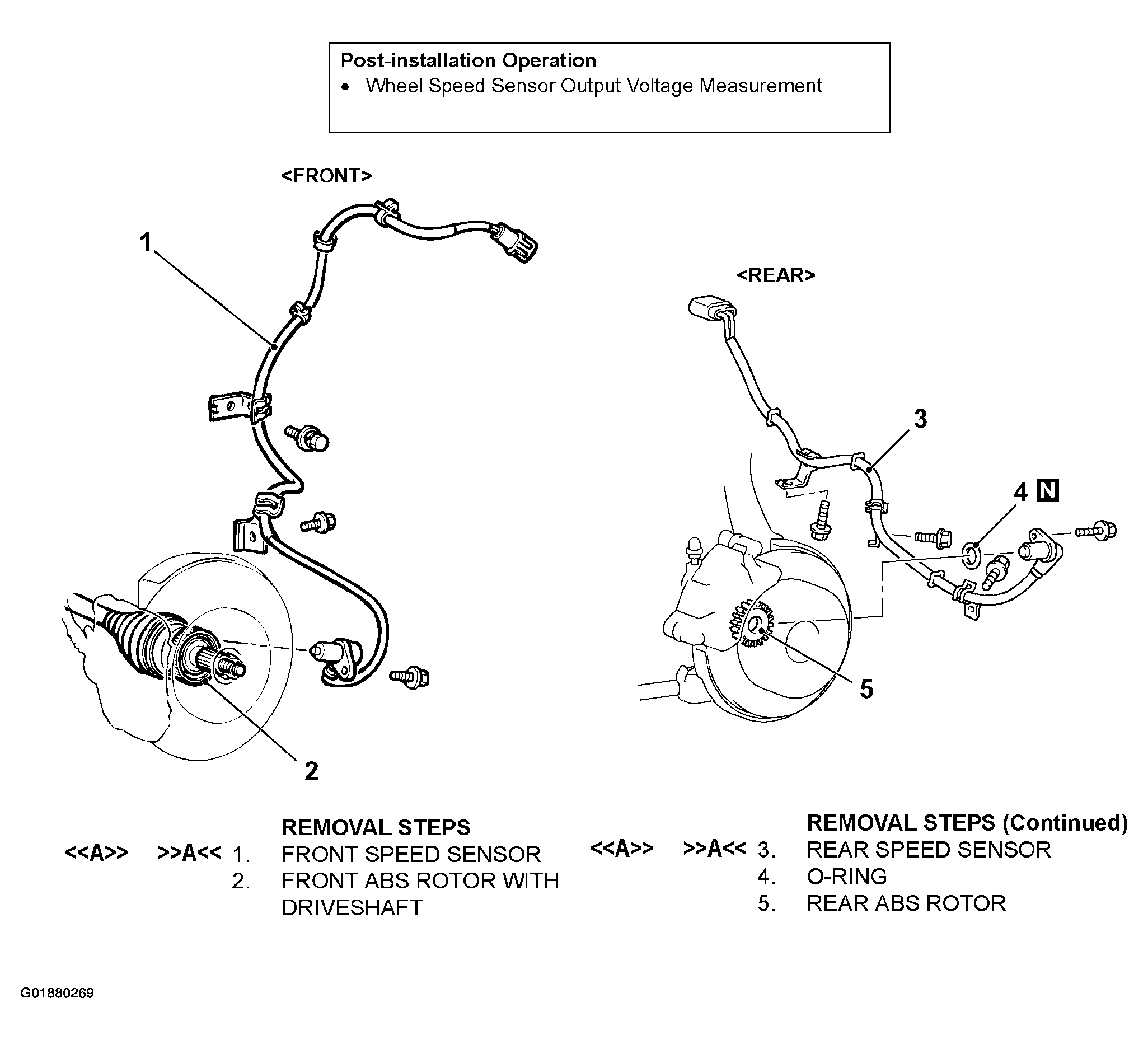

Fig 1: Removing & Installing Wheel Speed Sensor
G01880269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
