Service Specifications

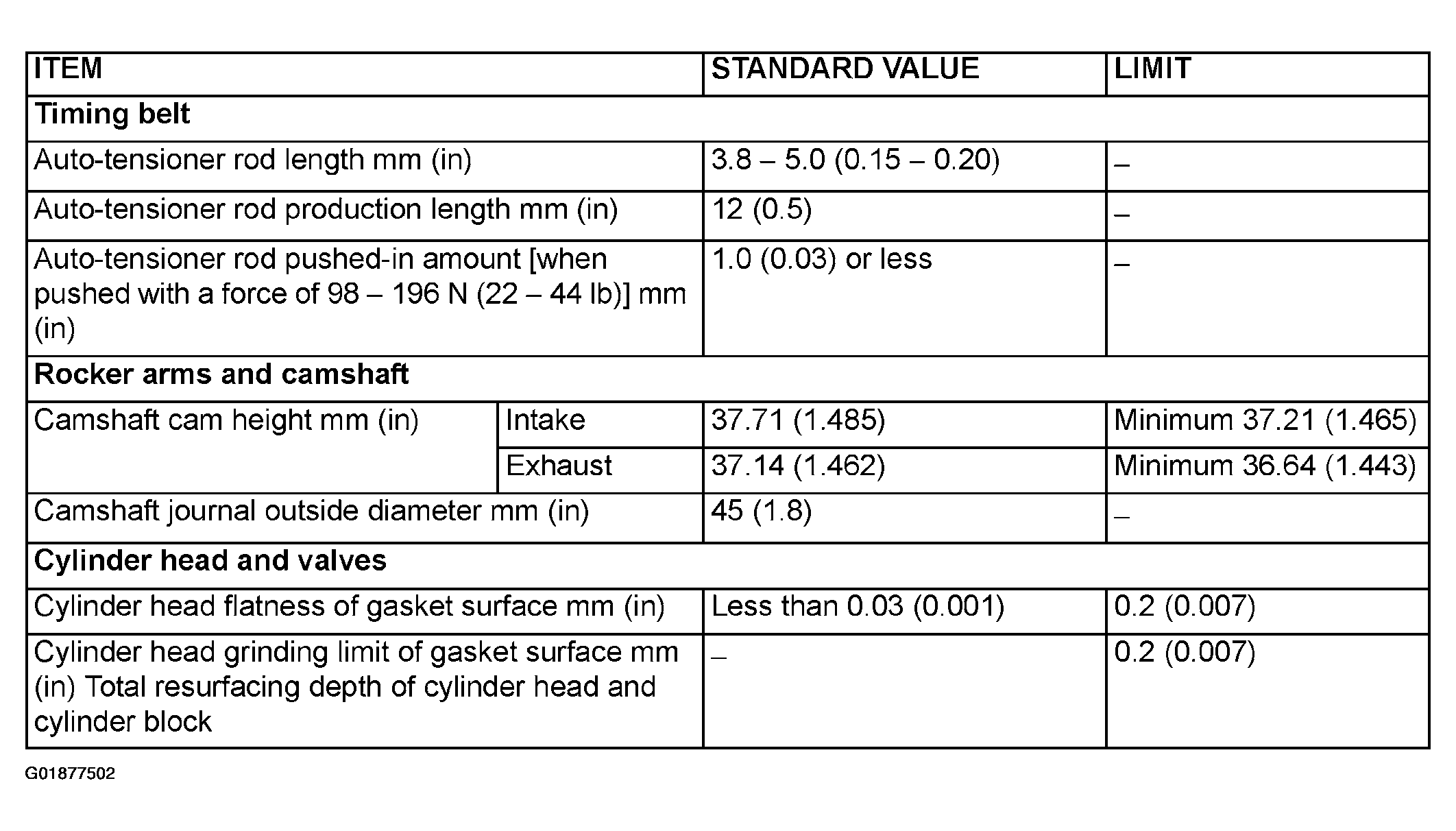

Fig 1: Service Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

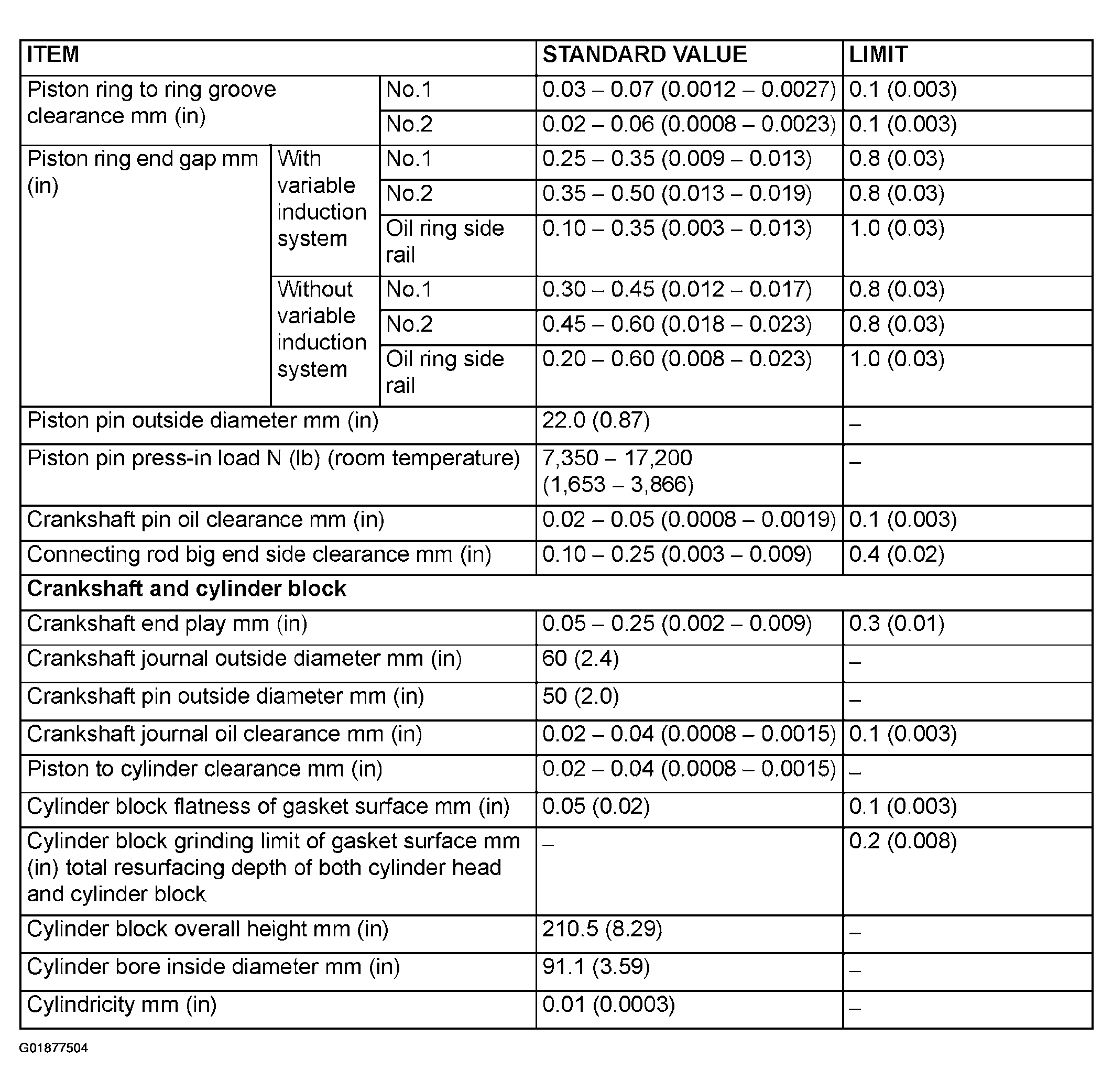

Fig 2: Service Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

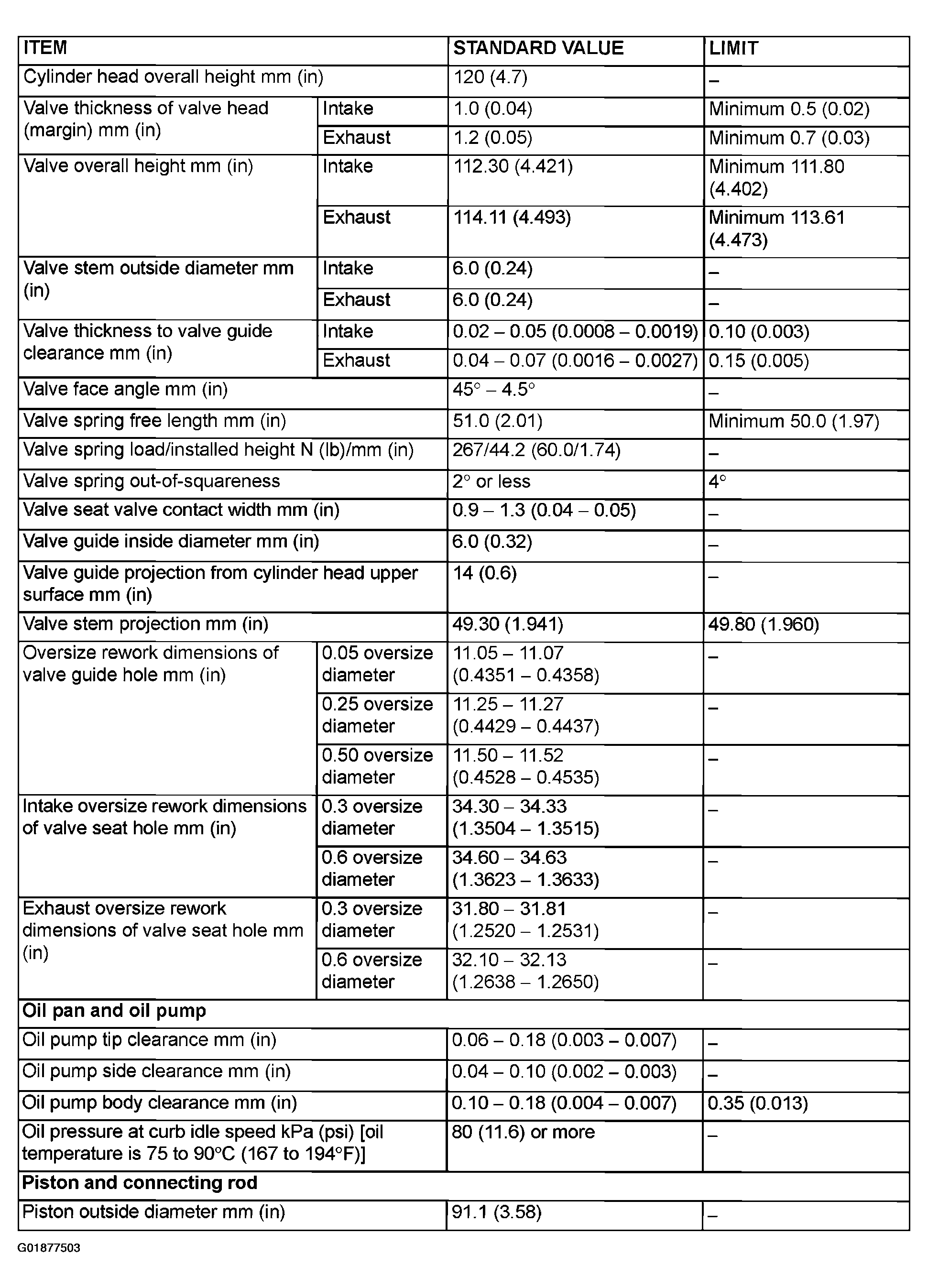

Fig 3: Service Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
