Removal And Installation: Notes

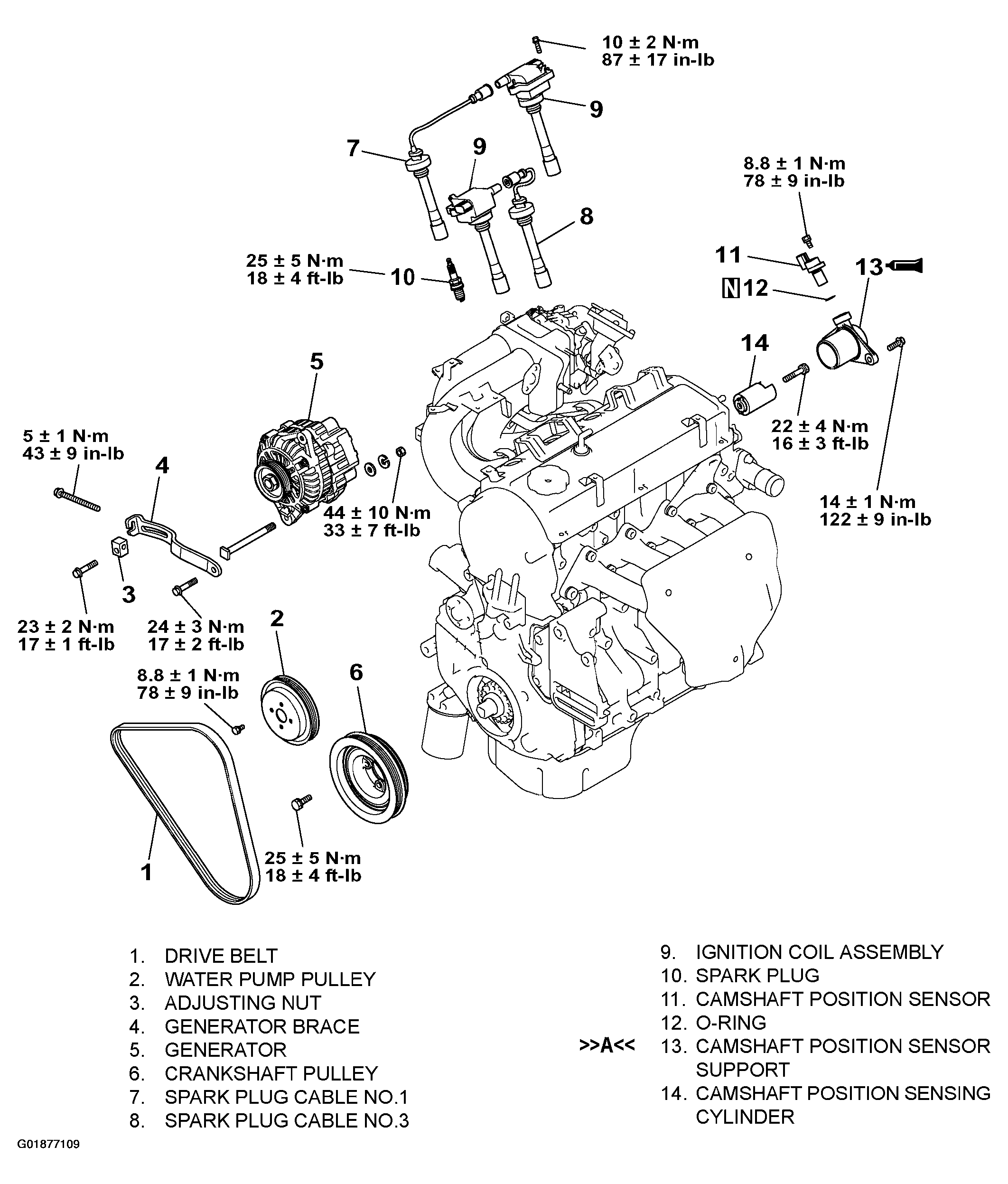

Fig 1: Exploded View Of Generator And Ignition System With Torque Specification
G01877109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
