Removal And Installation: Notes

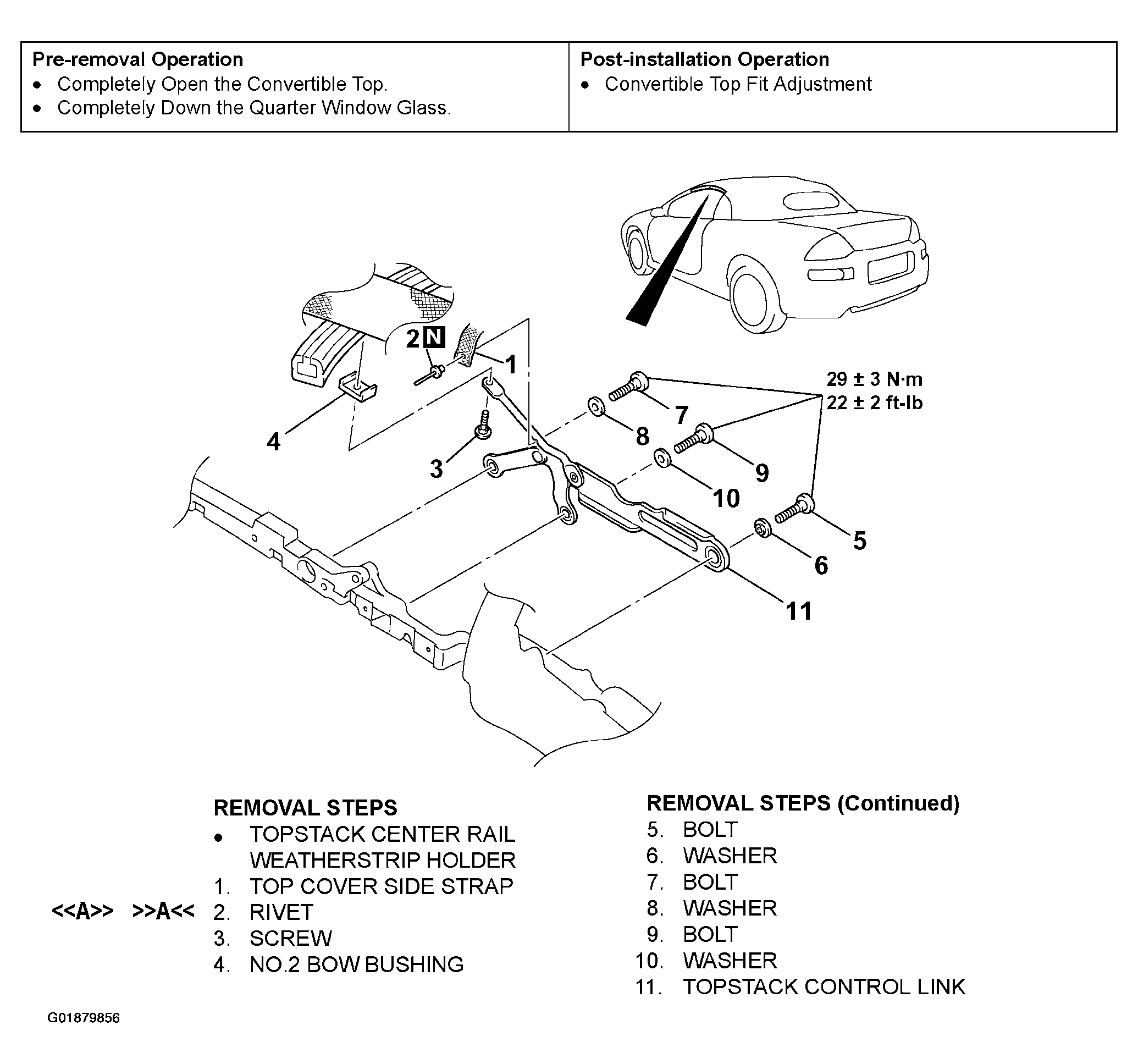

Fig 1: Identifying Removal Steps Of Topstack Control Link Assembly
G01879856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
