Function Diagnosis

The table below shows the service data and their normal condition, which are displayed during the "FUNCTION DIAGNOSIS." The row "Normal conditions" shows values, which are shown when each operation is made.

• WIPER

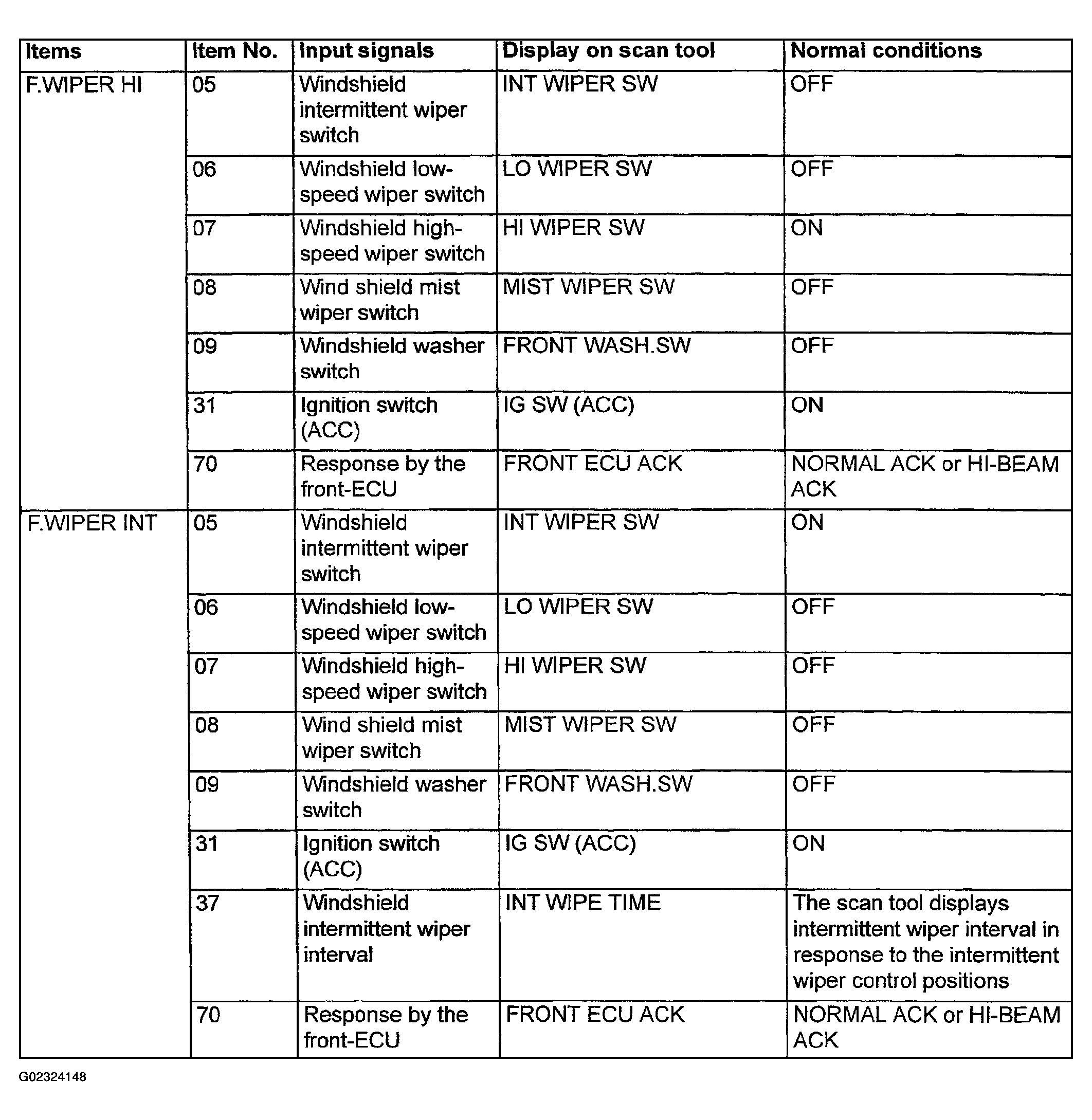

  Fig 1: Wiper Function Diagnosis (1 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

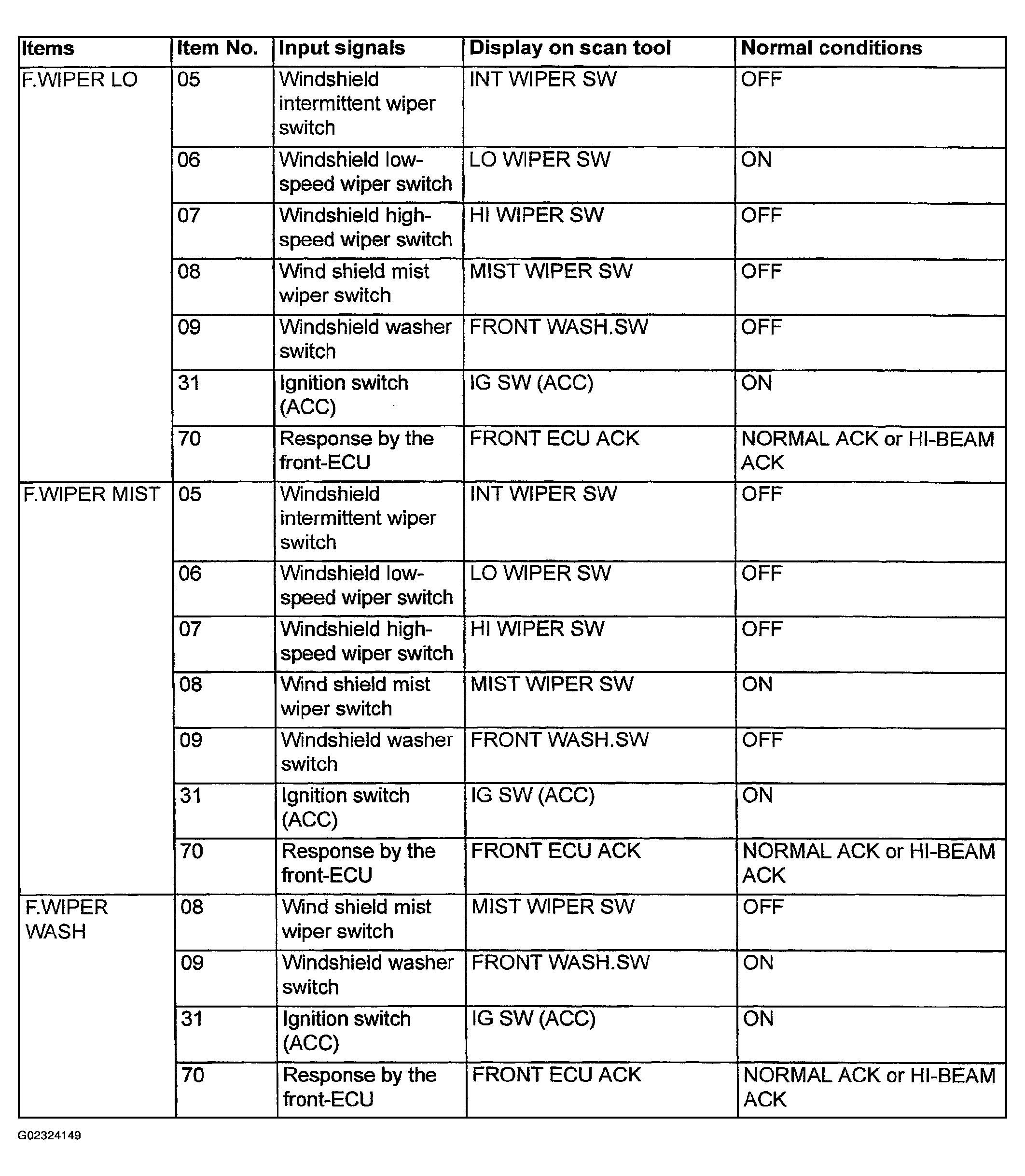

  Fig 2: Wiper Function Diagnosis (2 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• REAR WIPER

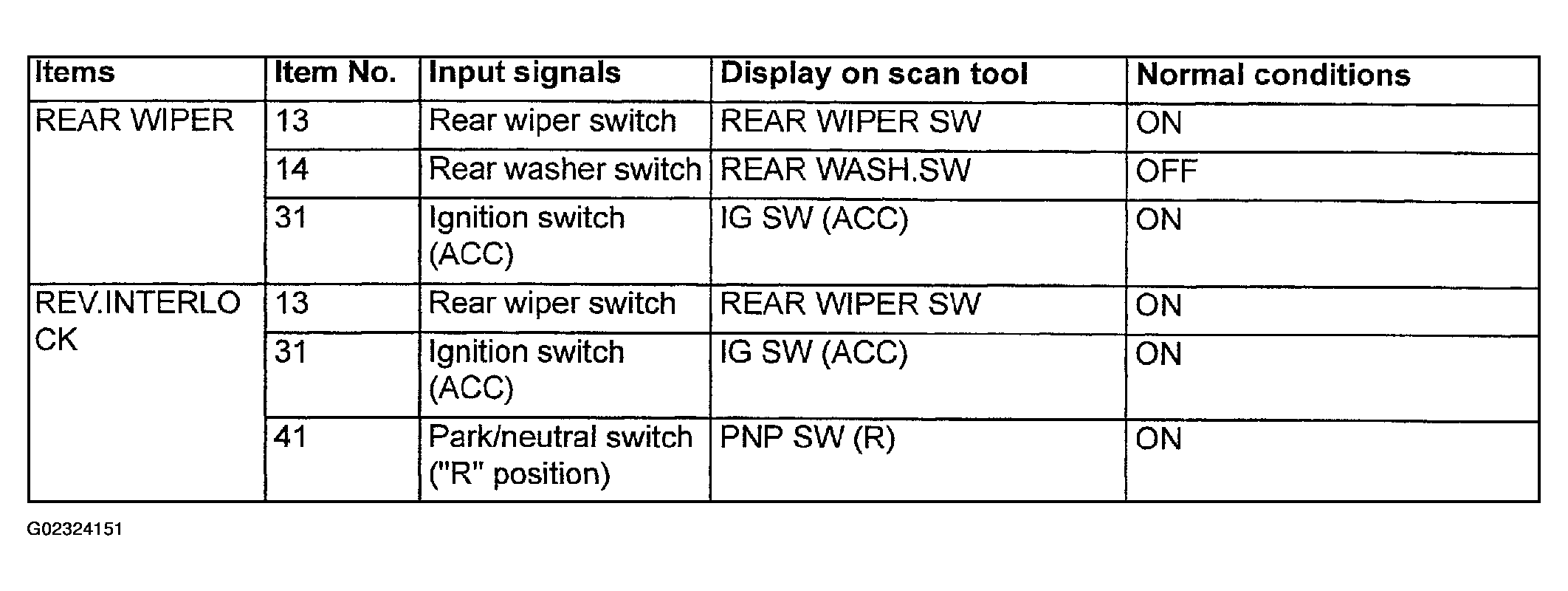

  Fig 3: Wiper Function Diagnosis (1 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

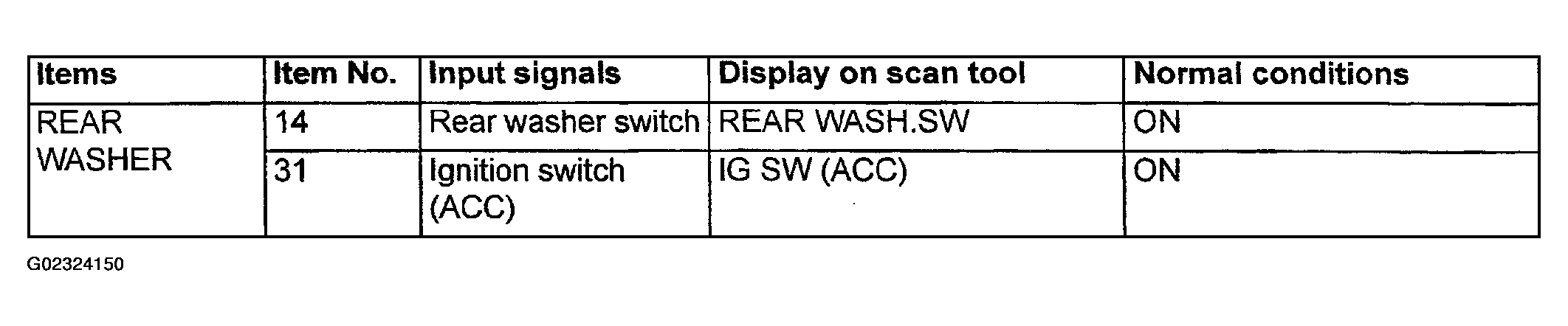

  Fig 4: Wiper Function Diagnosis (2 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• LIGHTING
  NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However, the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH".
  NOTE: For checking item "HI (High-beam)", the scan tool displays "OFF" on the item No.2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.

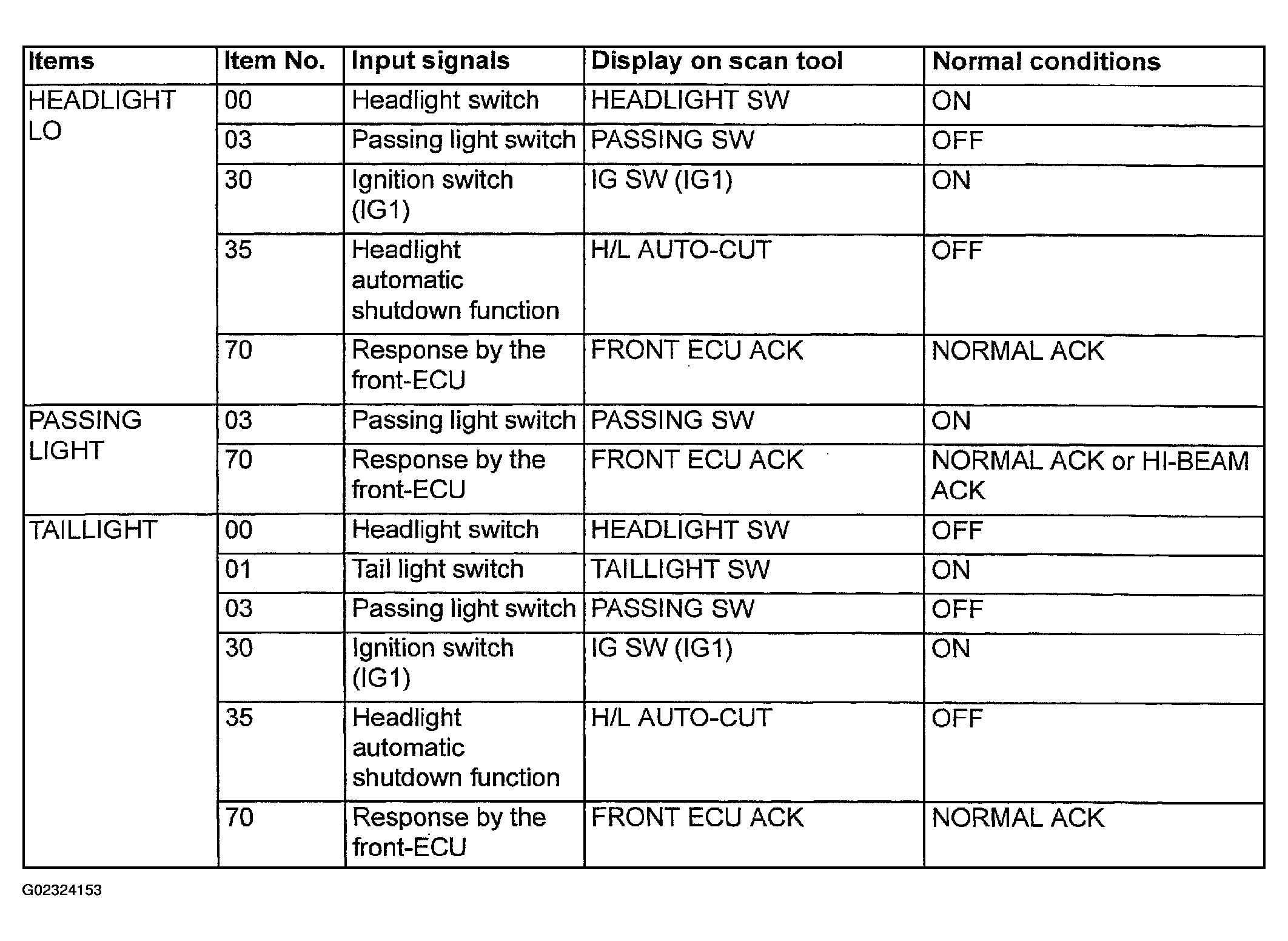

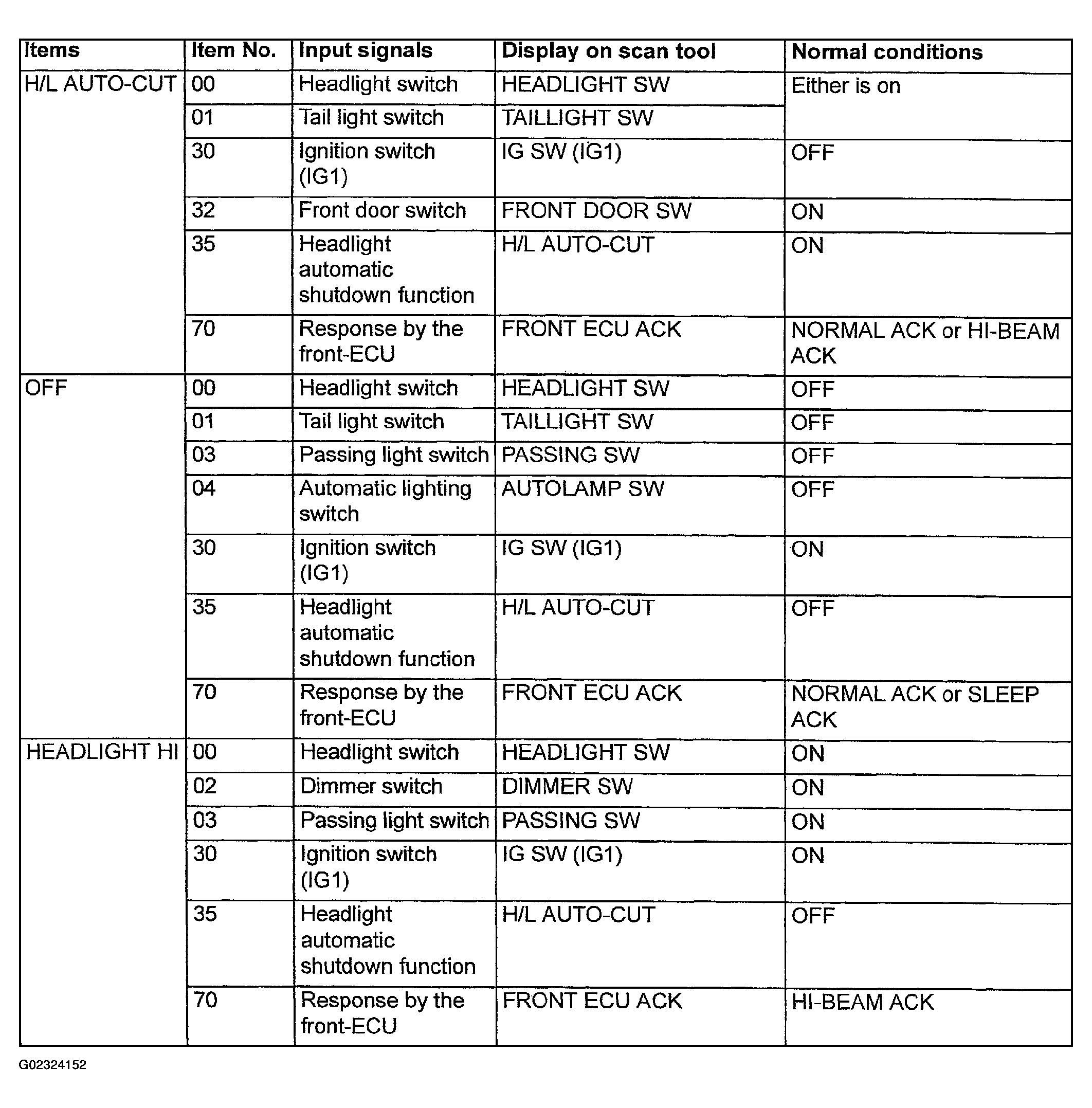

  Fig 5: Lighting Function Diagnosis (1 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  Fig 6: Lighting Function Diagnosis (2 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• TURN SIGNAL

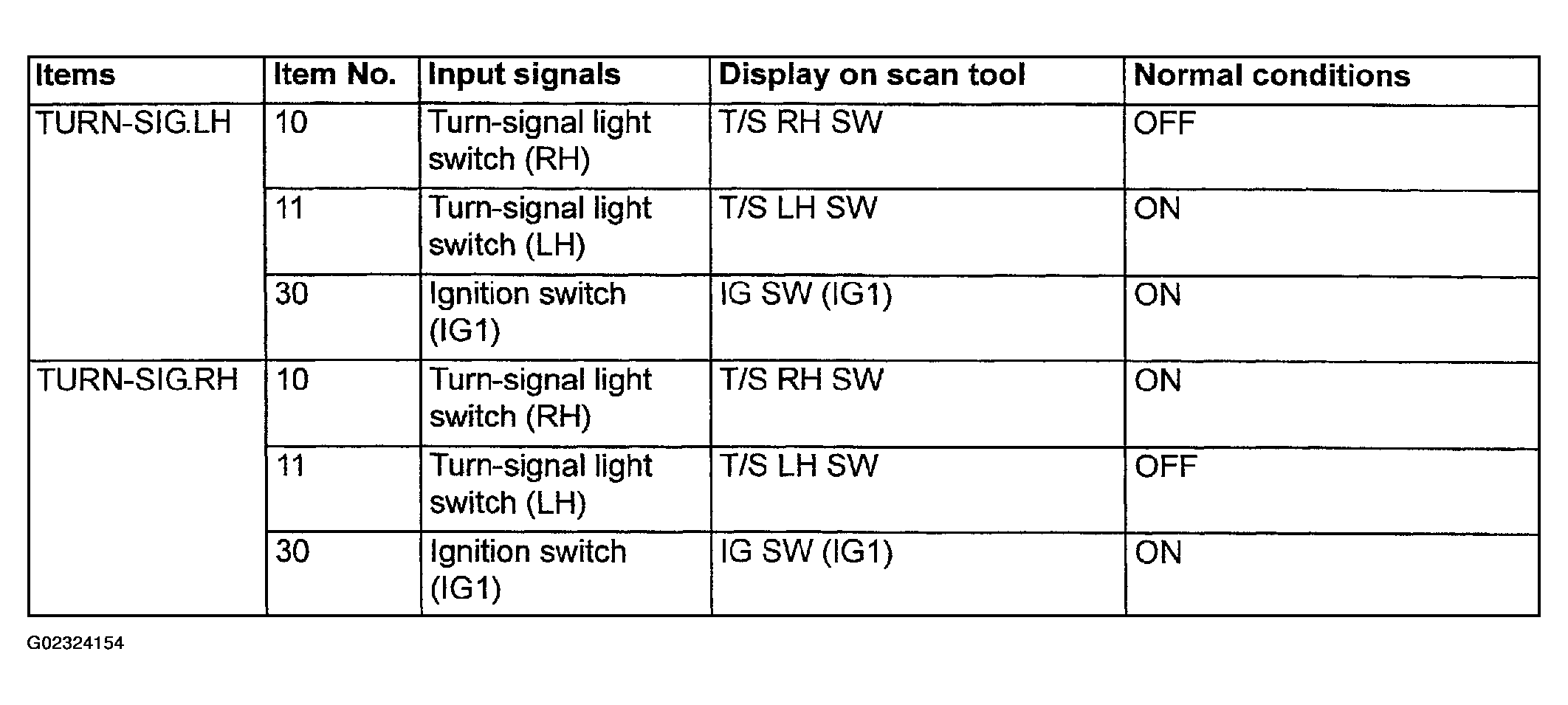

  Fig 7: Turn Signal Function Diagnosis

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• BUZZER
  NOTE: The headlight automatic shutdown function works in approximately one second after the lighting monitor tone alarm starts sounding, and then the tone alarm ceases sounding.

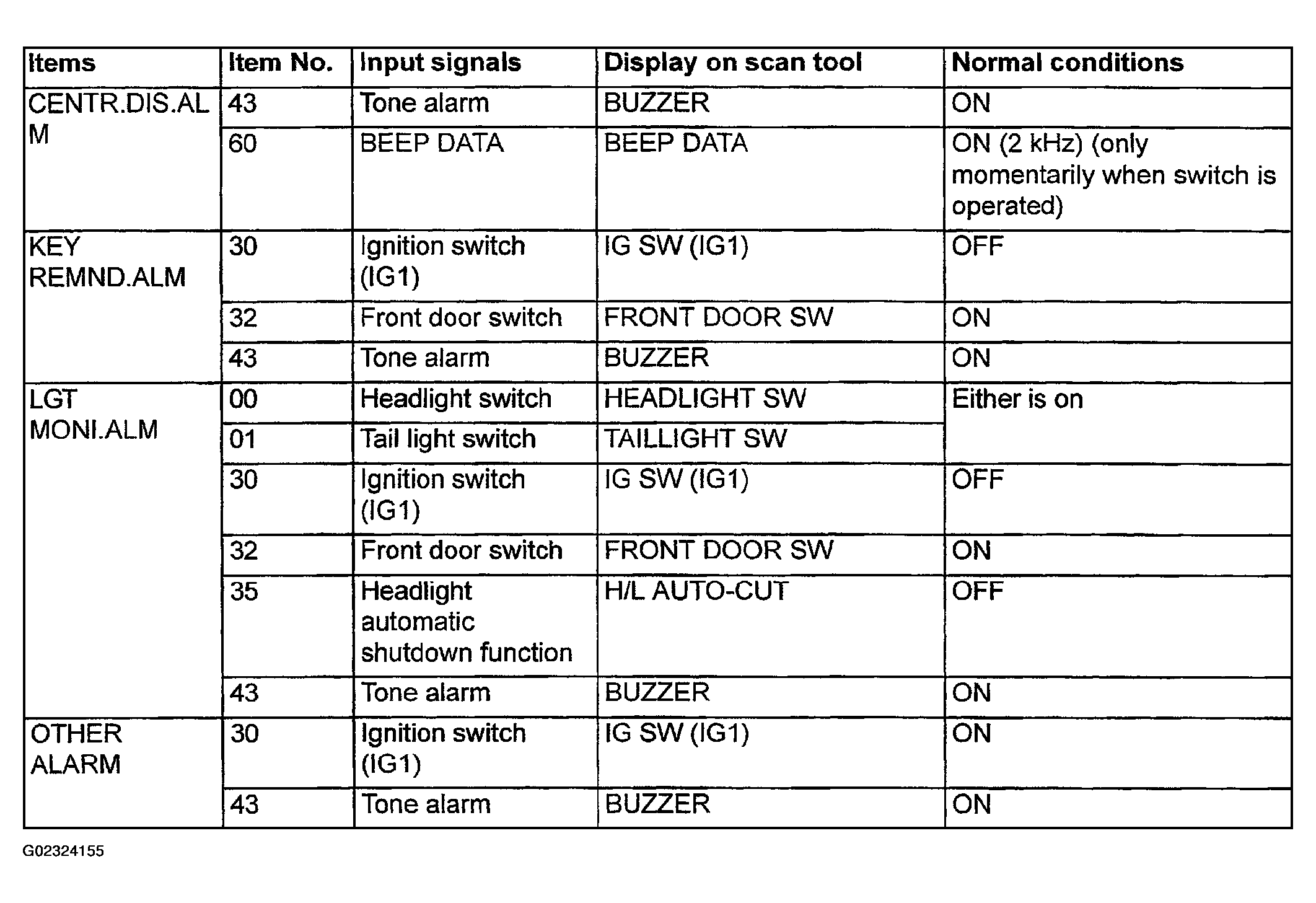

  Fig 8: Buzzer Function Diagnosis

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• SUNROOF

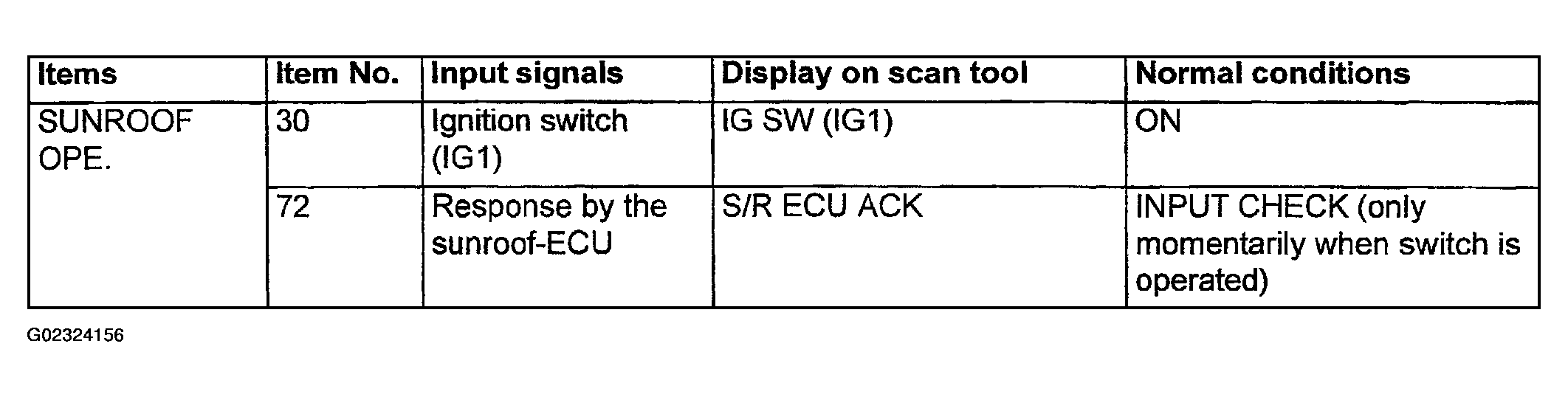

  Fig 9: Sunroof Function Diagnosis

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
• THEFT-ALARM

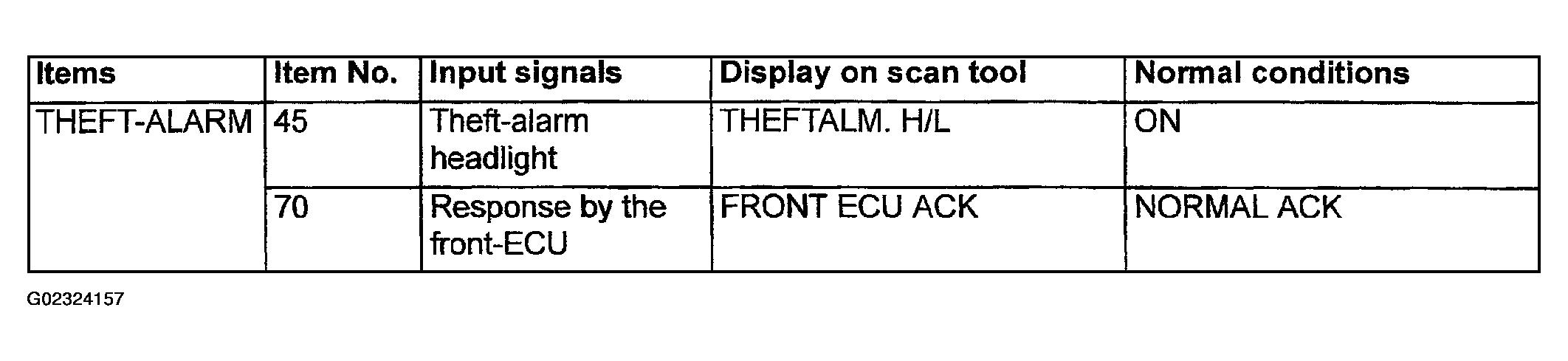

  Fig 10: Theft Alarm Function Diagnosis

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
