Column Switch

Fig 1: Identifying Column Switch Connector
G02329043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

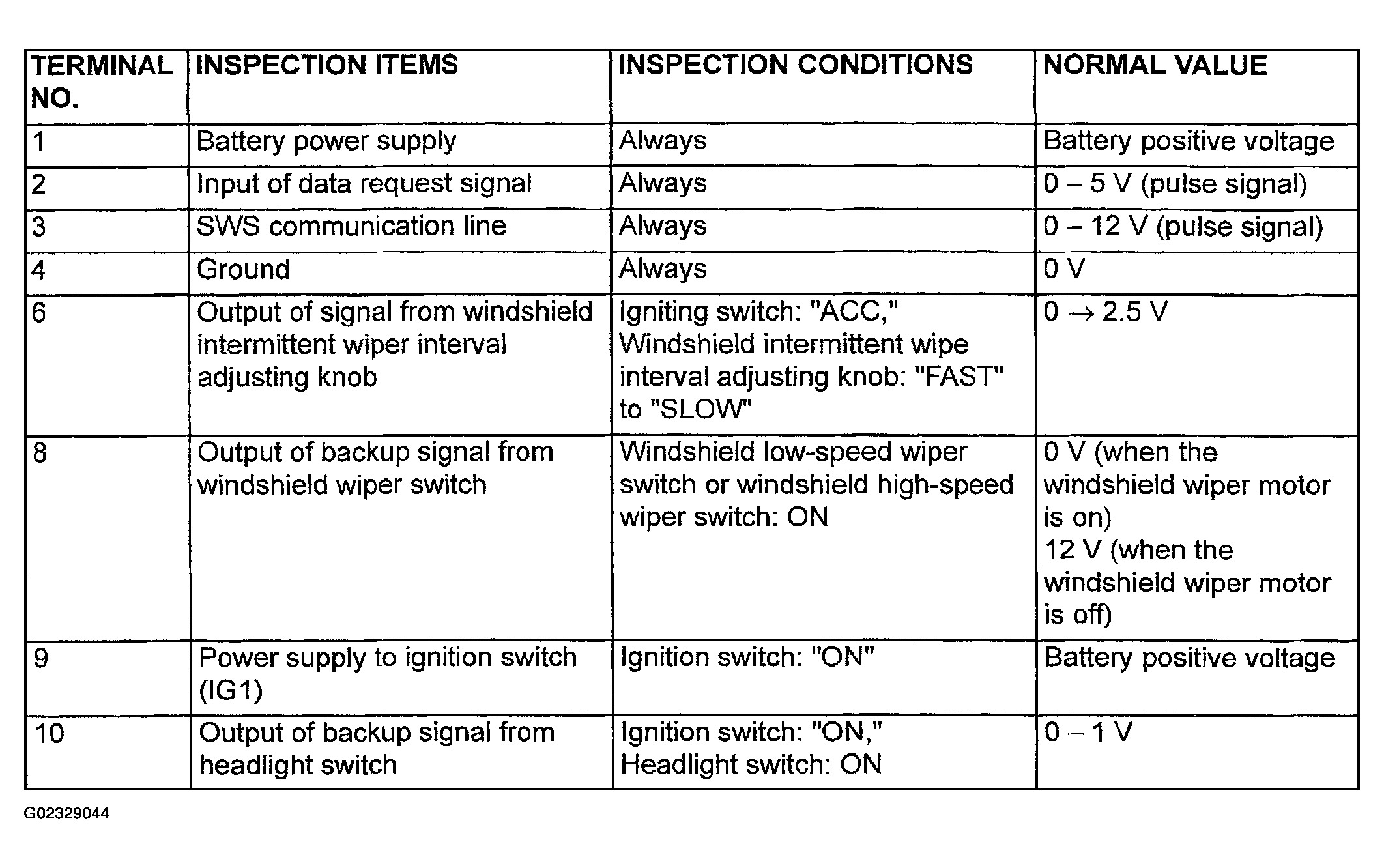

Fig 2: Identifying Column Switch Connector Terminal Values
G02329044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
