Disassembly And Reassembly: Notes

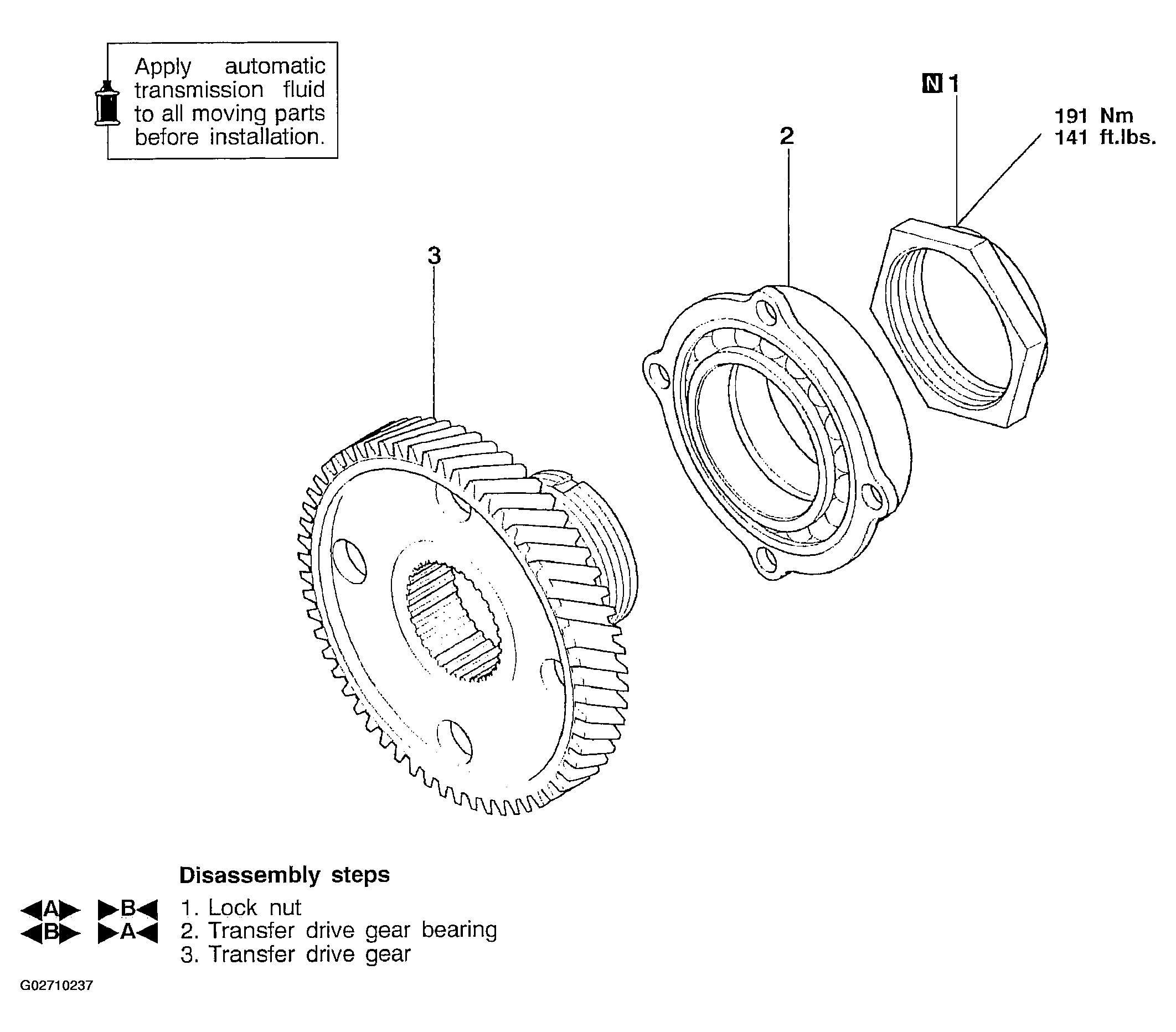

Fig 1: Exploded View Of Transfer Drive Gear Components (If Equipped)
G02710237Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
