Disassembly And Reassembly: Notes

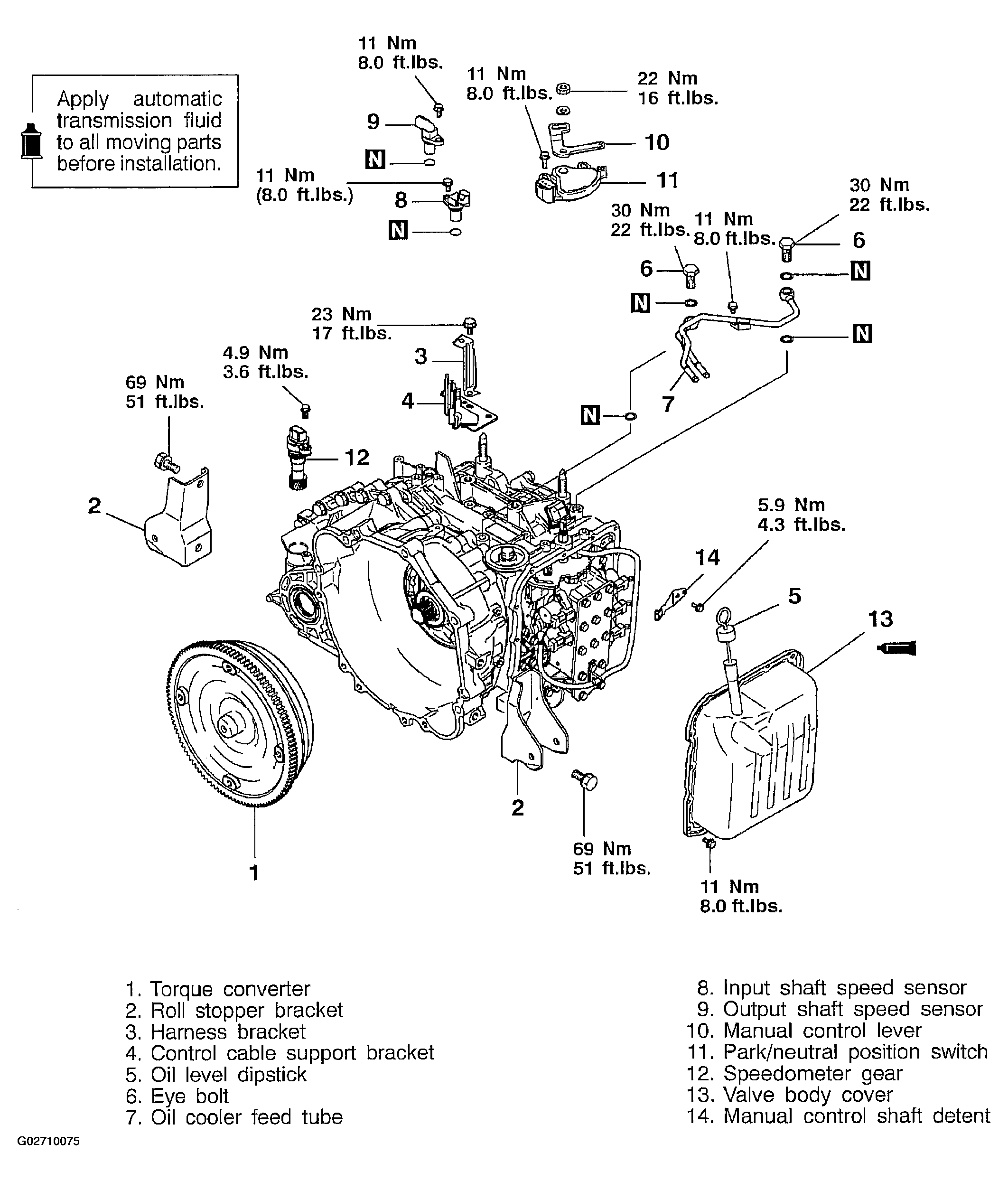

Fig 1: Exploded View Of Transaxle Components (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

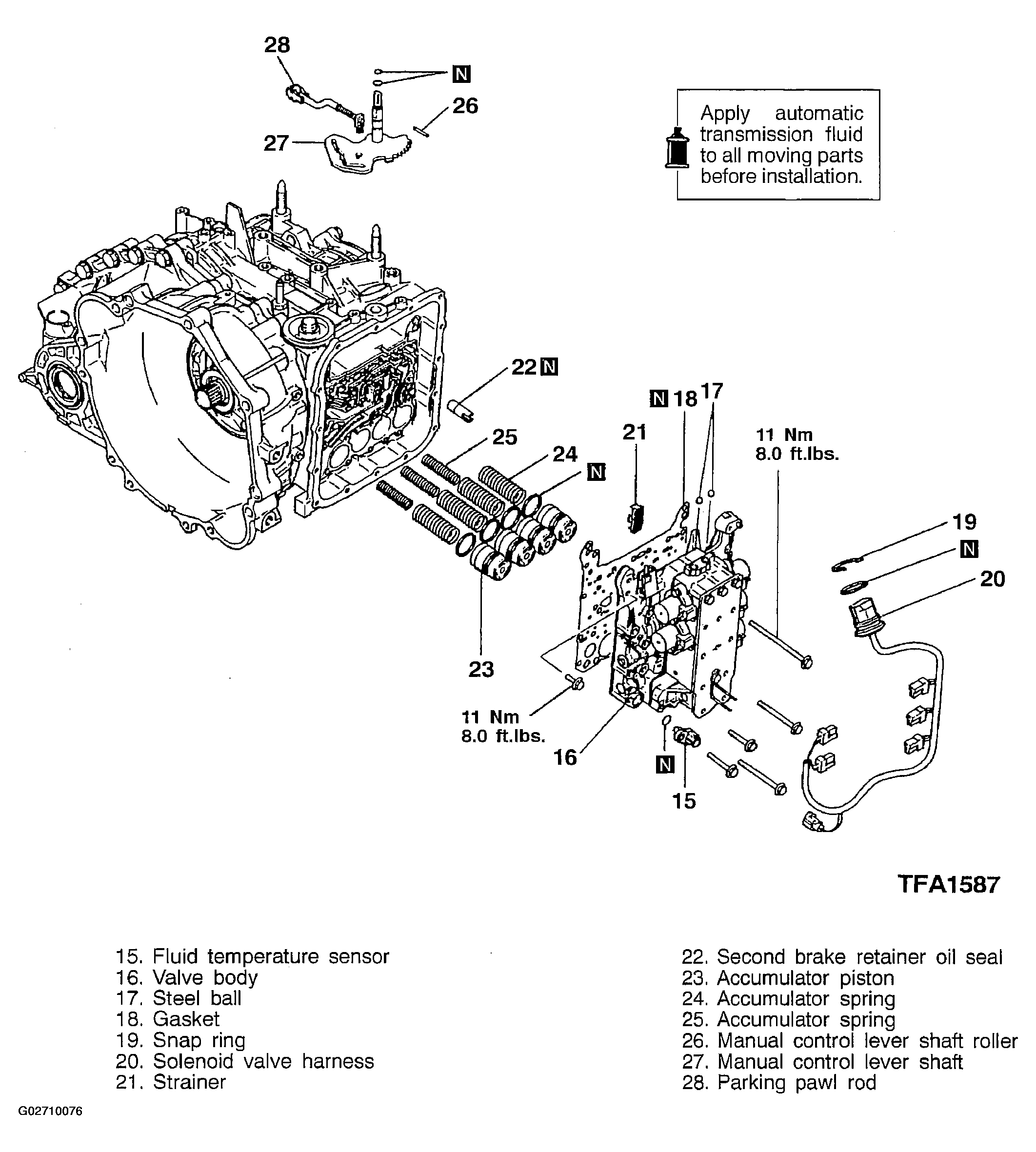

Fig 2: Exploded View Of Transaxle Components (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

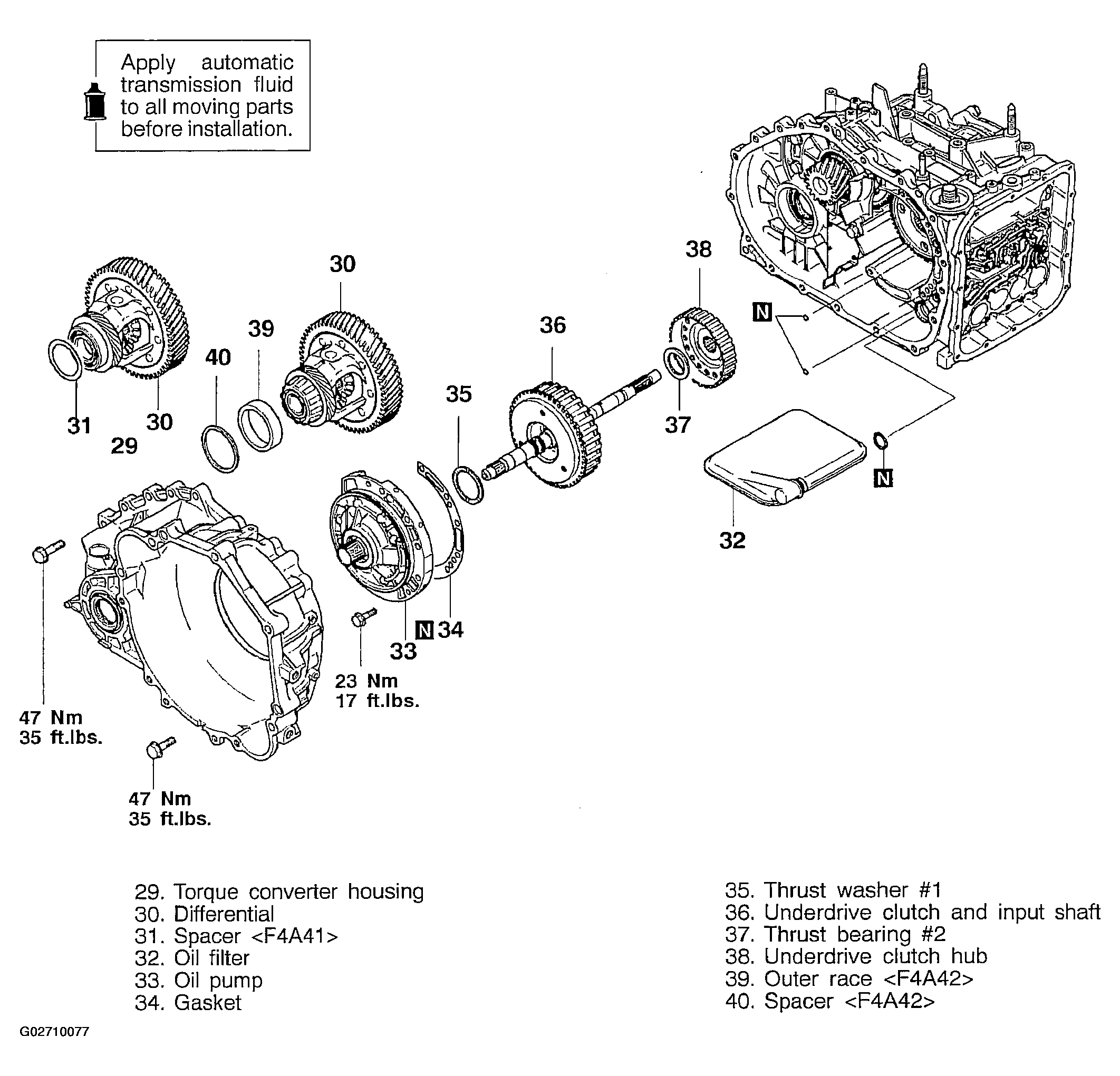

Fig 3: Exploded View Of Transaxle Components (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

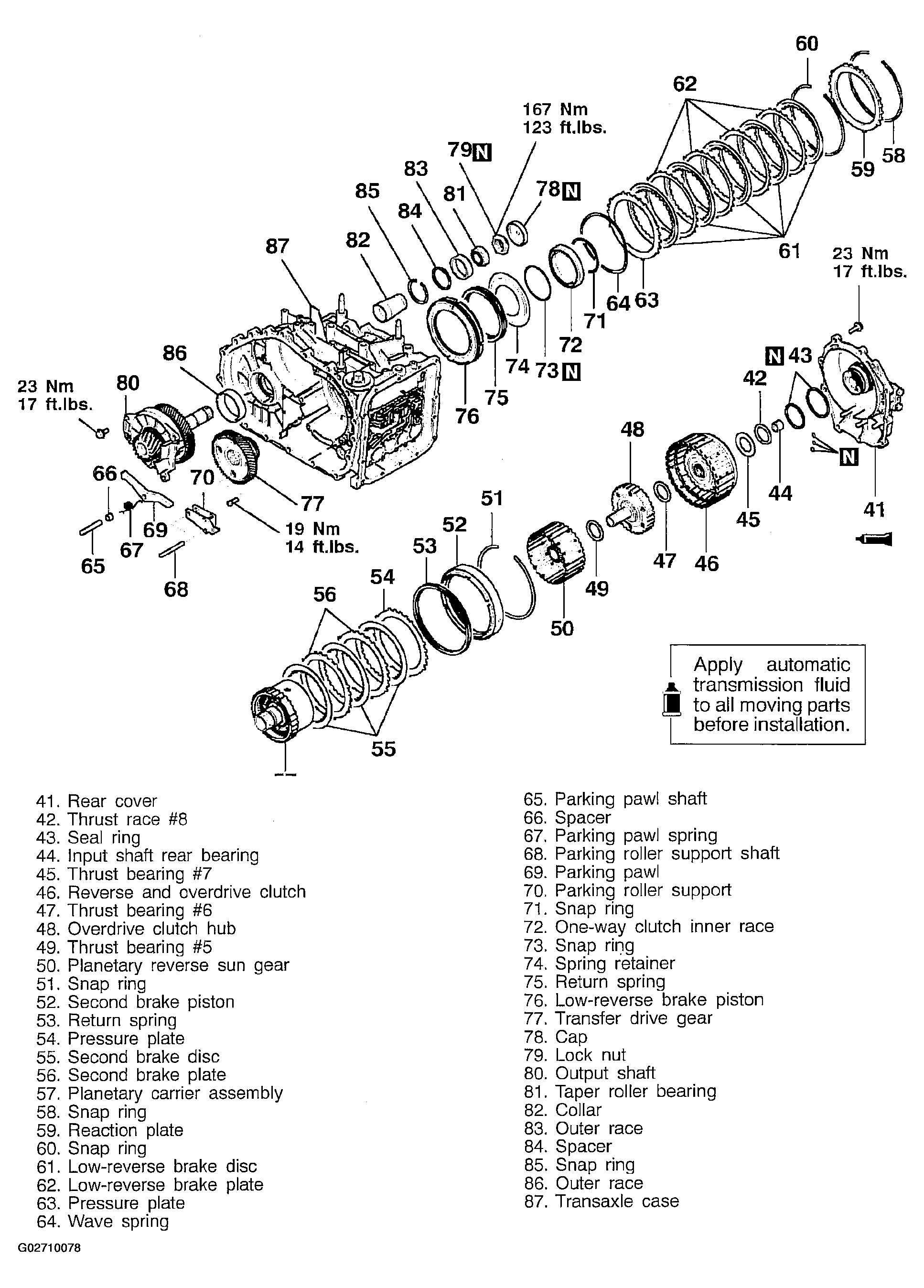

Fig 4: Exploded View Of Transaxle Components (4 Of 4)
