Disassembly And Reassembly: Notes

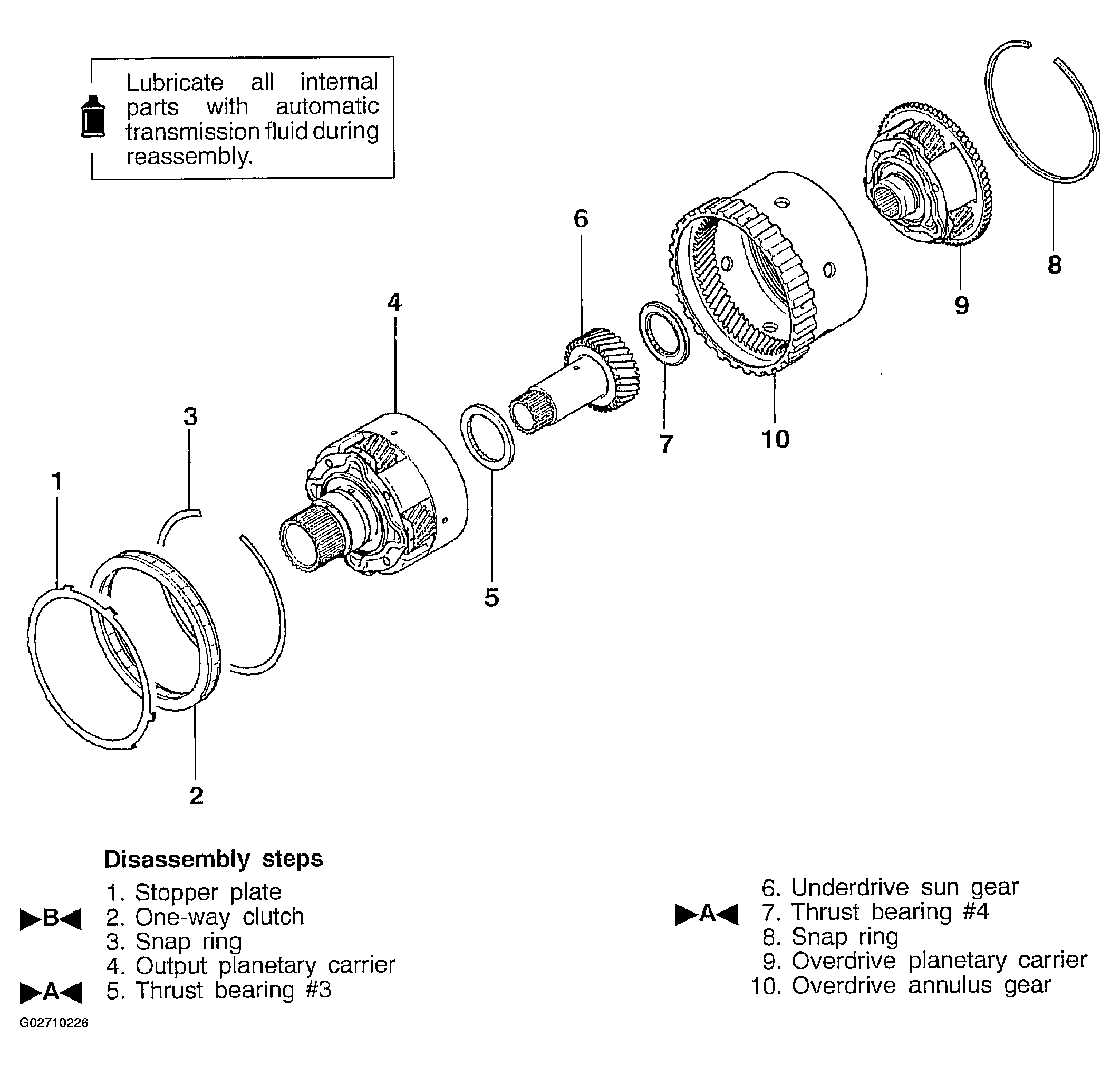

Fig 1: Exploded View Of Planetary Carrier Assembly Components
G02710226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
