Fastener Tightening Specifications

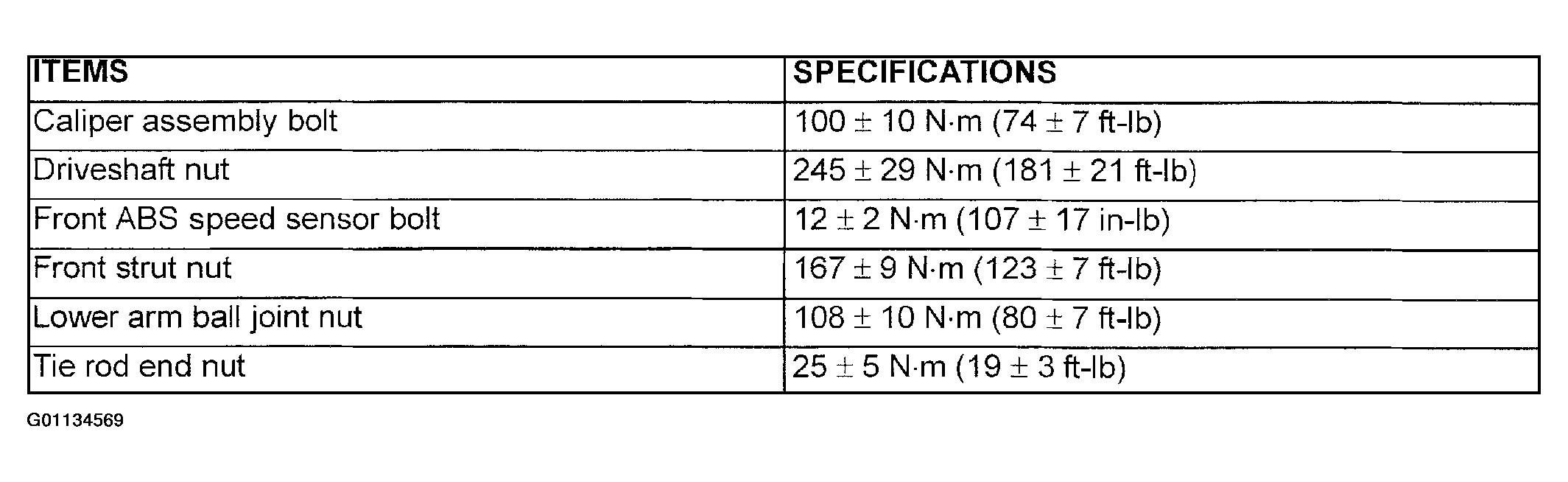

Fig 1: Torque Specifications Table (Front Axle & Hub)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

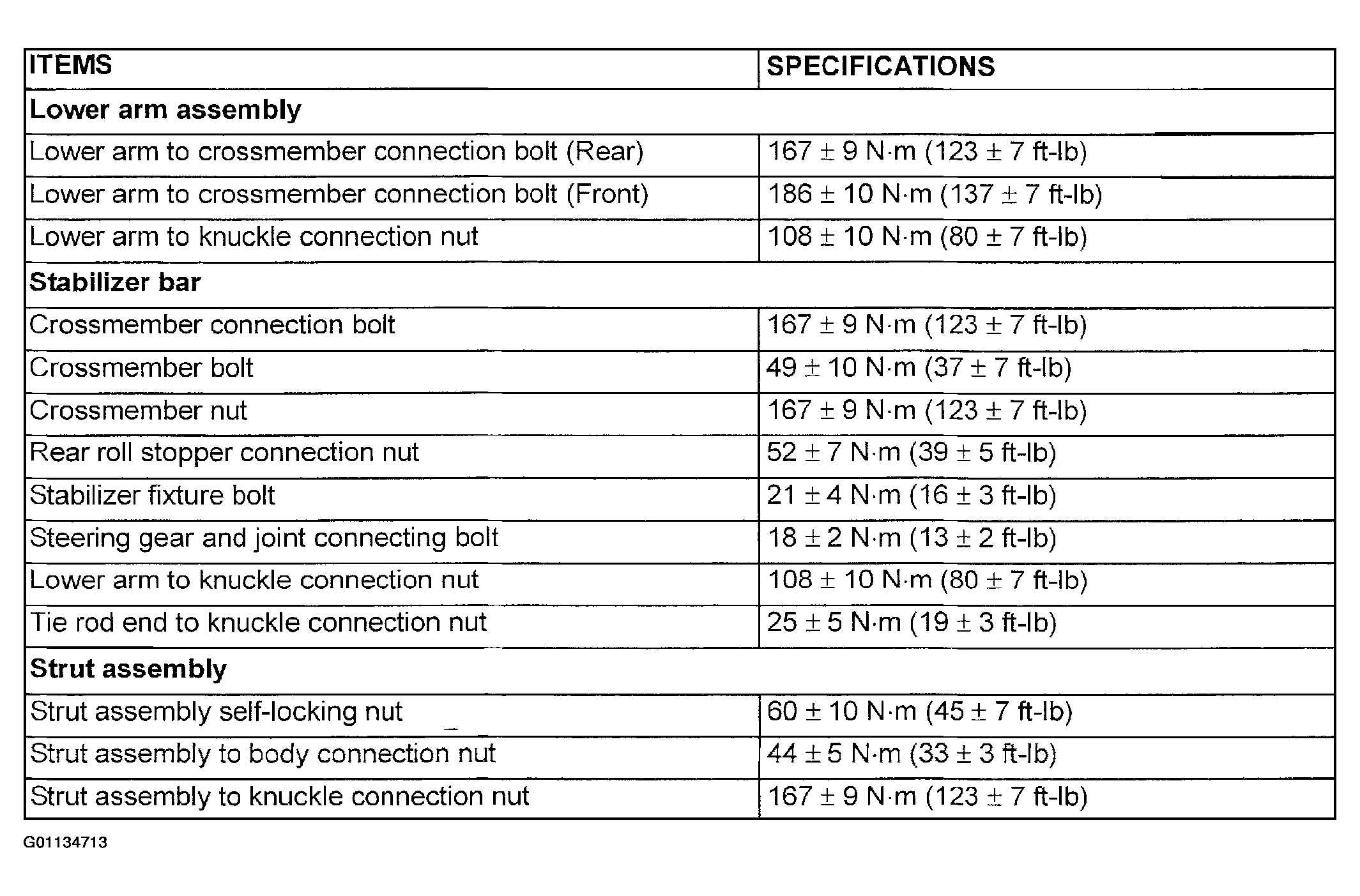

Fig 2: Torque Specifications Table (Front Suspension)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
