DTC P0506: Idle Control System Rpm Lower Than Expected: Notes

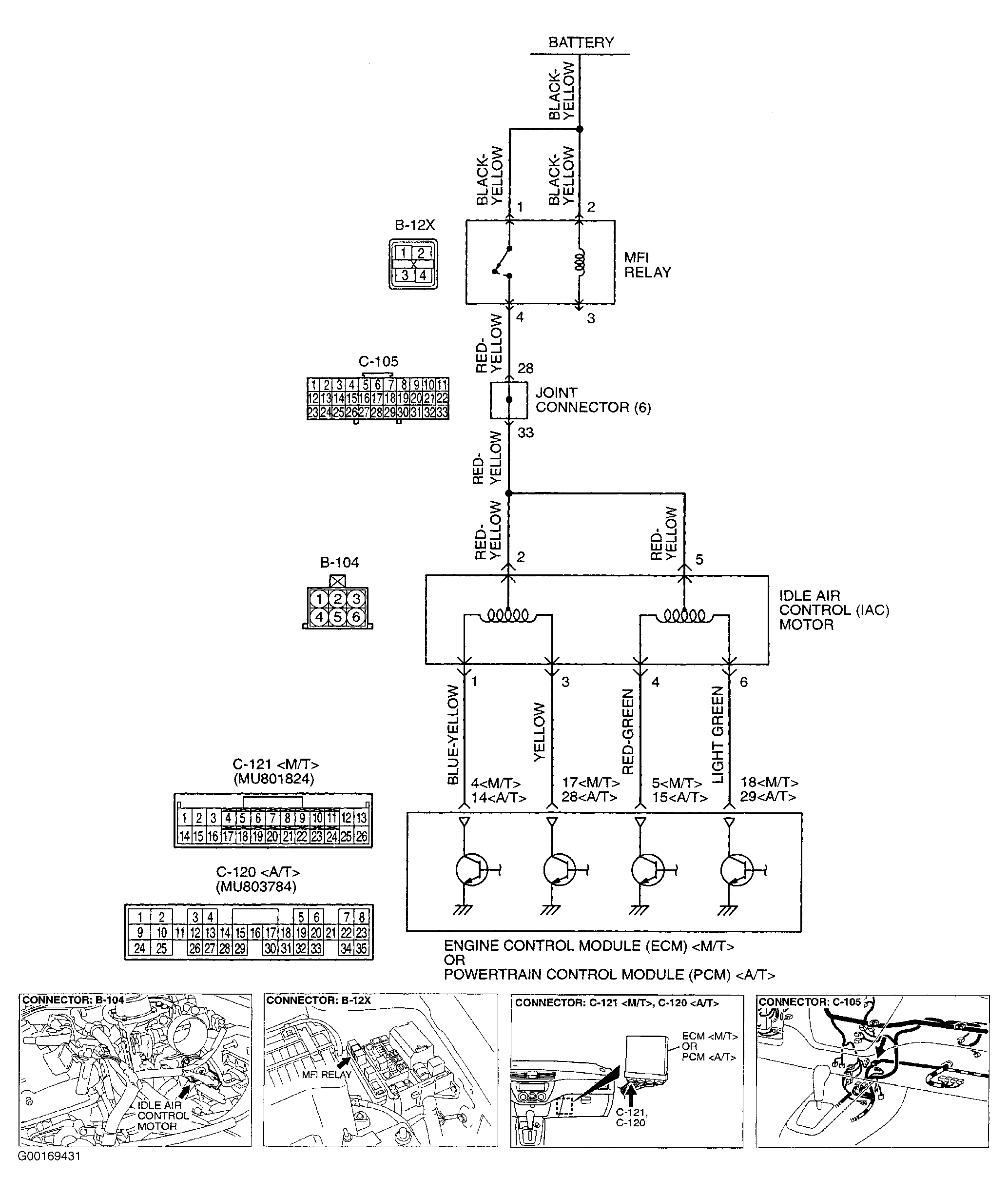

Fig 1: Identifying Idle Air Control Motor Circuit, Component & Connector Location
G00169431Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
