Heated Glass Element: Service and Repair

PRINTED-HEATER LINE REPAIR

REQUIRED MATERIALS
- Thinner
- Lead-free gasoline
- Tape
- Fine brush
- Conductive paint

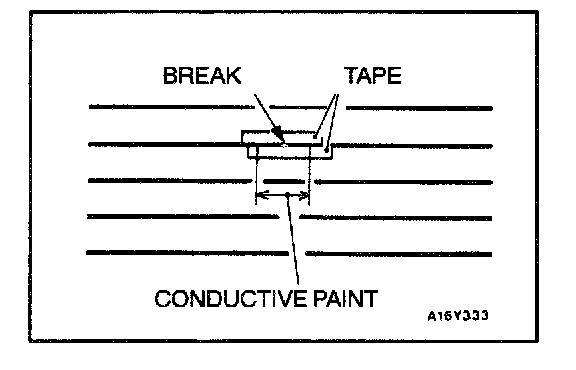

1. Clean disconnected area with lead-free gasoline. Tape along both sides of heater element.
2. Mix conductive paint thoroughly. Thin the required amount of paint in a separate container with a small amount of thinner and paint break three times at 15 minutes intervals.
3. Remove tape and leave for a while before use (circuit complete).
4. When completely dry (after 24 hours) finish exterior with a knife.

CAUTION: Clean glass with a soft cloth (dry or damp) along defogger heater element.
