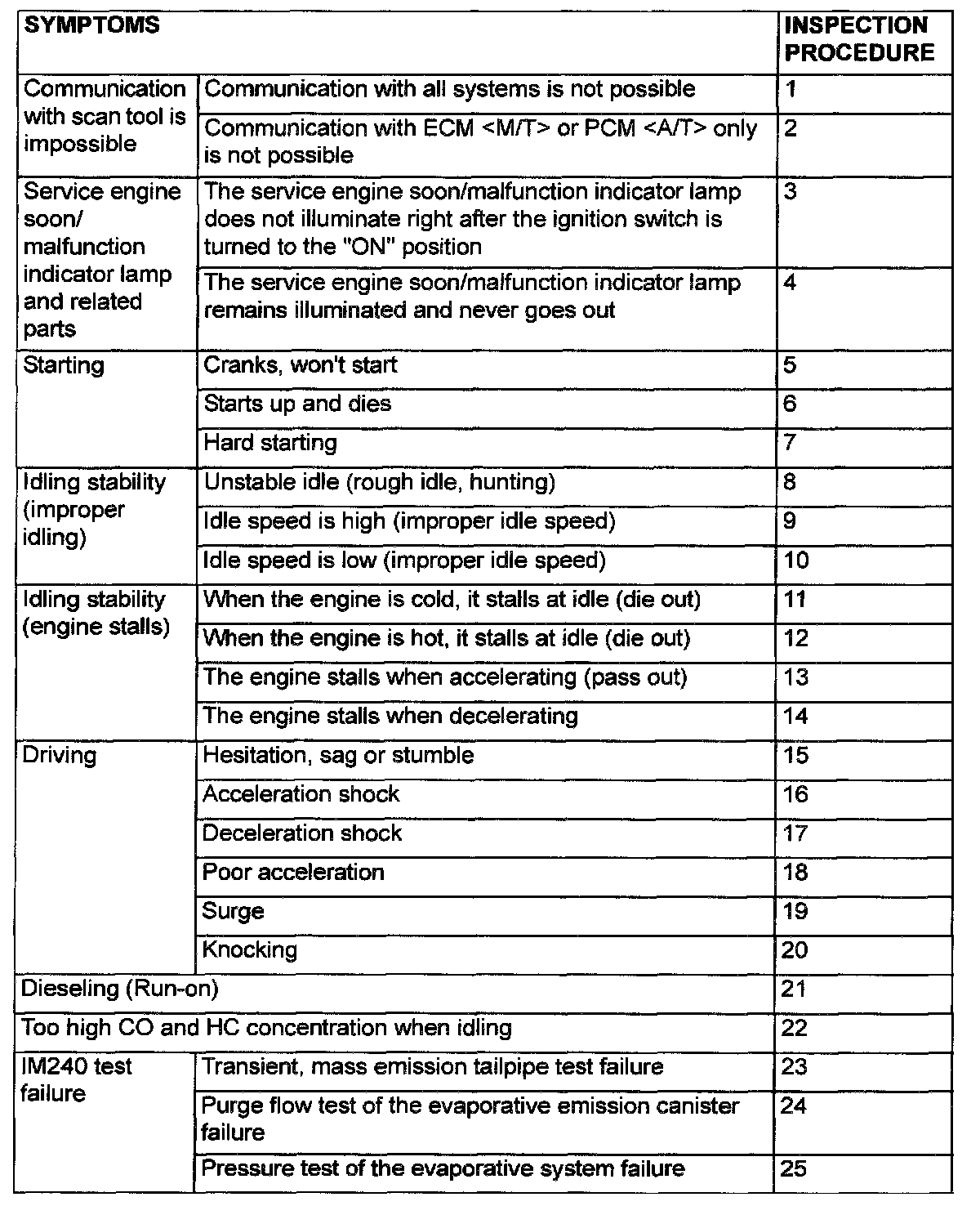

Symptom Chart

Part 1:




Part 2:






NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.
