Camshaft, Engine

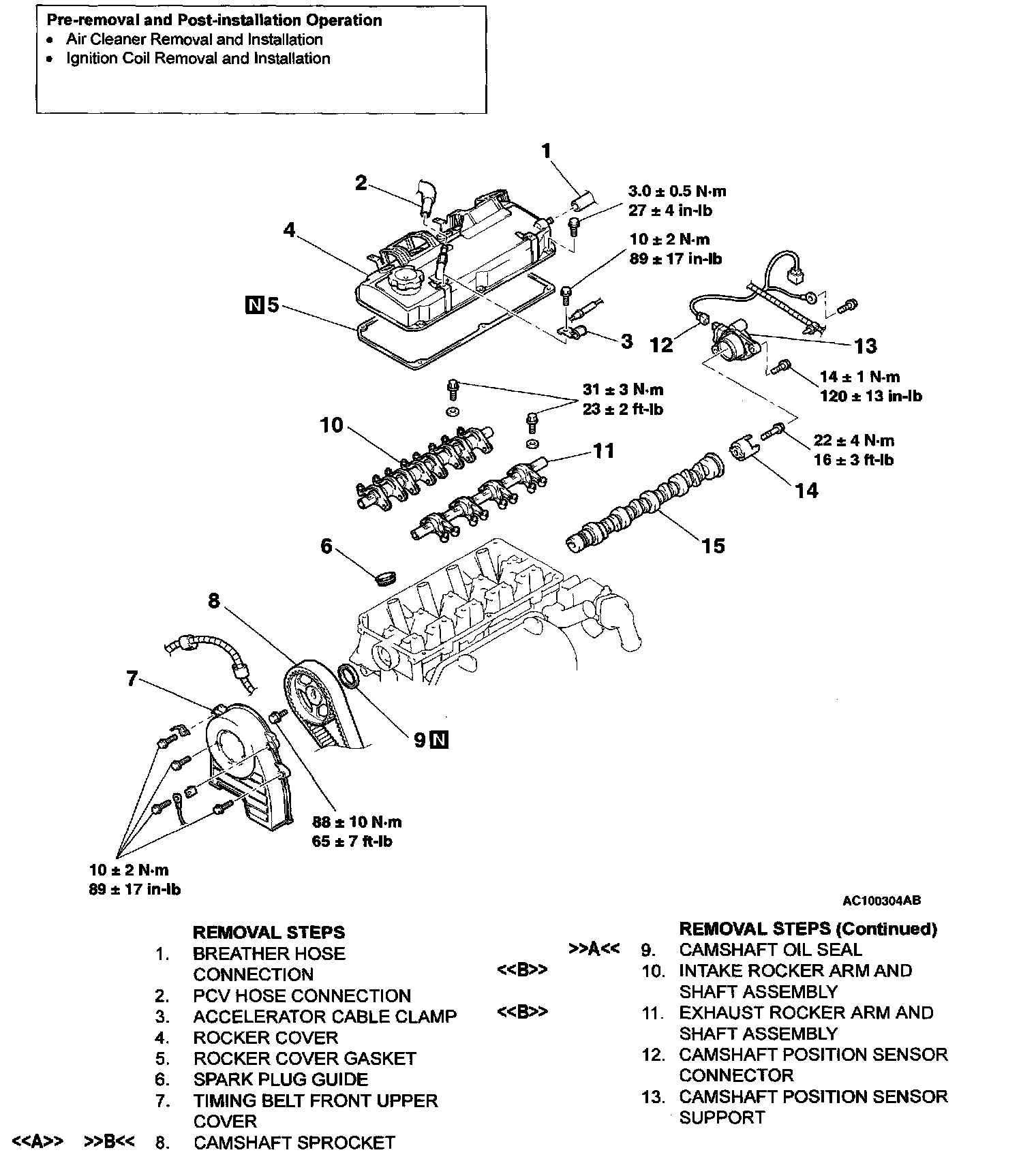

CAMSHAFT AND CAMSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
