Sectional View

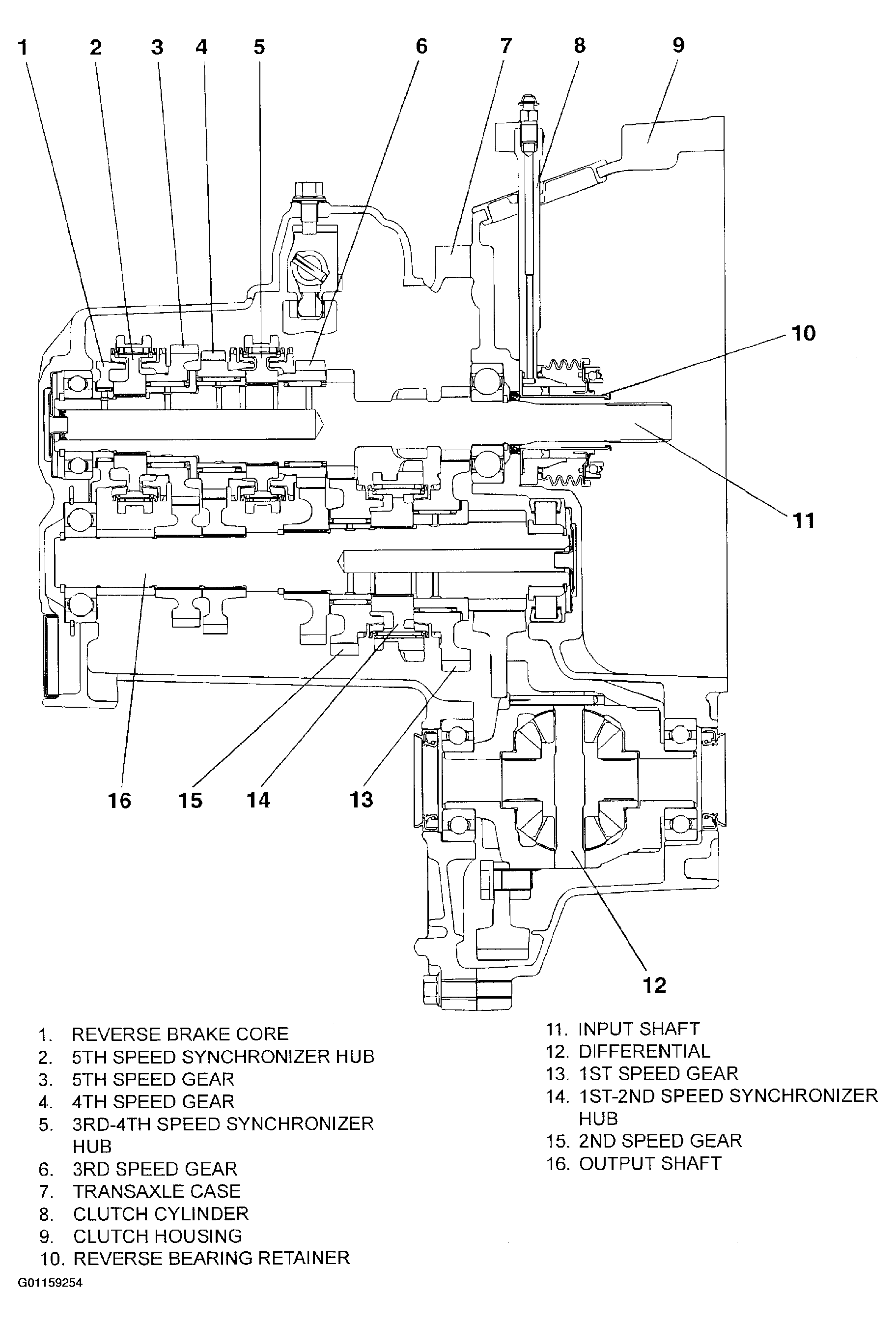

Fig 1: Identifying Manual Transaxle Sectional View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
