Valve Body Spring Identification Table

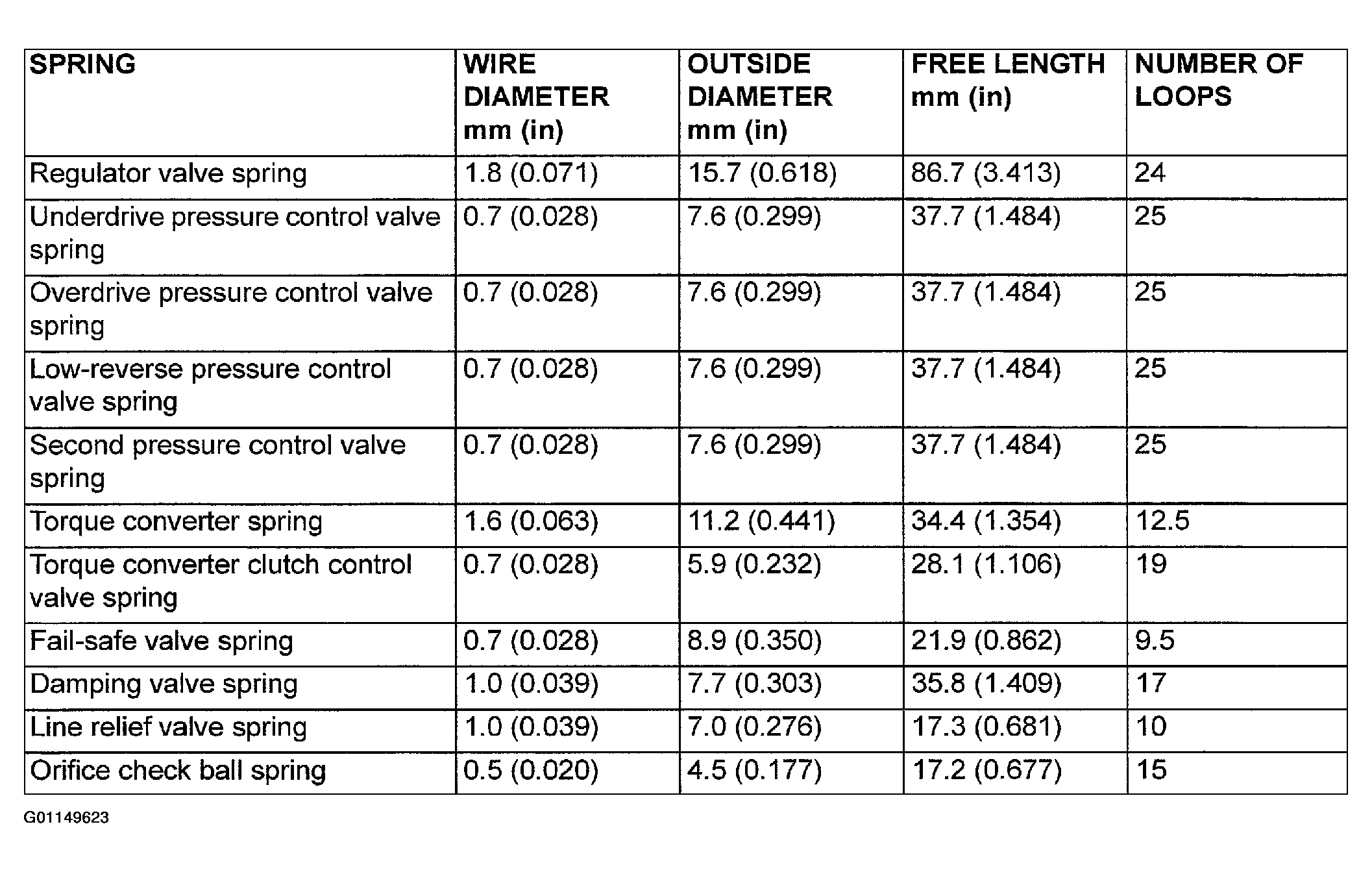

Fig 1: Valve Body Spring Identification Table
G01149623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
