Disassembly & Reassembly: Notes

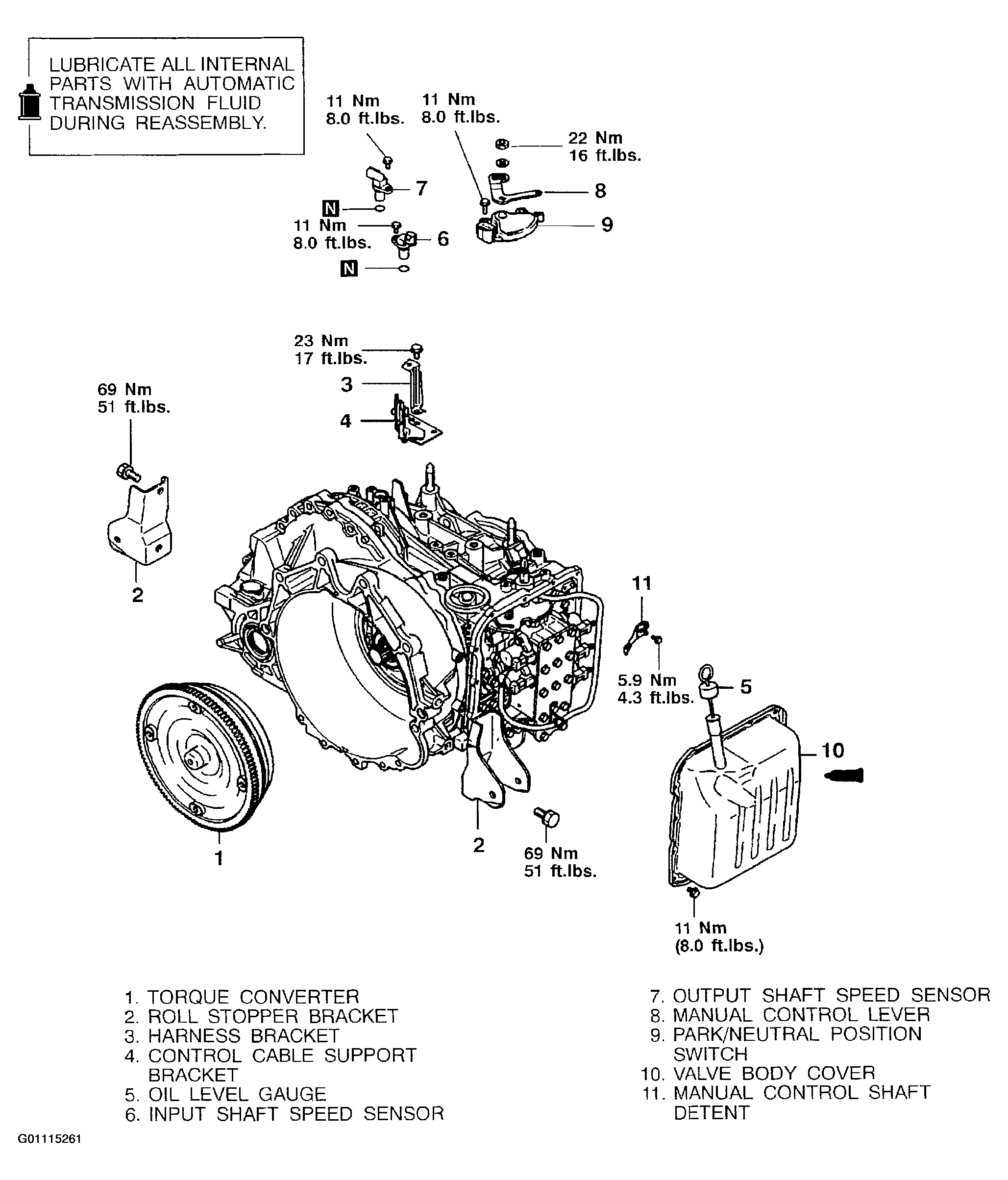

Fig 1: Exploded View Of Transaxle (1 Of 4)
G01115261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

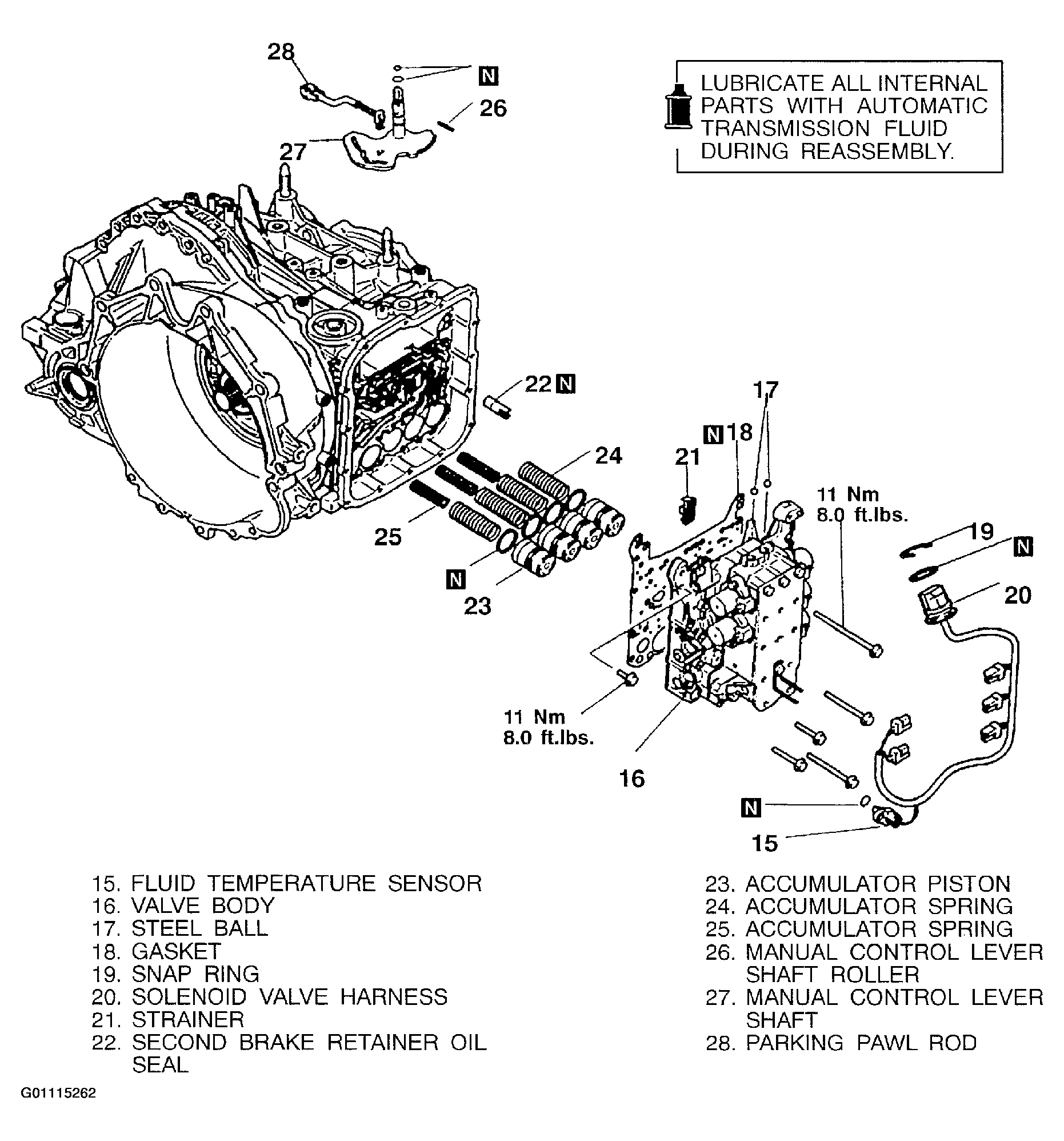

Fig 2: Exploded View Of Transaxle (2 Of 4)
G01115262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Exploded View Of Transaxle (3 Of 4)
G01115263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

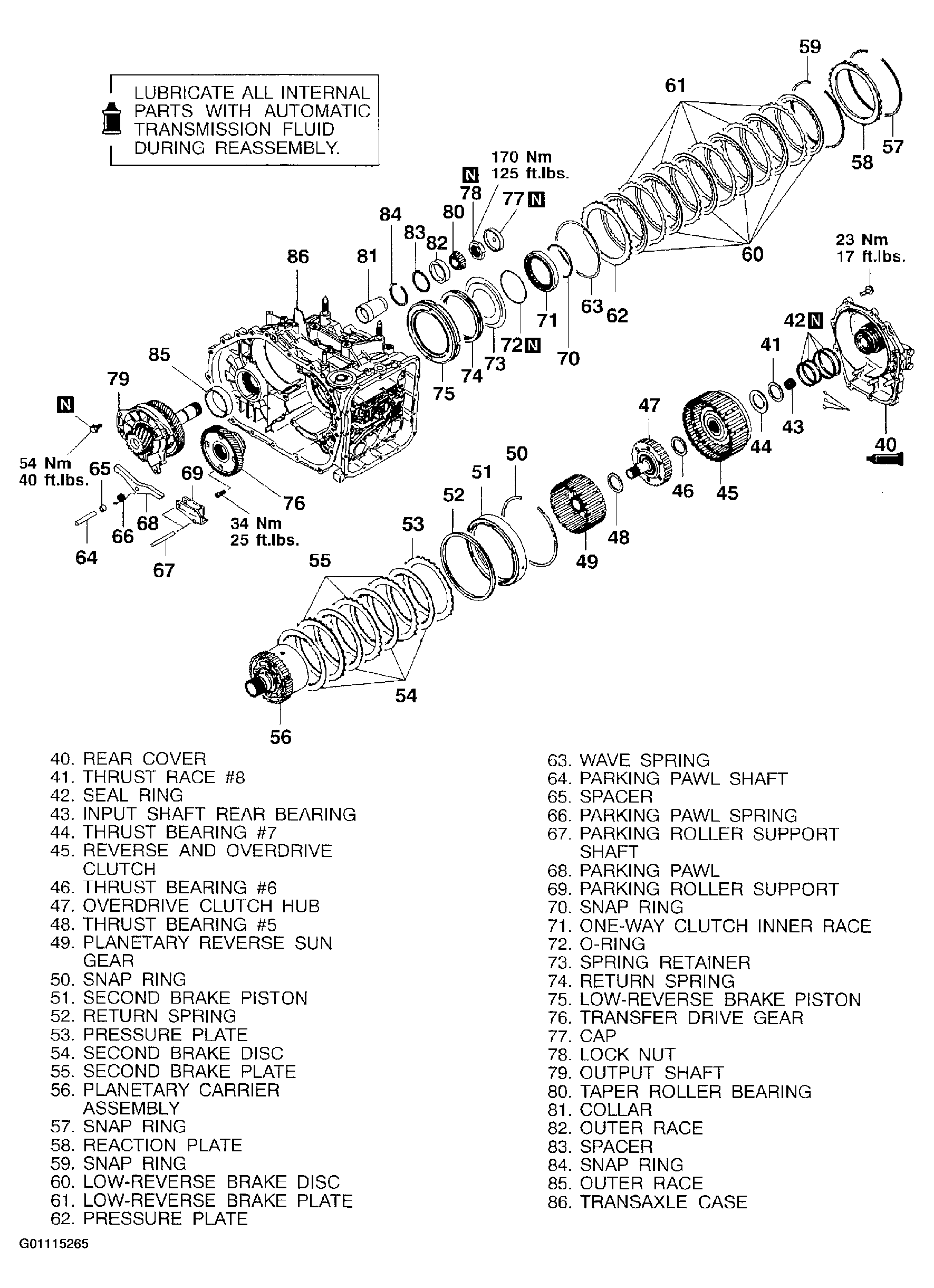

Fig 4: Exploded View Of Transaxle (4 Of 4)
G01115265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
