Disassembly And Reassembly: Notes

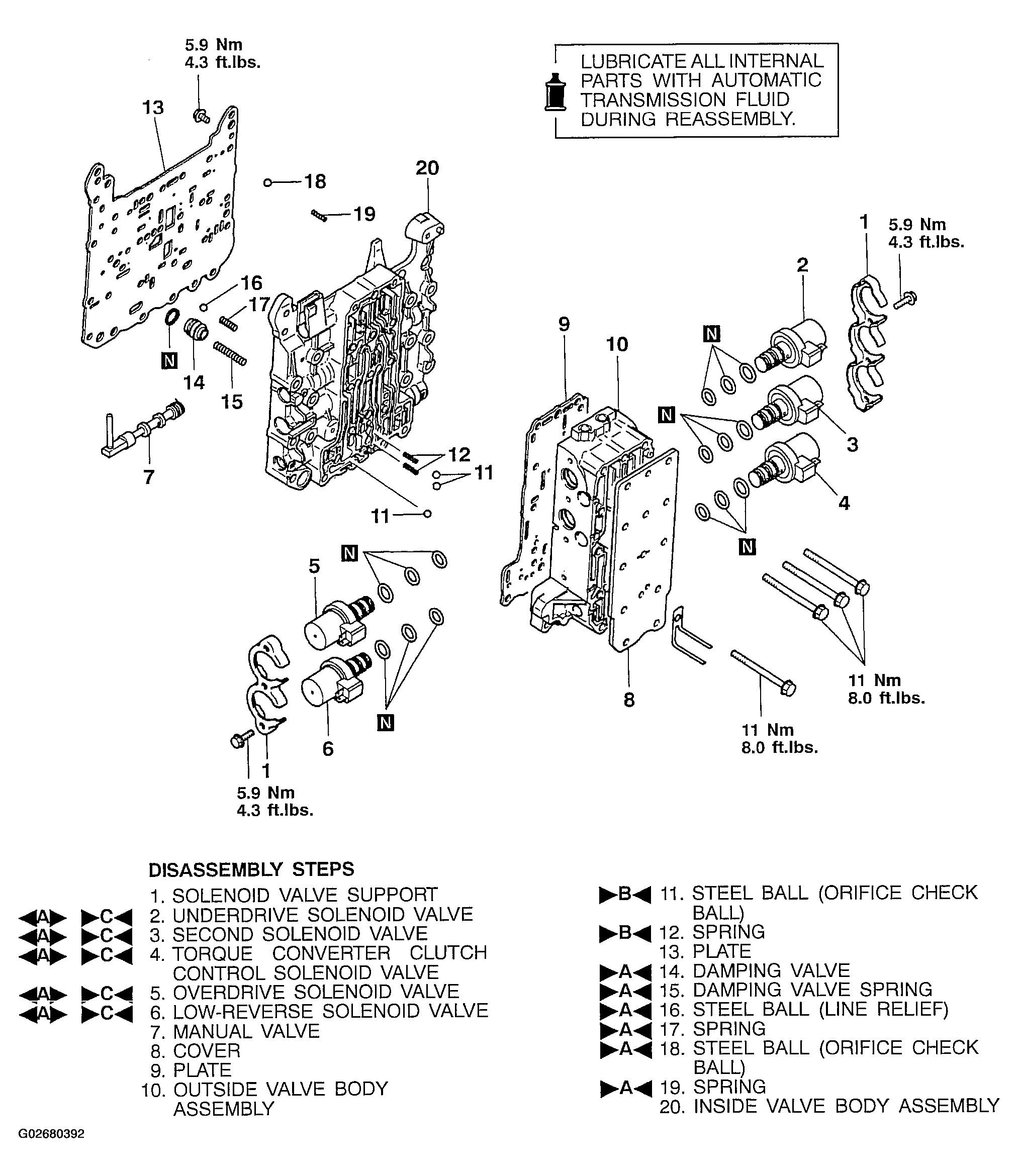

Fig 1: Valve Body Disassembly And Reassembly (1 Of 3)
G02680392

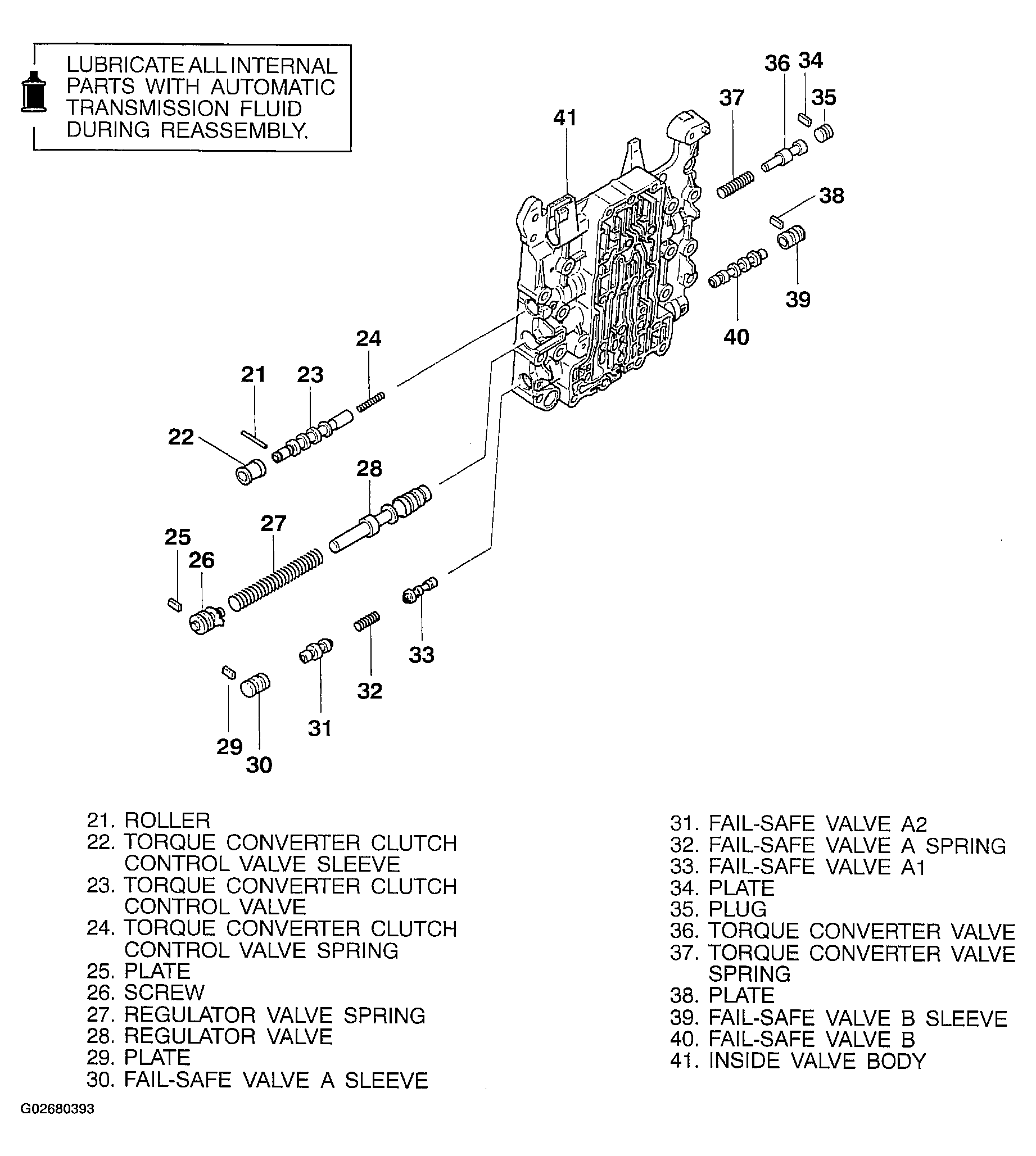

Fig 2: Valve Body Disassembly And Reassembly (2 Of 3)
G02680393

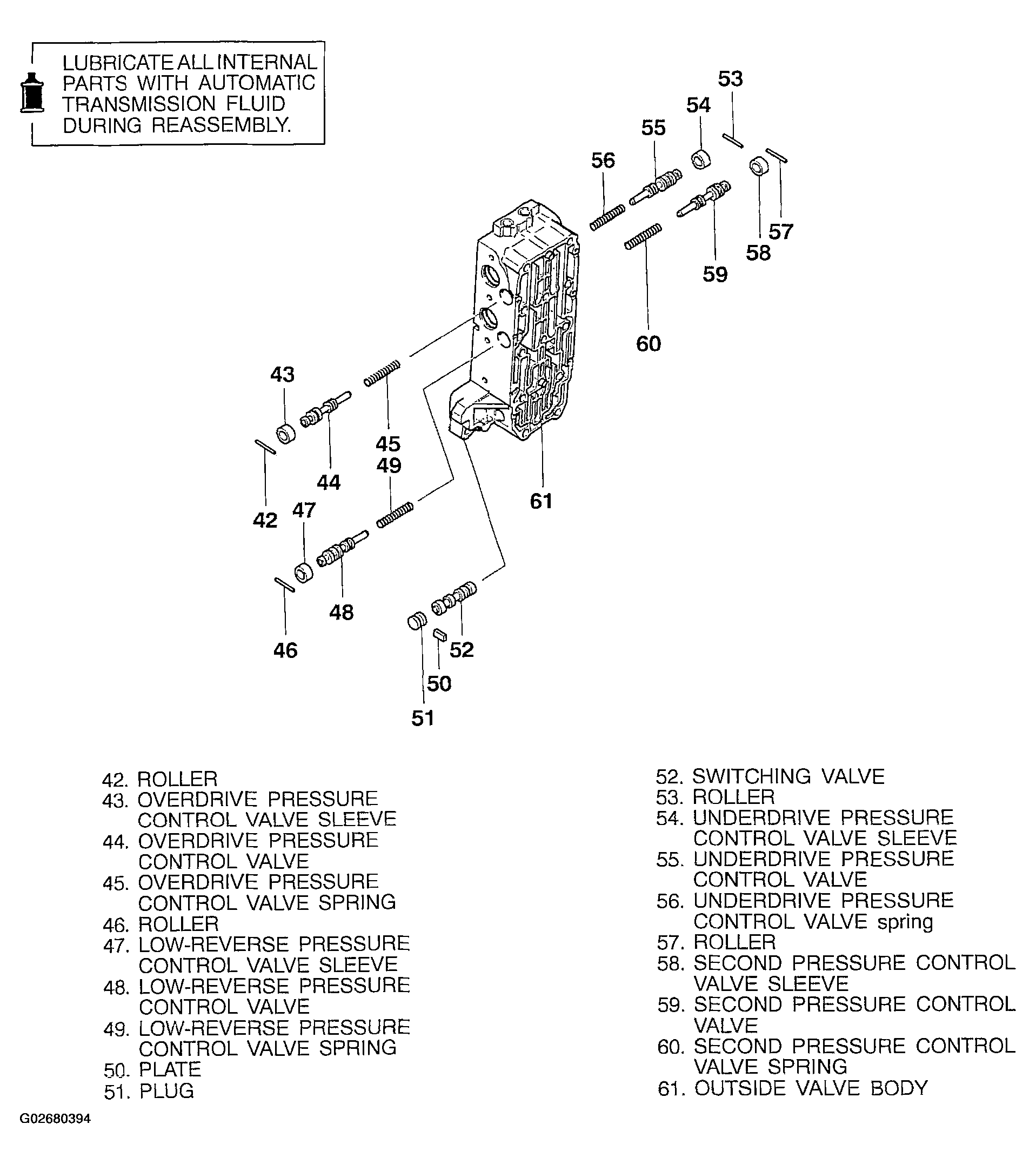

Fig 3: Valve Body Disassembly And Reassembly (3 Of 3)
G02680394
