All Other Models

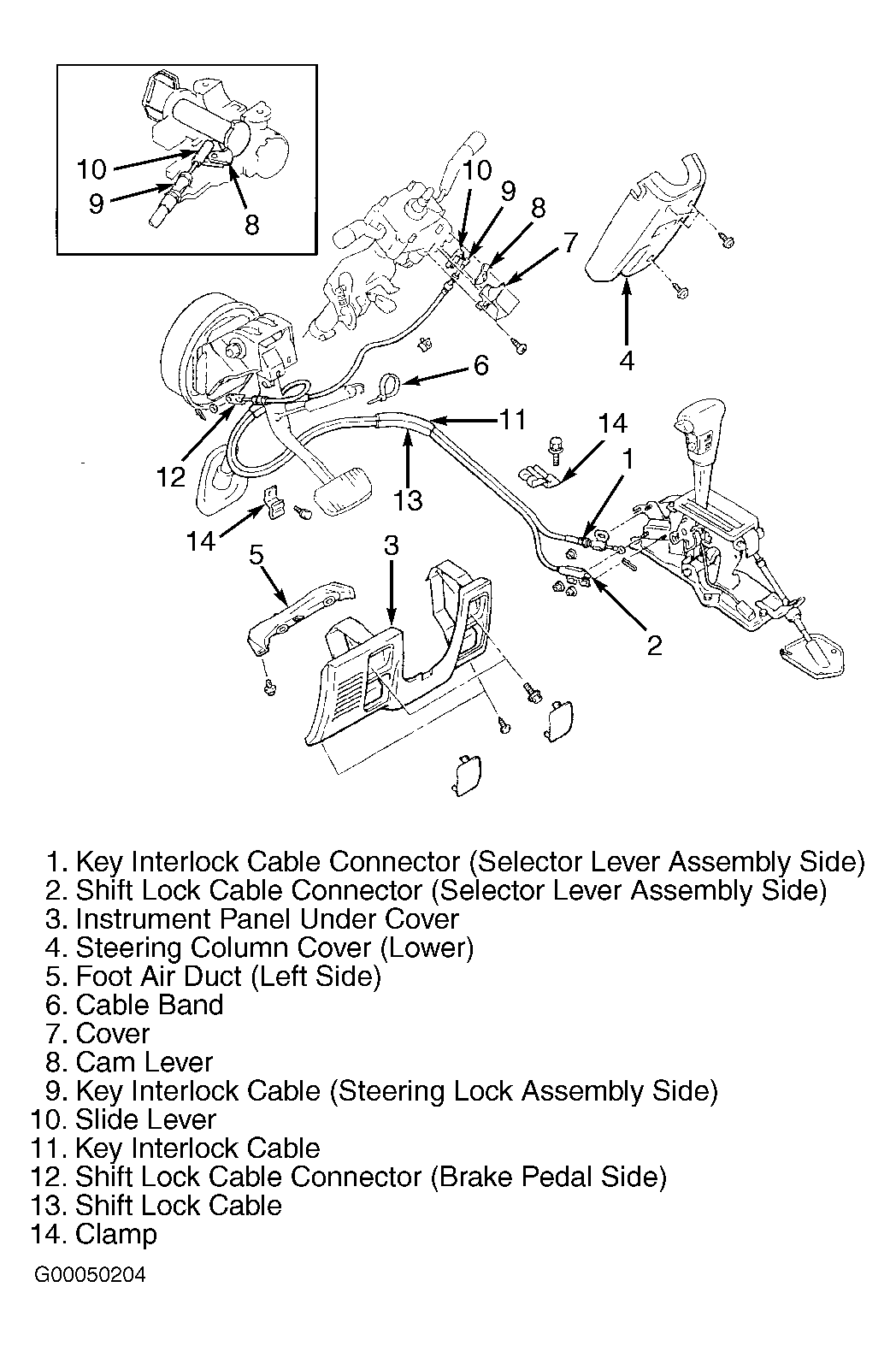

Remove floor console assembly. Loosen nut and remove key interlock cable connector from selector lever assembly. See Figure. Remove lower steering wheel and shaft cover. Remove cover from key interlock cable at steering lock cylinder side. Disconnect key interlock cable at steering lock cylinder. Remove slider and remove key interlock cable from vehicle. To install, reverse removal procedure. Adjust interlock cable. See KEY INTERLOCK CABLE  under ADJUSTMENTS.
