Accelerator Cable

  1. Remove intermediate link cover. Check deflection of inner accelerator cable. If deflection is excessive, or no play exists in inner cable, loosen accelerator cable adjusting bolts and nuts.
  2. While holding link "C" against stopper, turn adjusting nut until free play is .08-.12" (2-3 mm). Tighten lock nut. See Fig 1 and Fig 2 .
Fig 1: Adjusting Accelerator Cable On California Models
G99J05281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

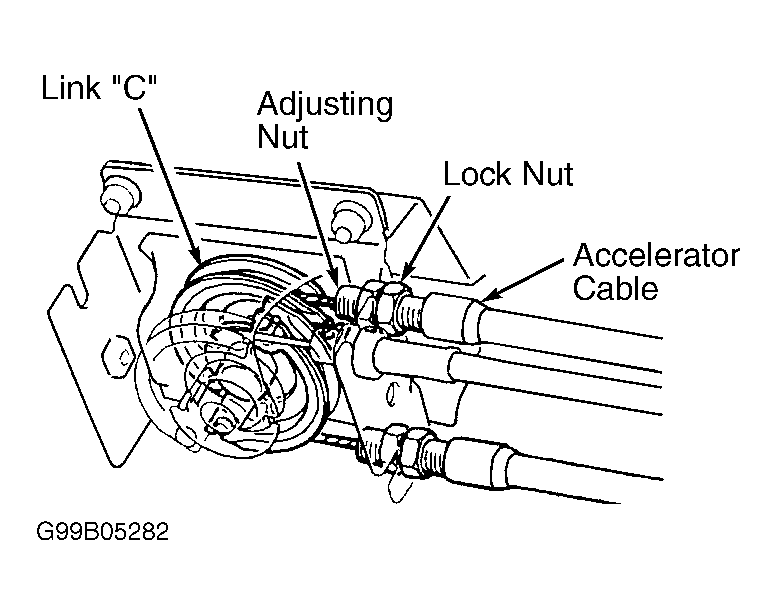

Fig 2: Adjusting Accelerator Cable On Federal Models
G99B05282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
