M/T Technical Data

F5M42 5-spd M/T, Clutch Dimensions:

F5M42 5-spd M/T, Standard Values:

F5M42 5-spd M/T, Clutch Limits:

F5M42 5-spd M/T, Gear Ratios:

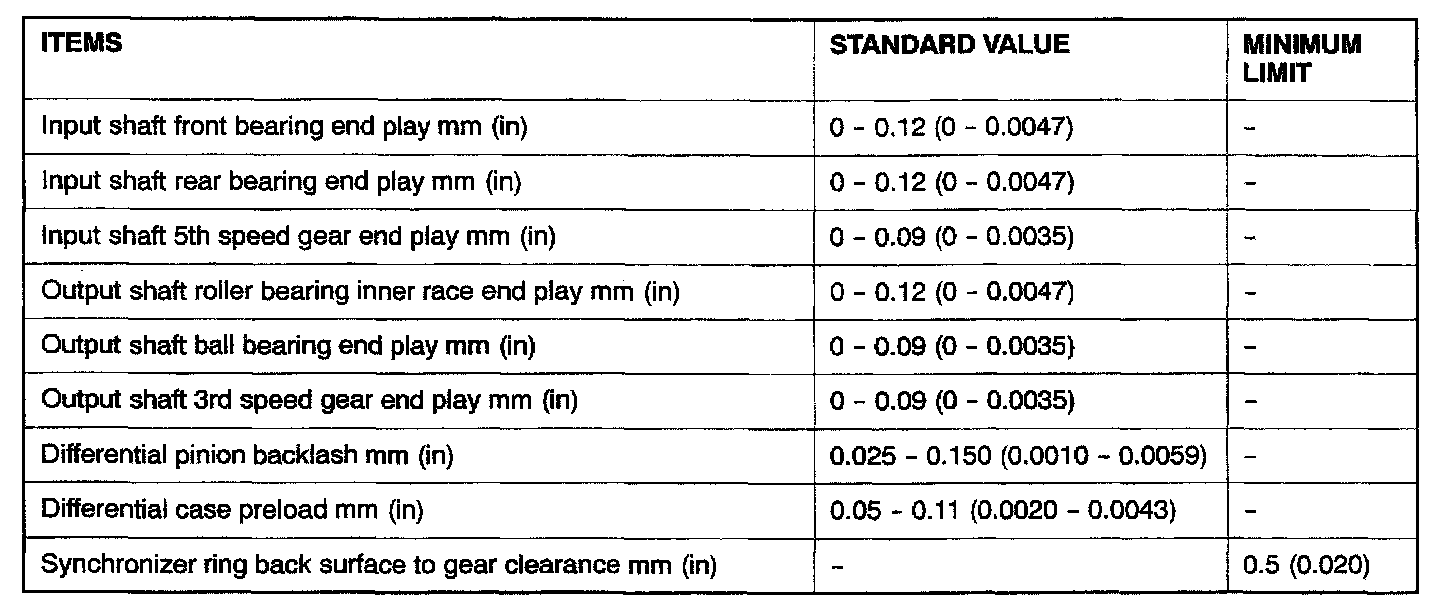

F5M42 5-spd M/T, Standard Values & Limits:

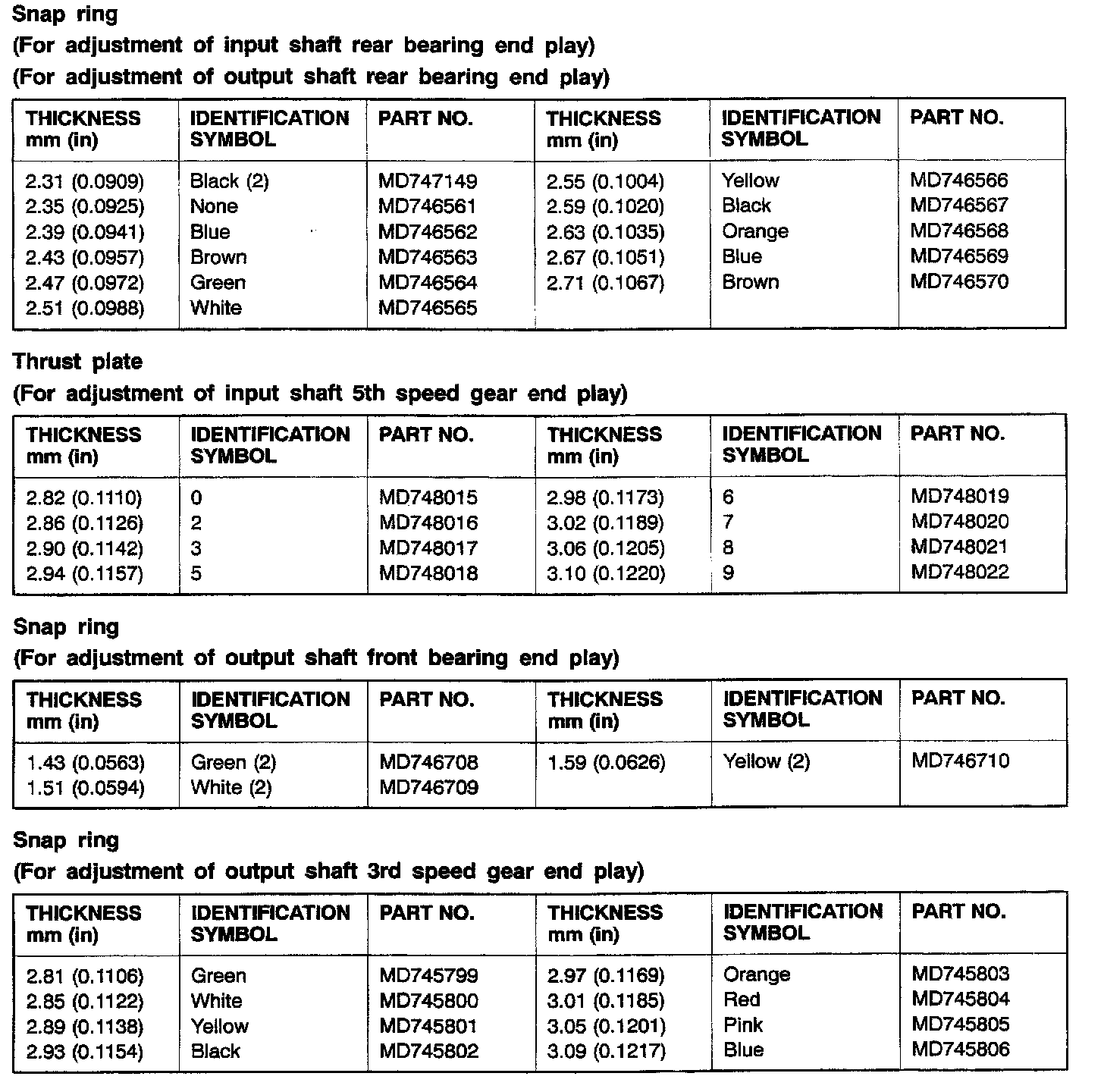

F5M42 5-spd M/T, Snap Ring, Spacers & Thrust Plate:

F5M42 5-spd M/T, Input & Output Shaft End Play:

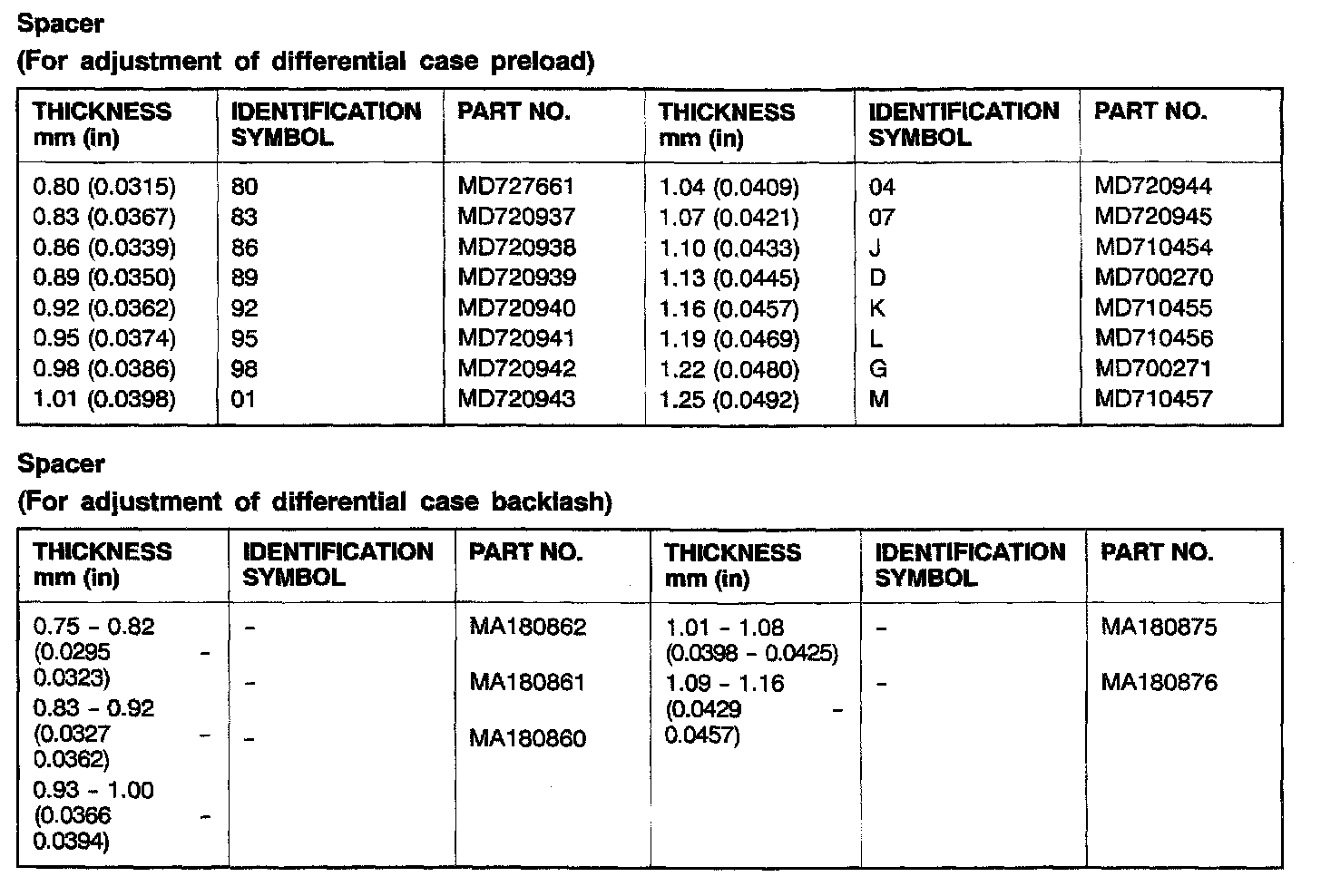

F5M42 5-spd M/T, Differential Preload & Backlash:
