Vehicle Speed Sensor: Locations

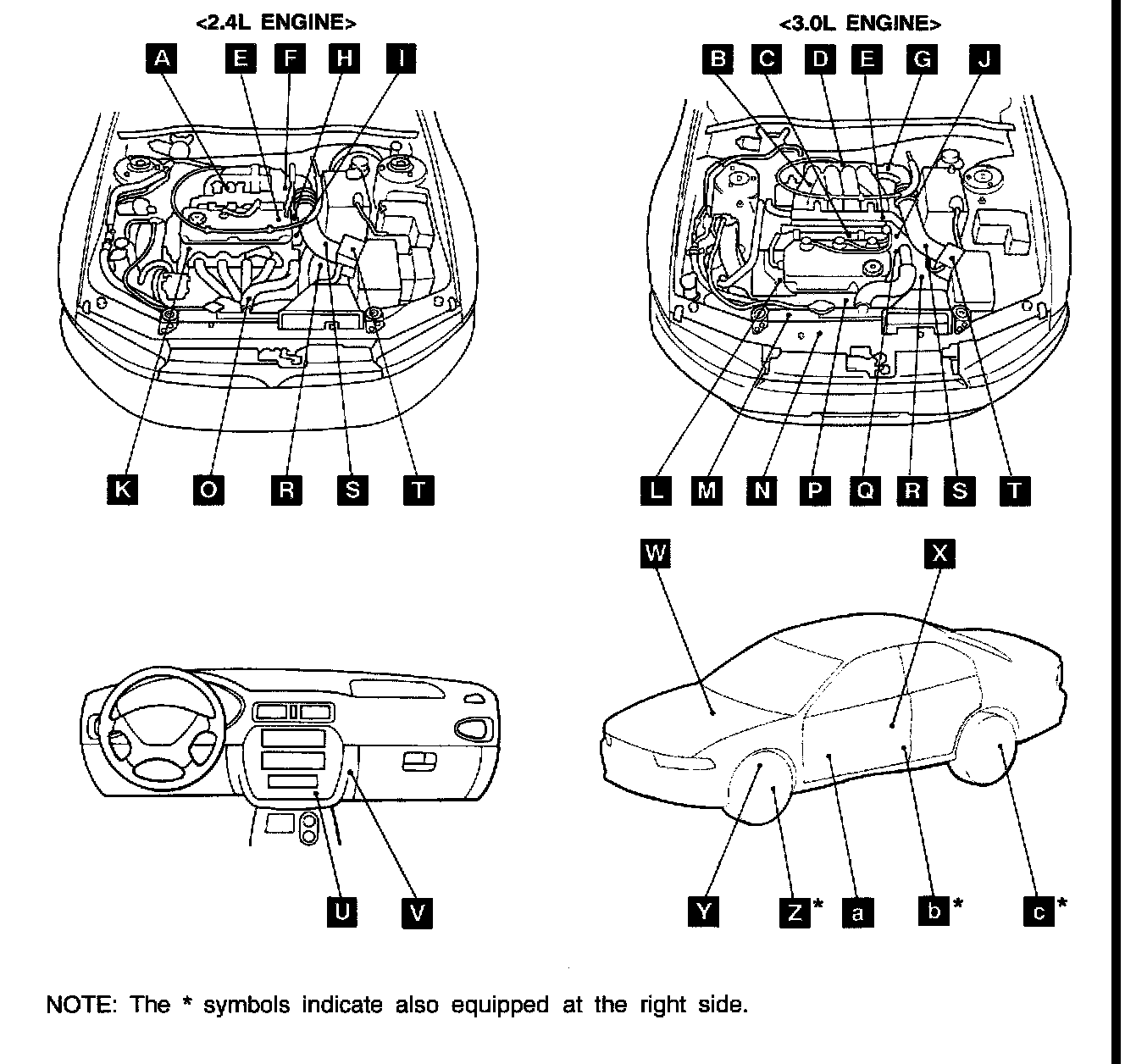

Sensor Location Overall View:

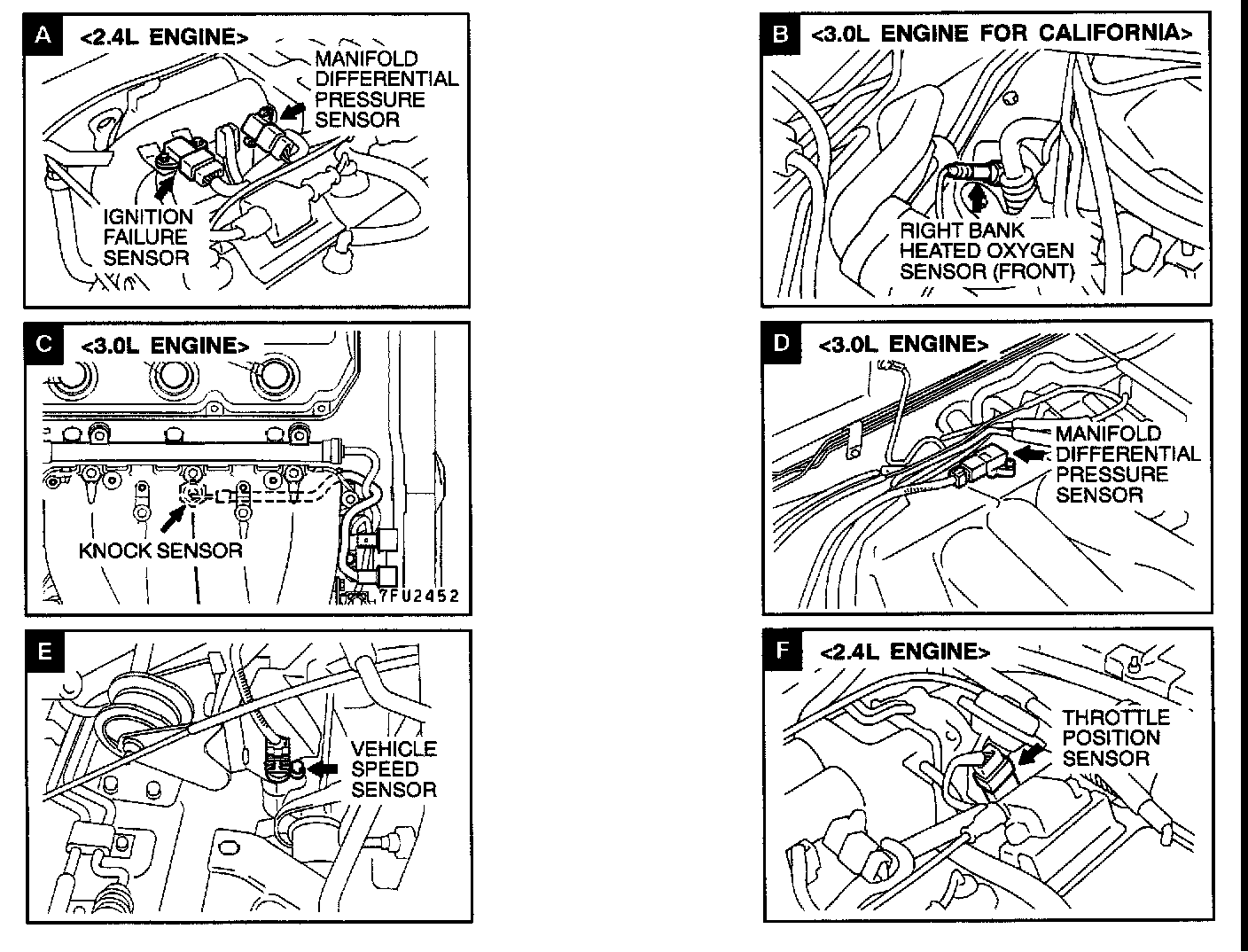

Sensor Location Views A-F:

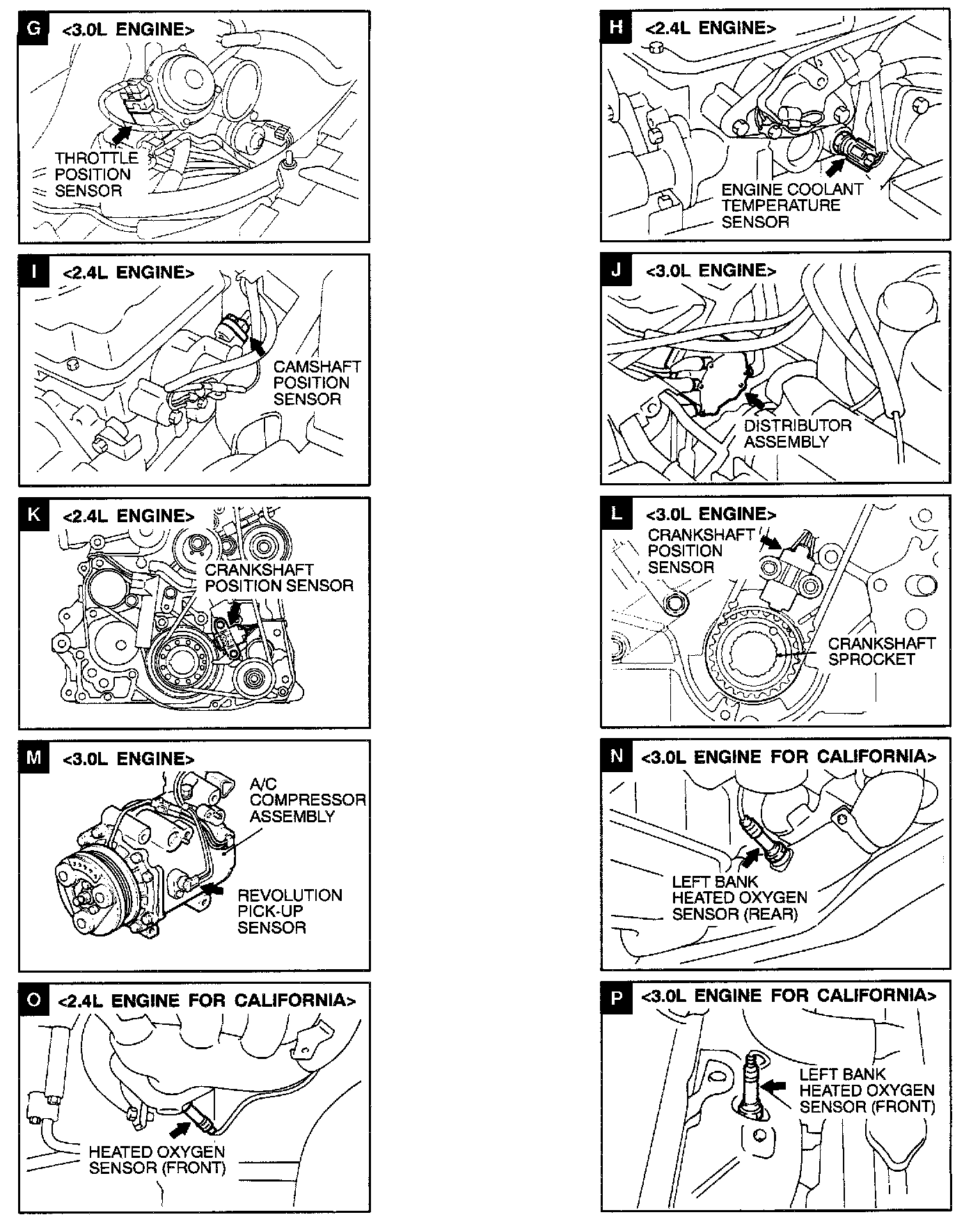

Sensor Location Views G - P:

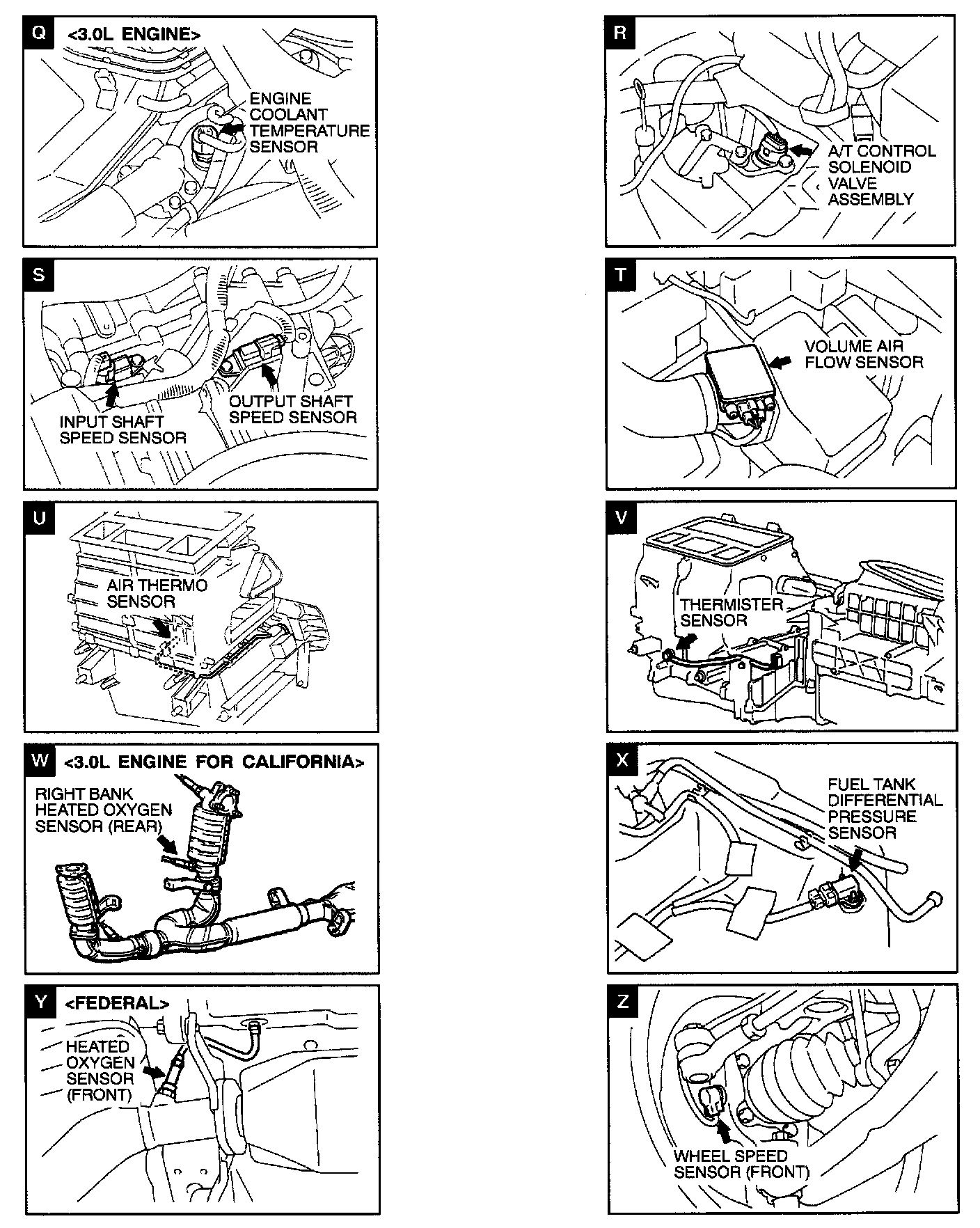

Sensor Location Views Q - Z:

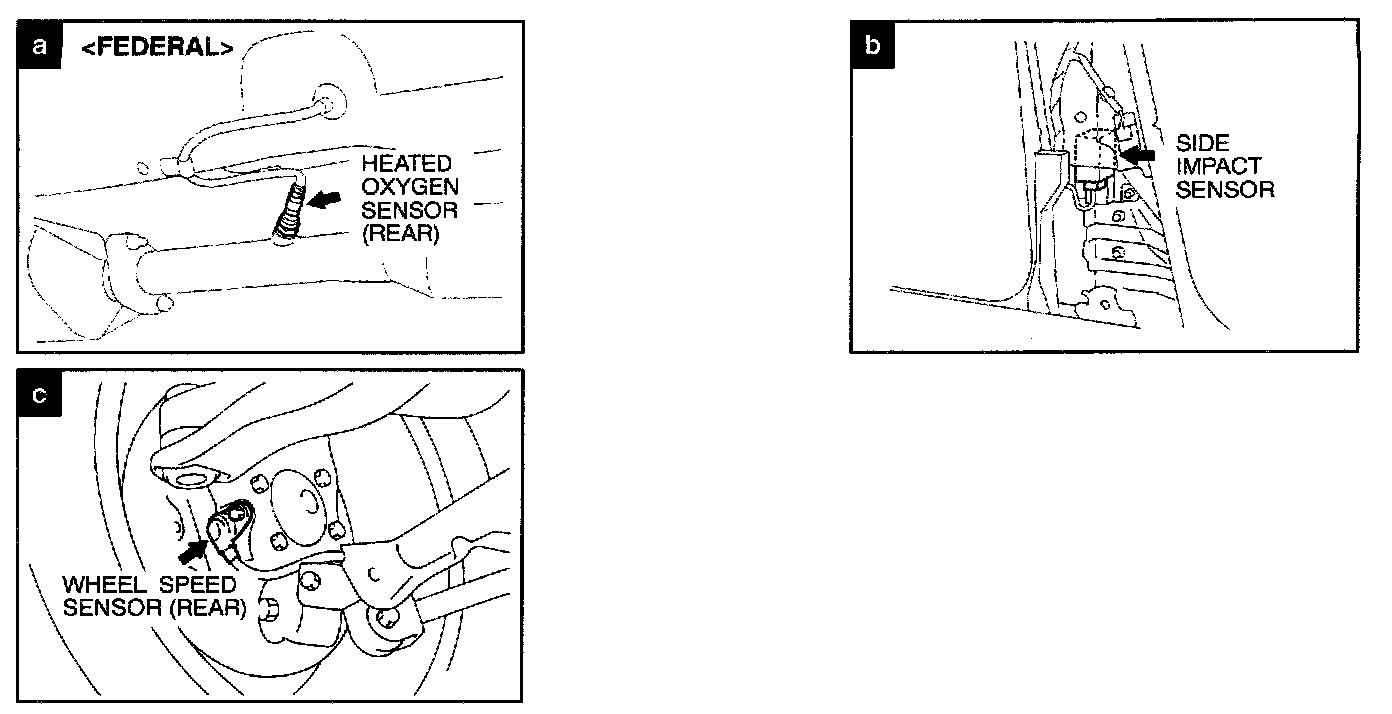

Sensor Location Views a - c:
NAME
SYMBOL
Vehicle Speed Sensor
E
