During Engine Overhaul

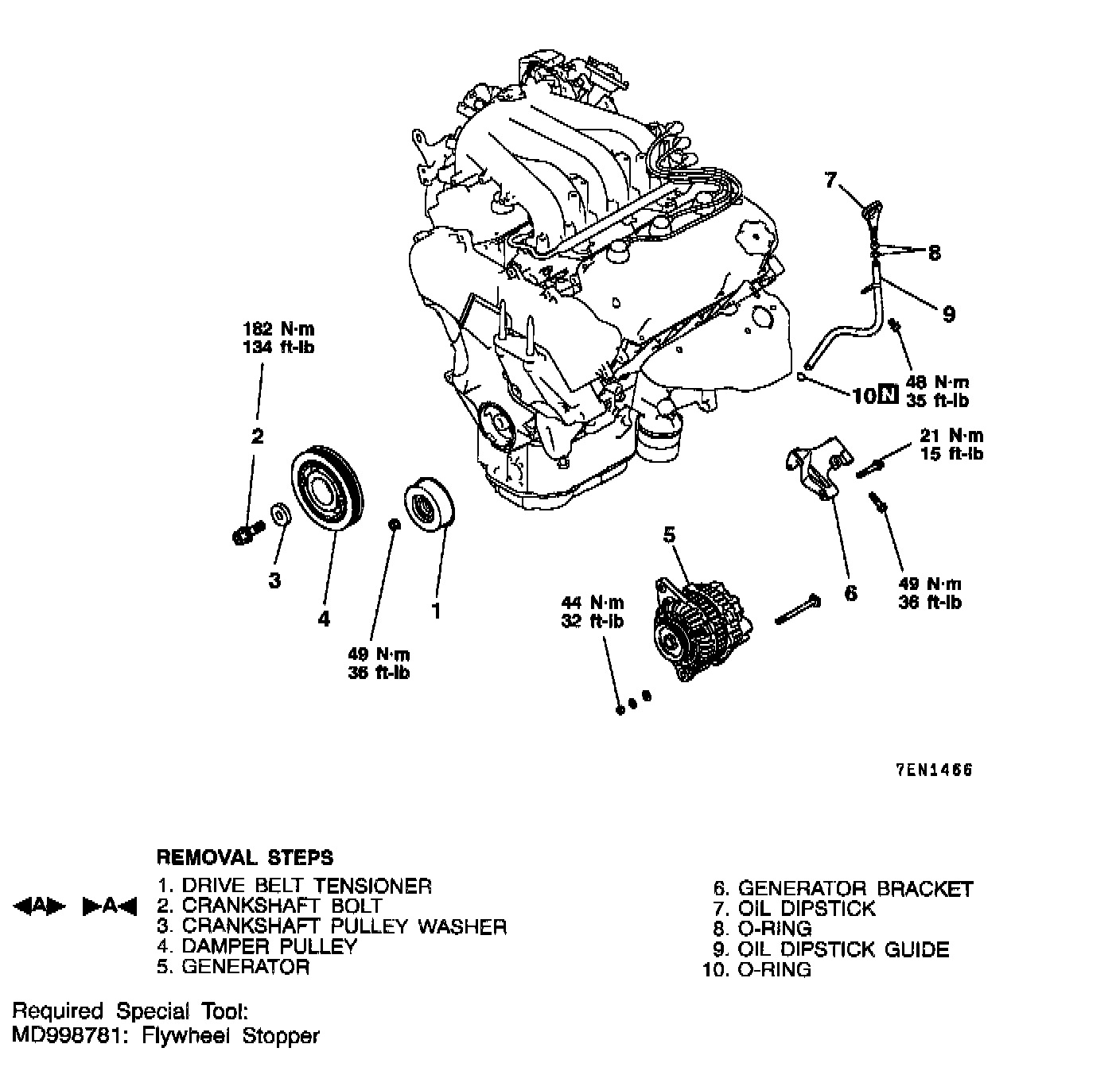

GENERATOR AND DRIVE PLATE

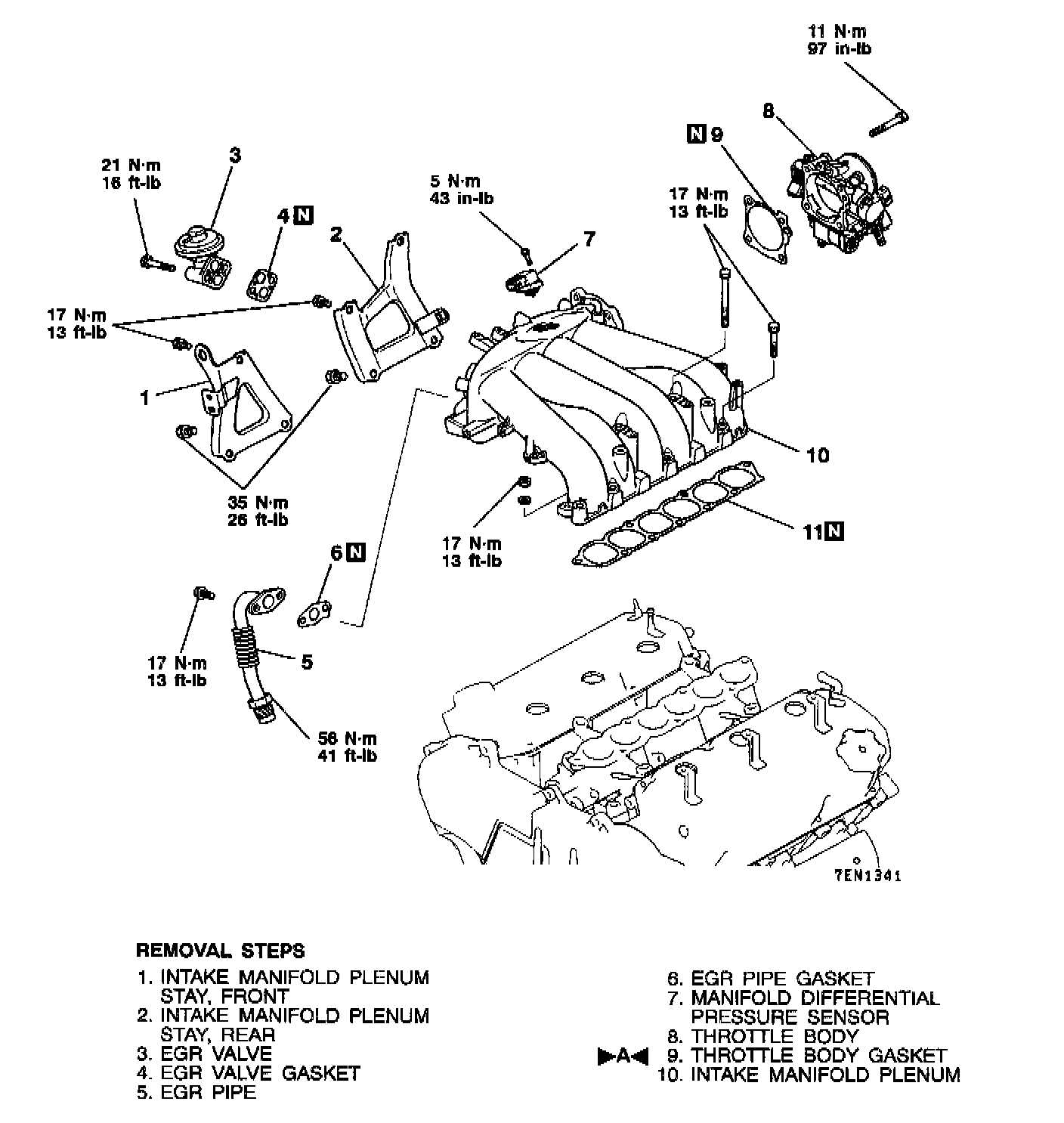

INTAKE MANIFOLD PLENUM AND THROTTLE BODY

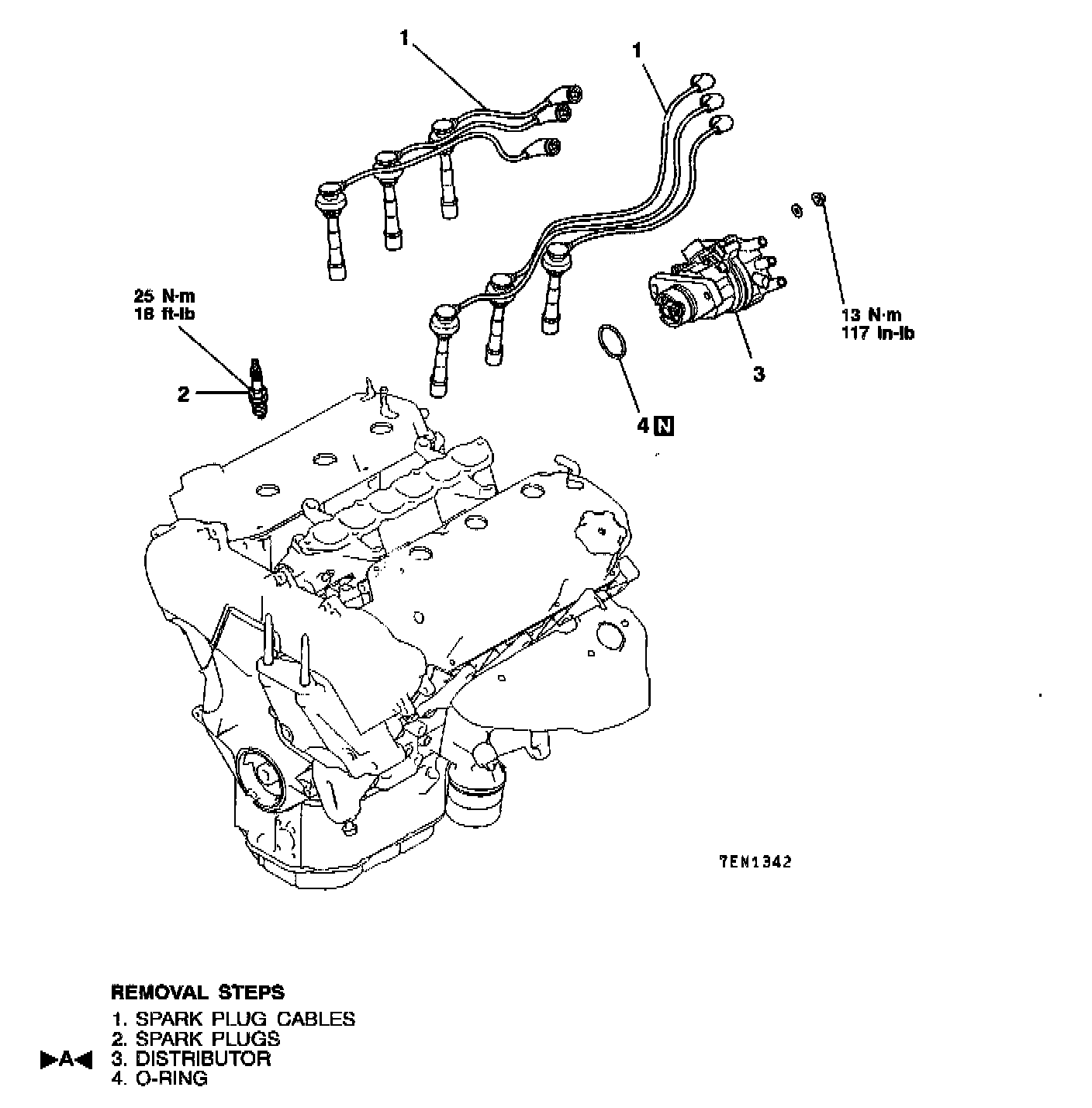

IGNITION SYSTEM

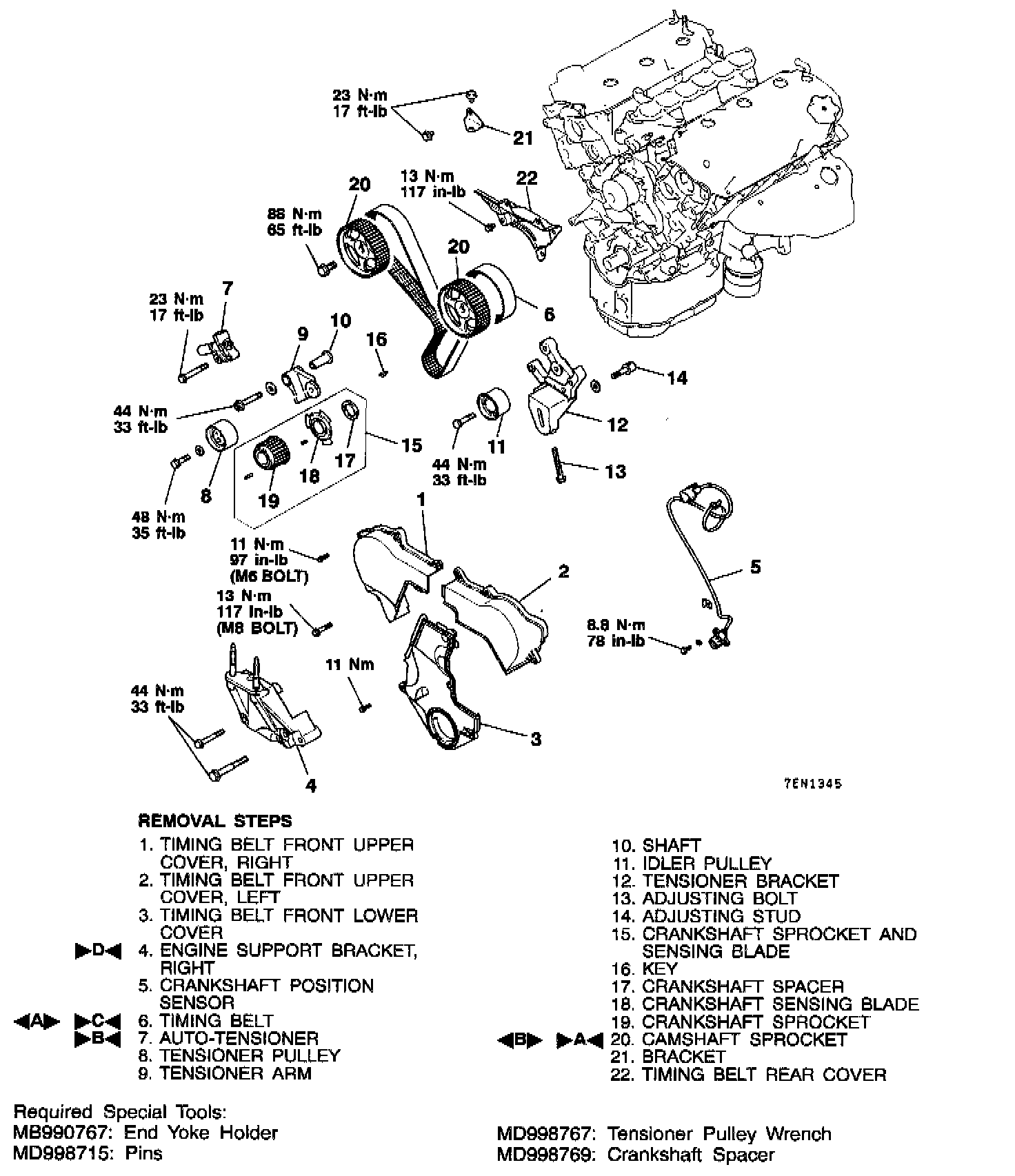

TIMING BELT

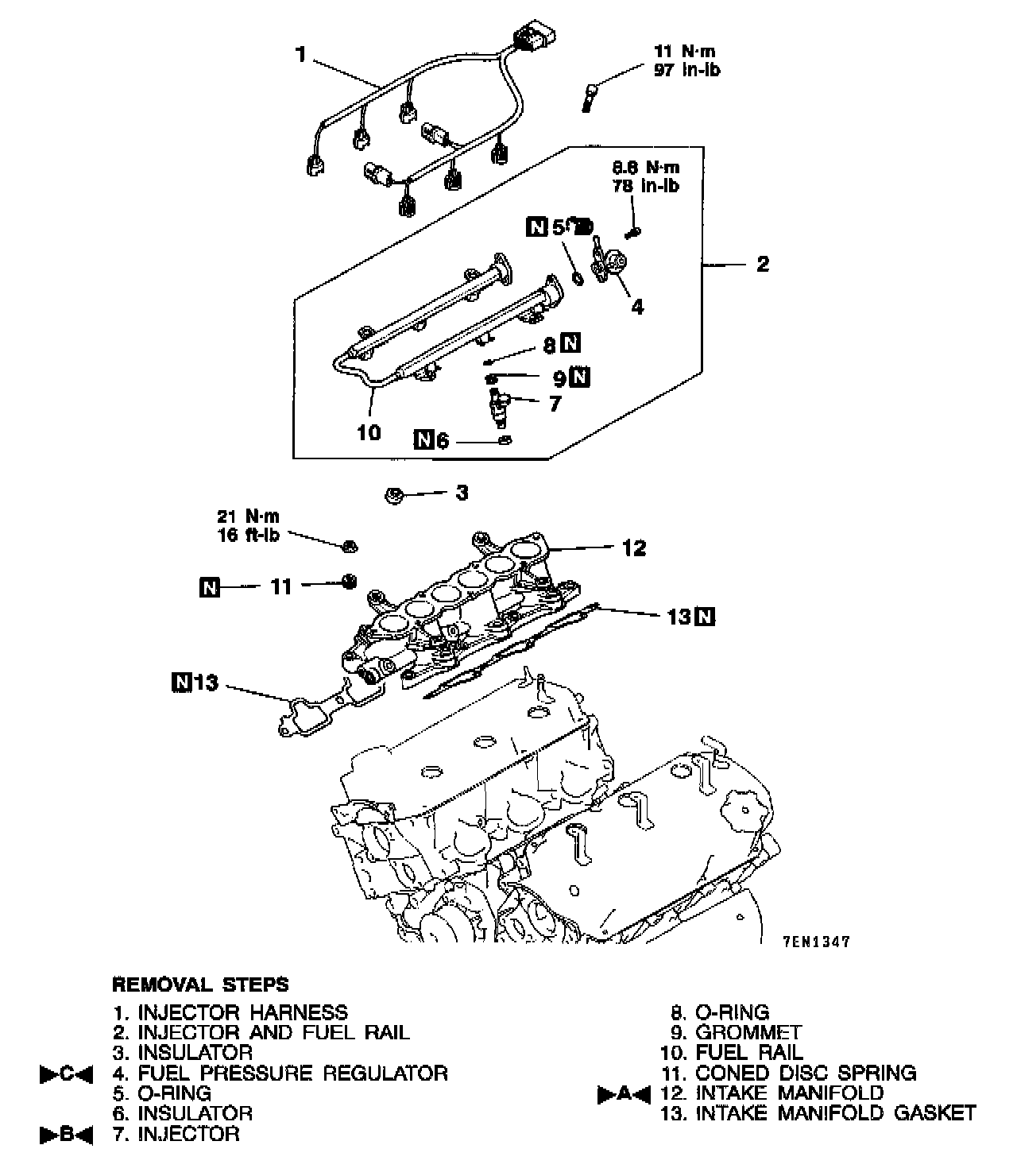

INTAKE MANIFOLD AND FUEL PARTS

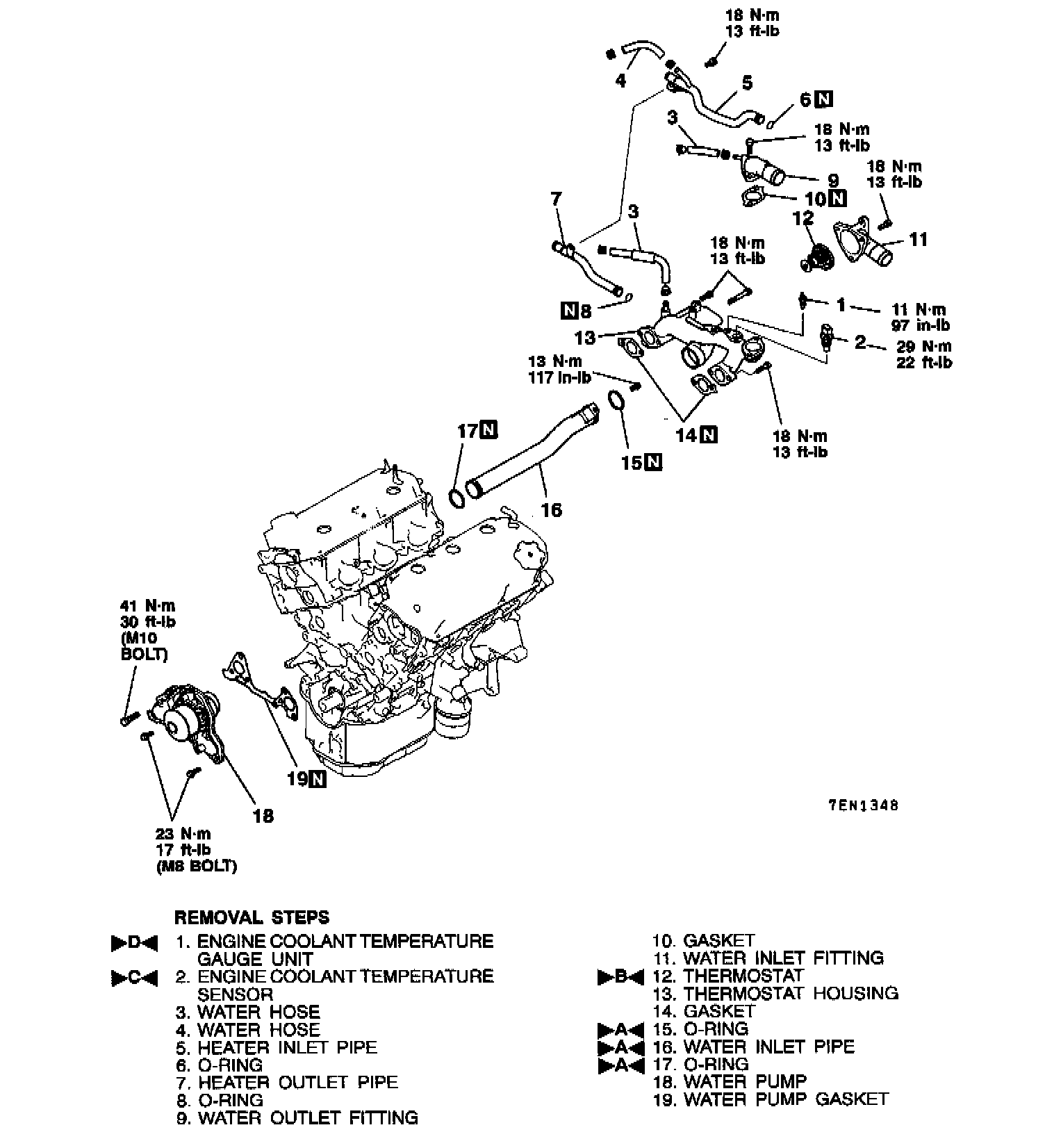

WATER PUMP AND PIPES

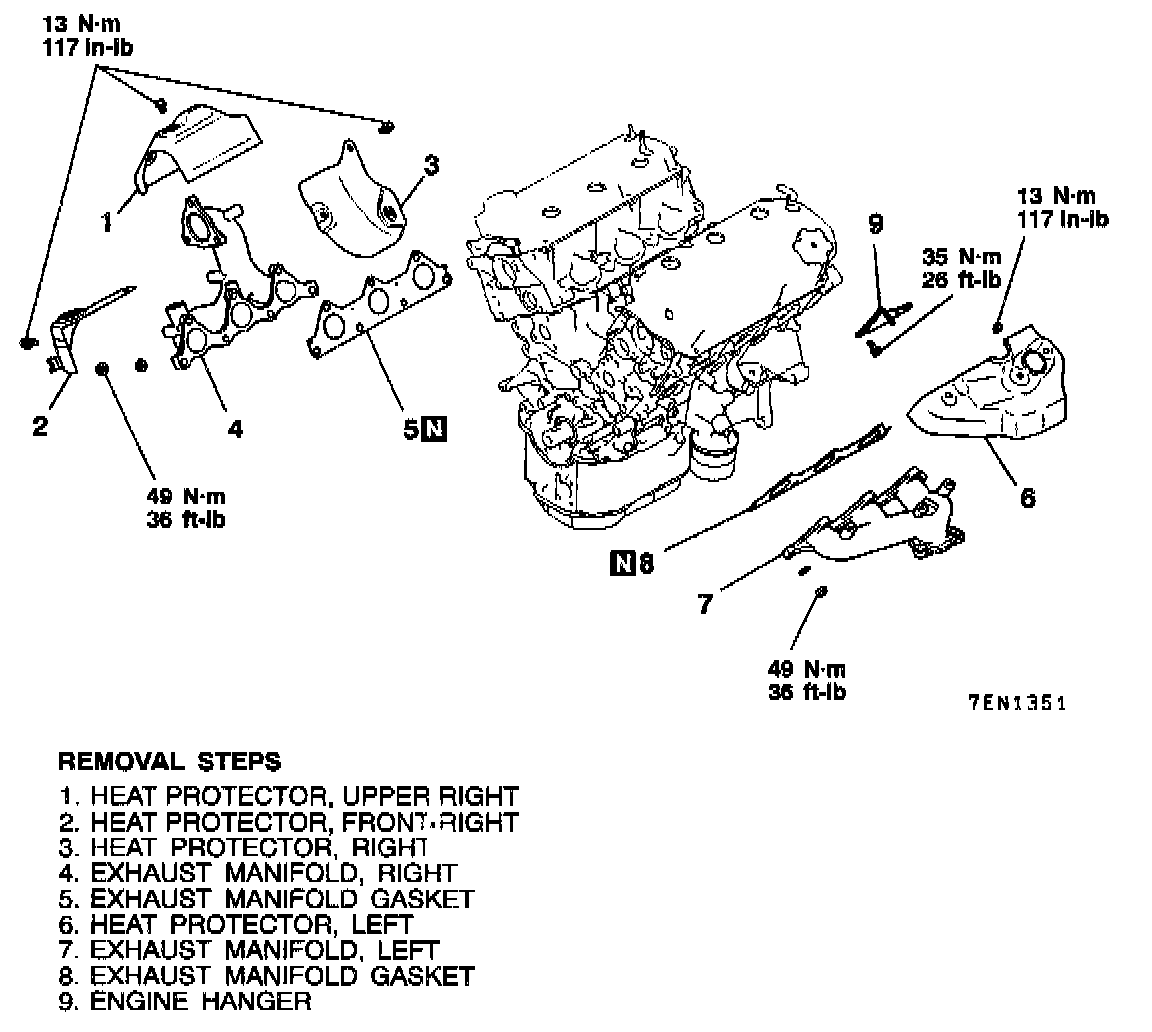

EXHAUST MANIFOLD [FEDERAL]





EXHAUST MANIFOLD [CALIFORNIA]

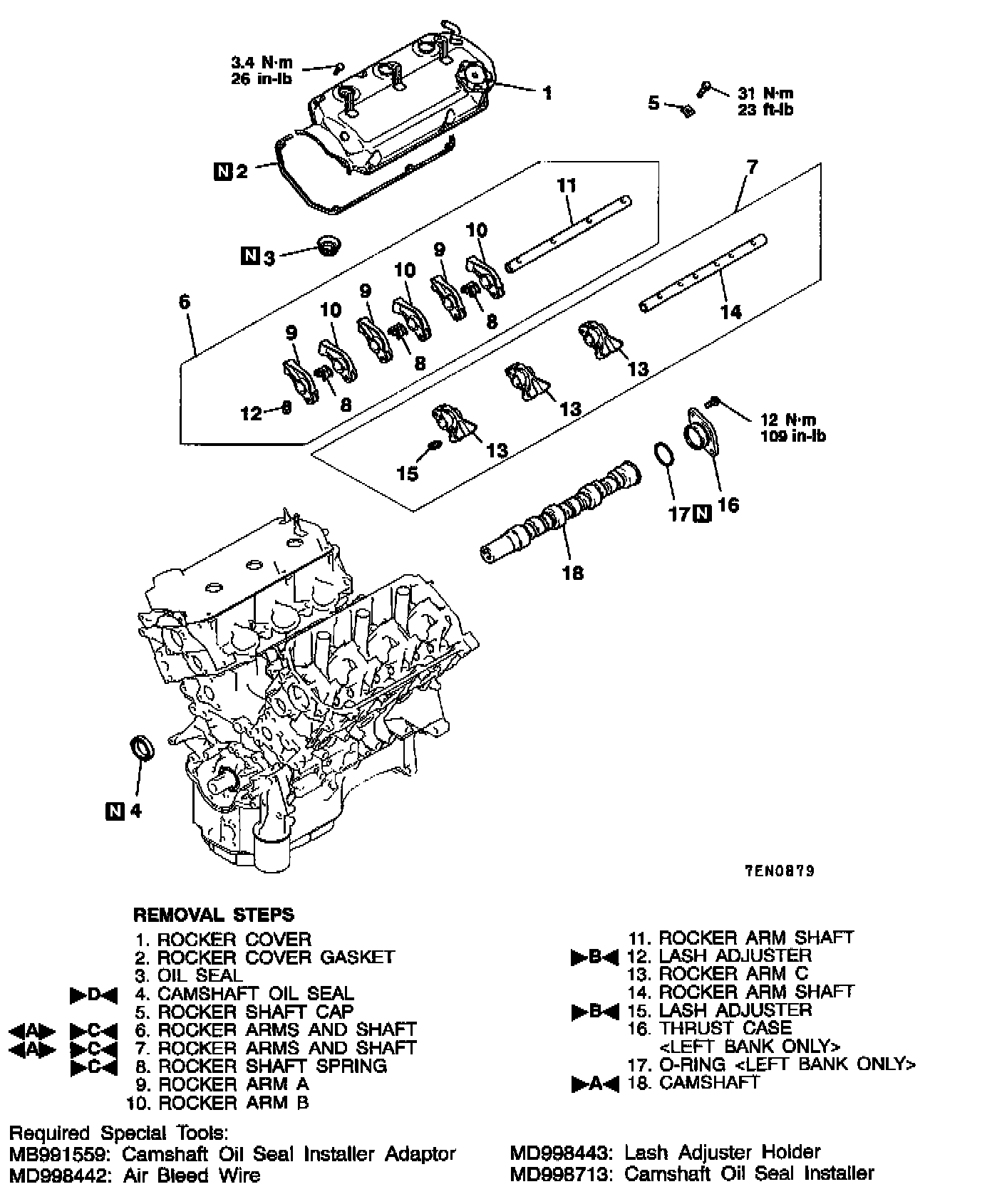

ROCKER ARMS AND CAMSHAFT

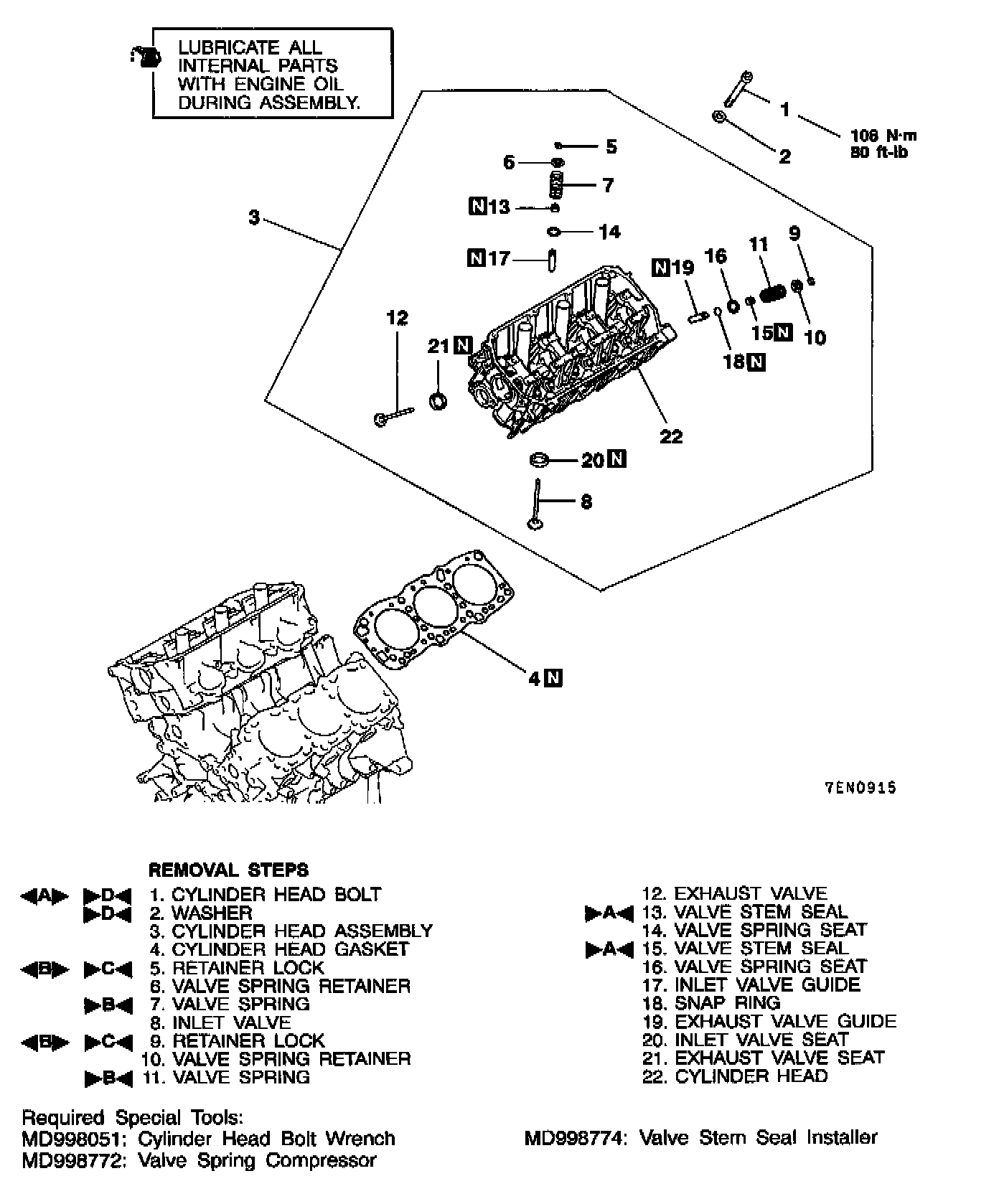

CYLINDER HEAD AND VALVES

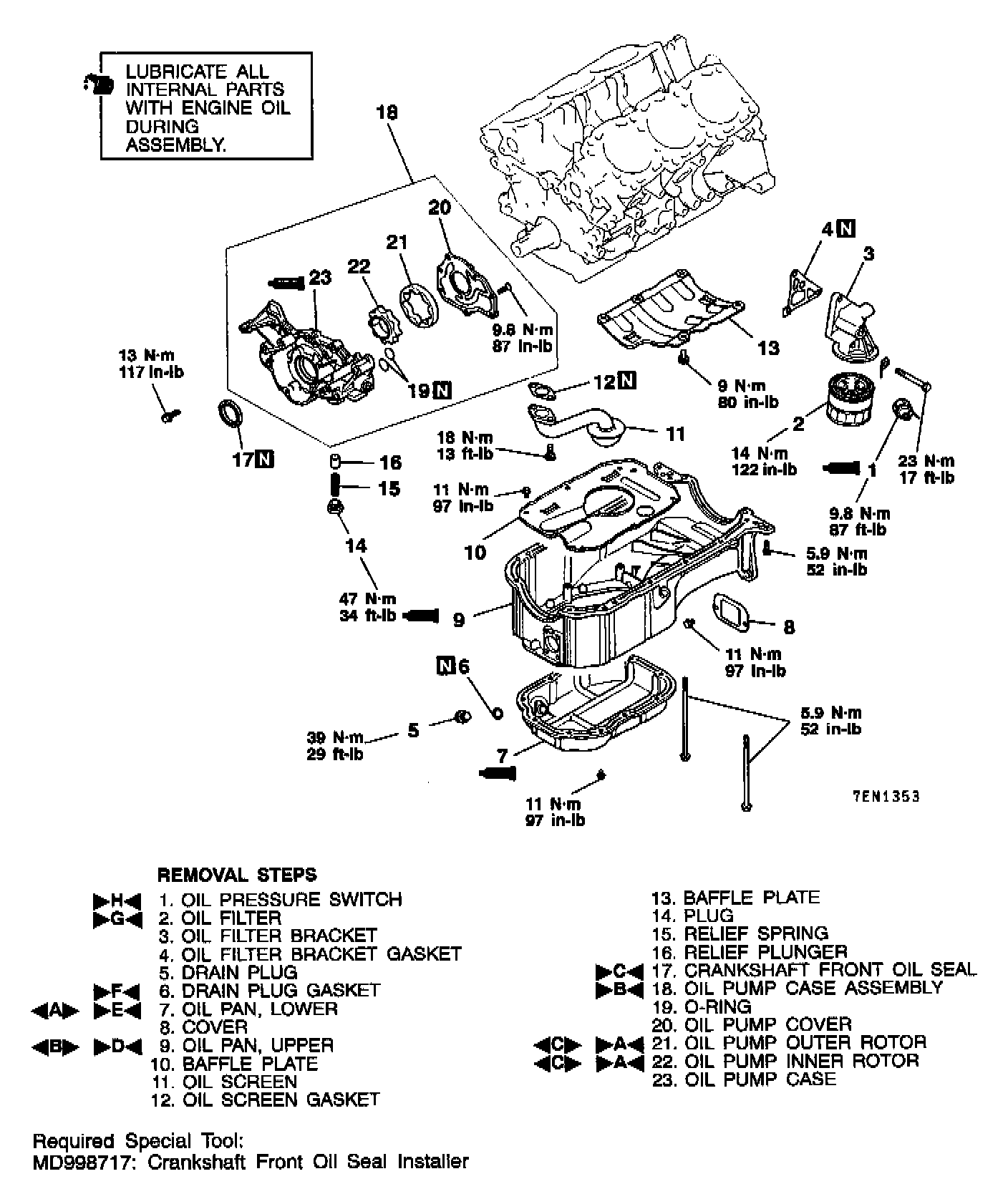

OIL PAN AND OIL PUMP

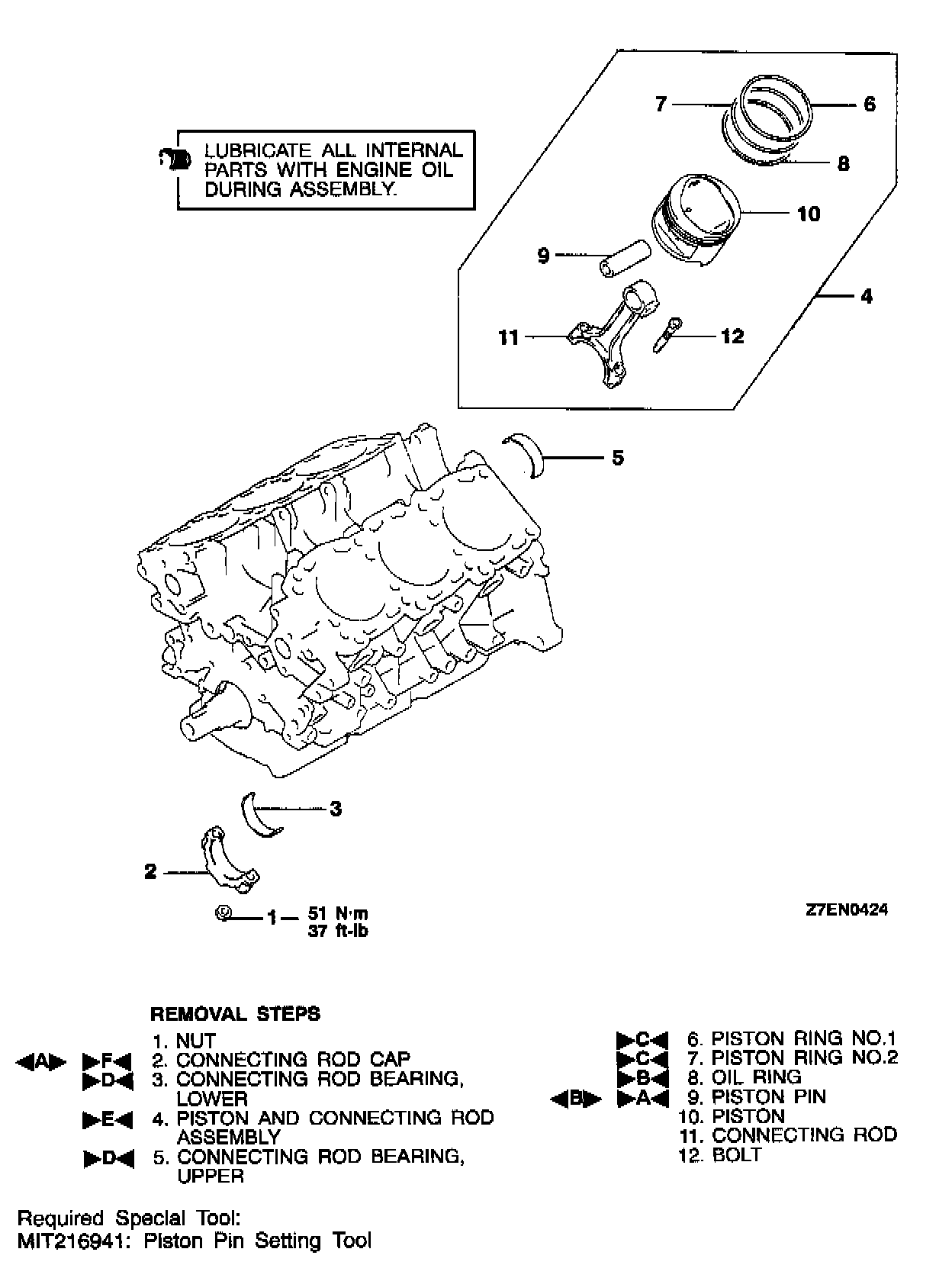

PISTON AND CONNECTING ROD

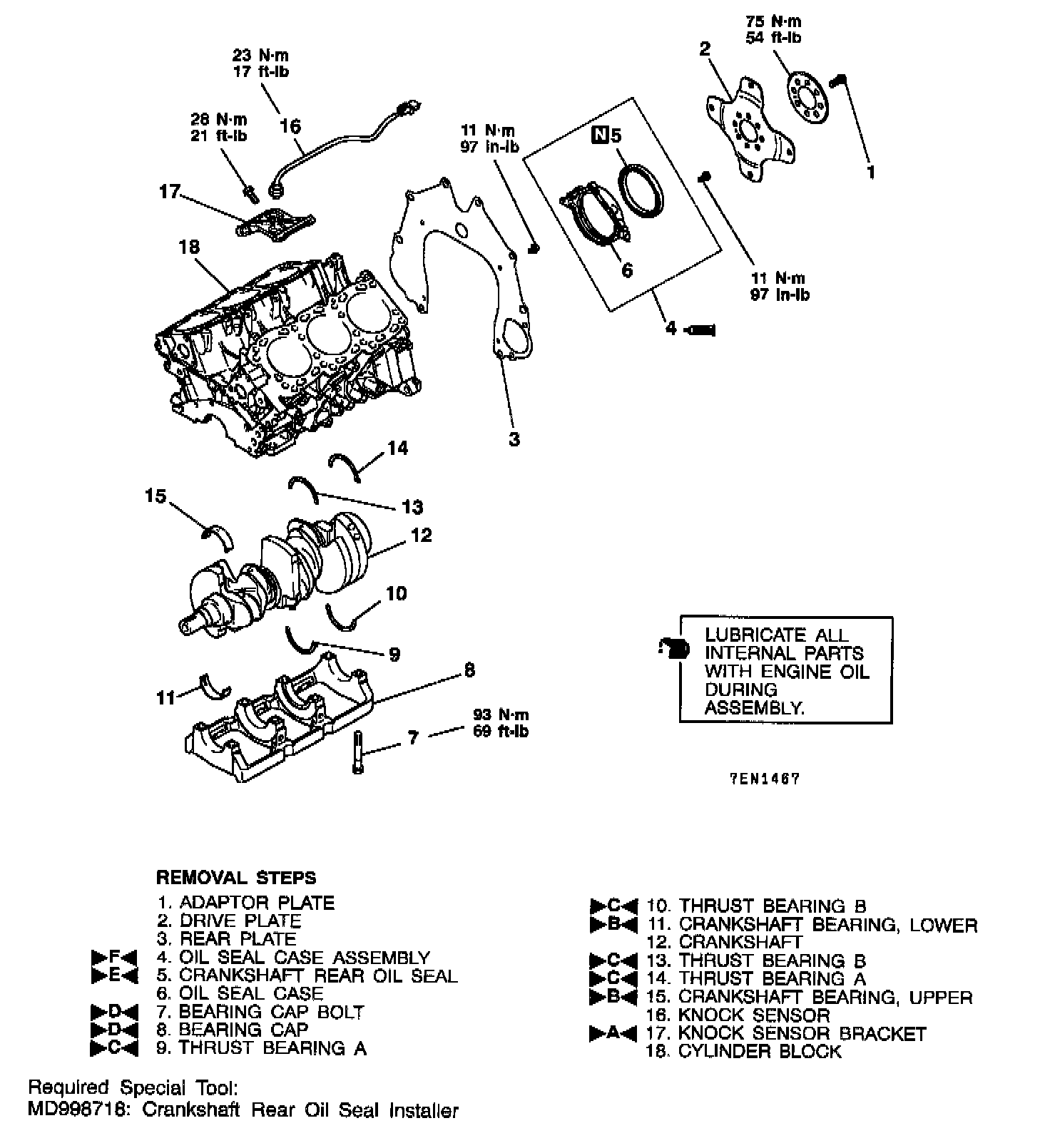

CRANKSHAFT AND DRIVE PLATE
