M/T Technical Data

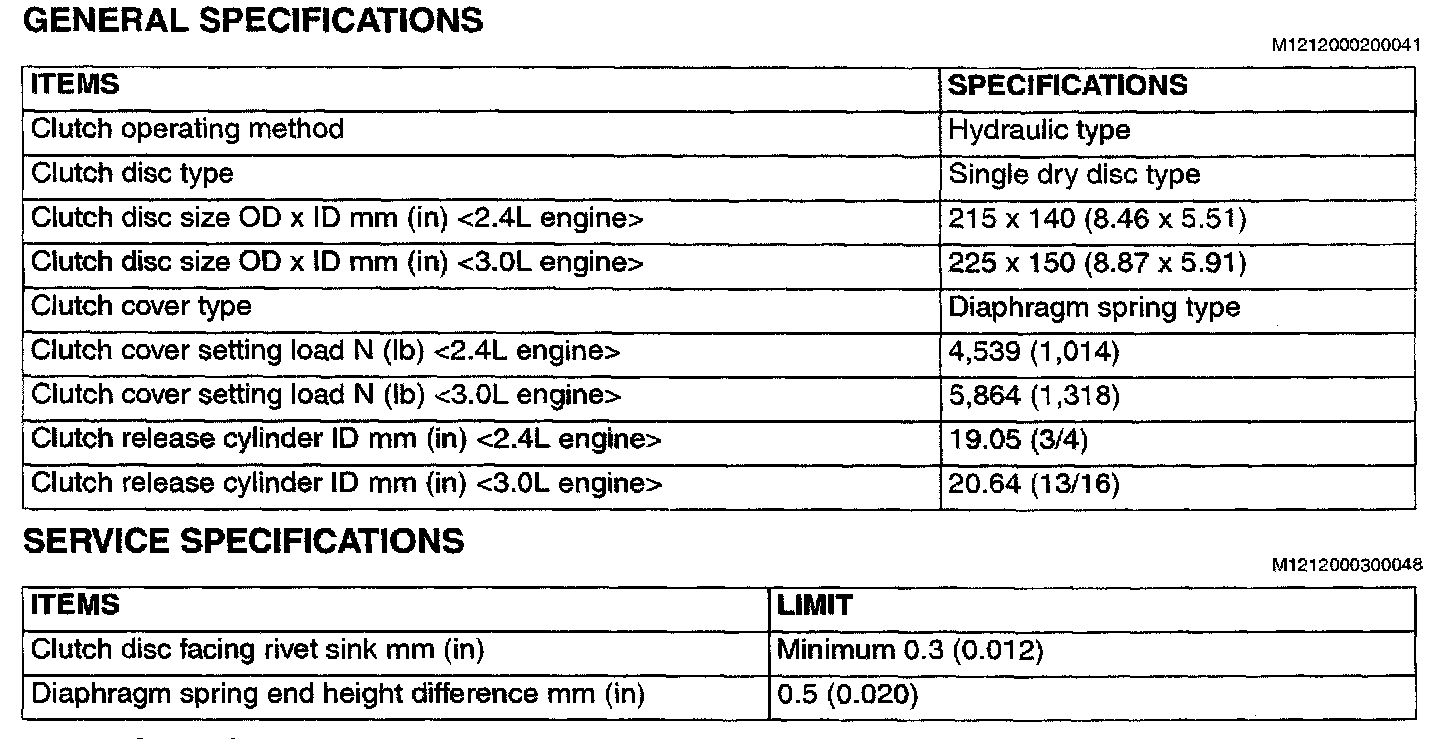

F5M42/F5M51 5-spd M/T, Clutch Dimensions:

F5M42/F5M51 5-spd M/T, Clutch Standard Values ('00):

F5M42/F5M51 5-spd M/T, Gear Ratios:

F5M42/F5M51 5-spd M/T, Standard Values & Limit:

F5M42/F5M51 5-spd M/T, Standard Values & Limits:

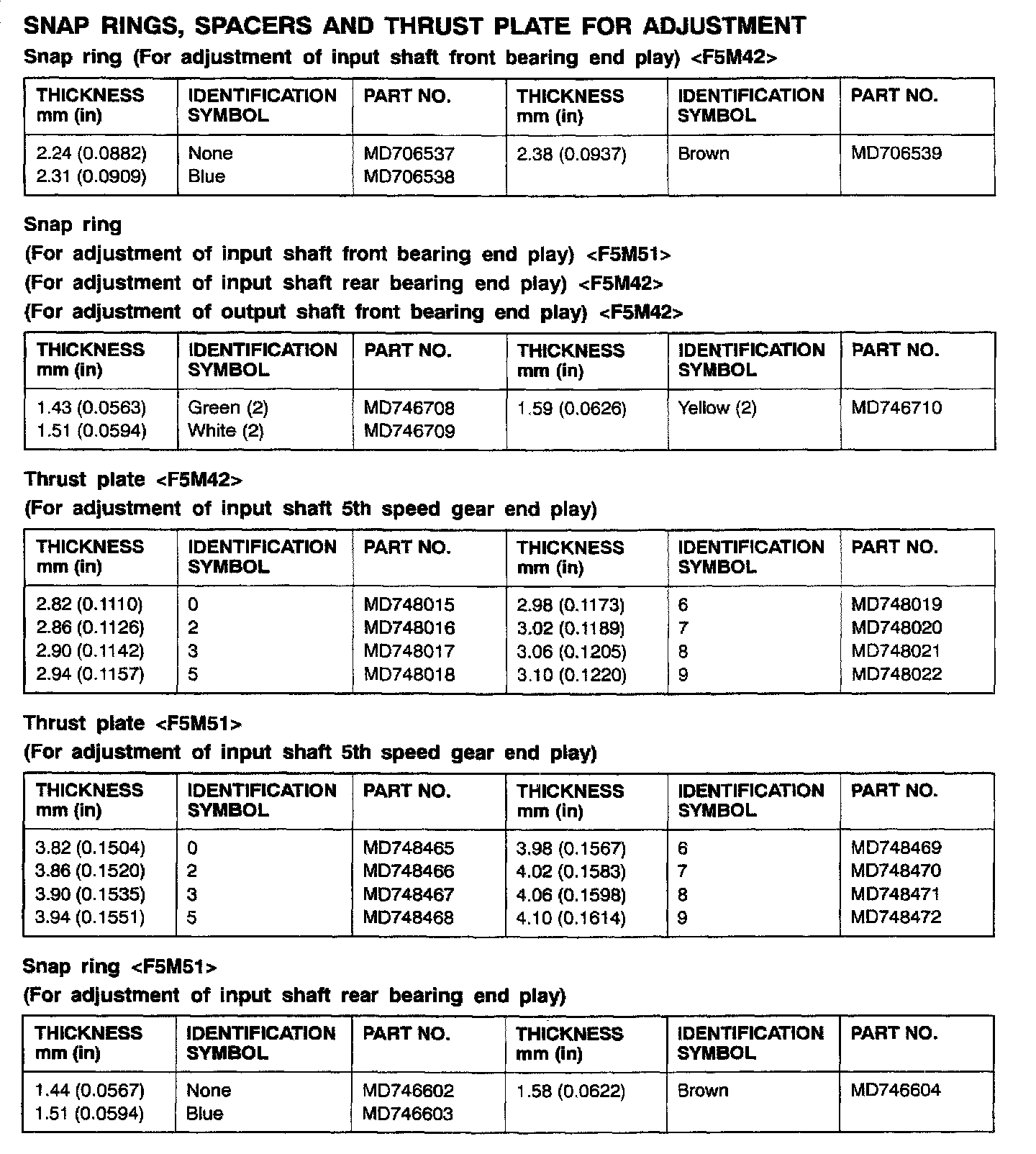

F5M42/F5M51 5-spd M/T, Input Shaft & Output Shaft Bearing End Play:

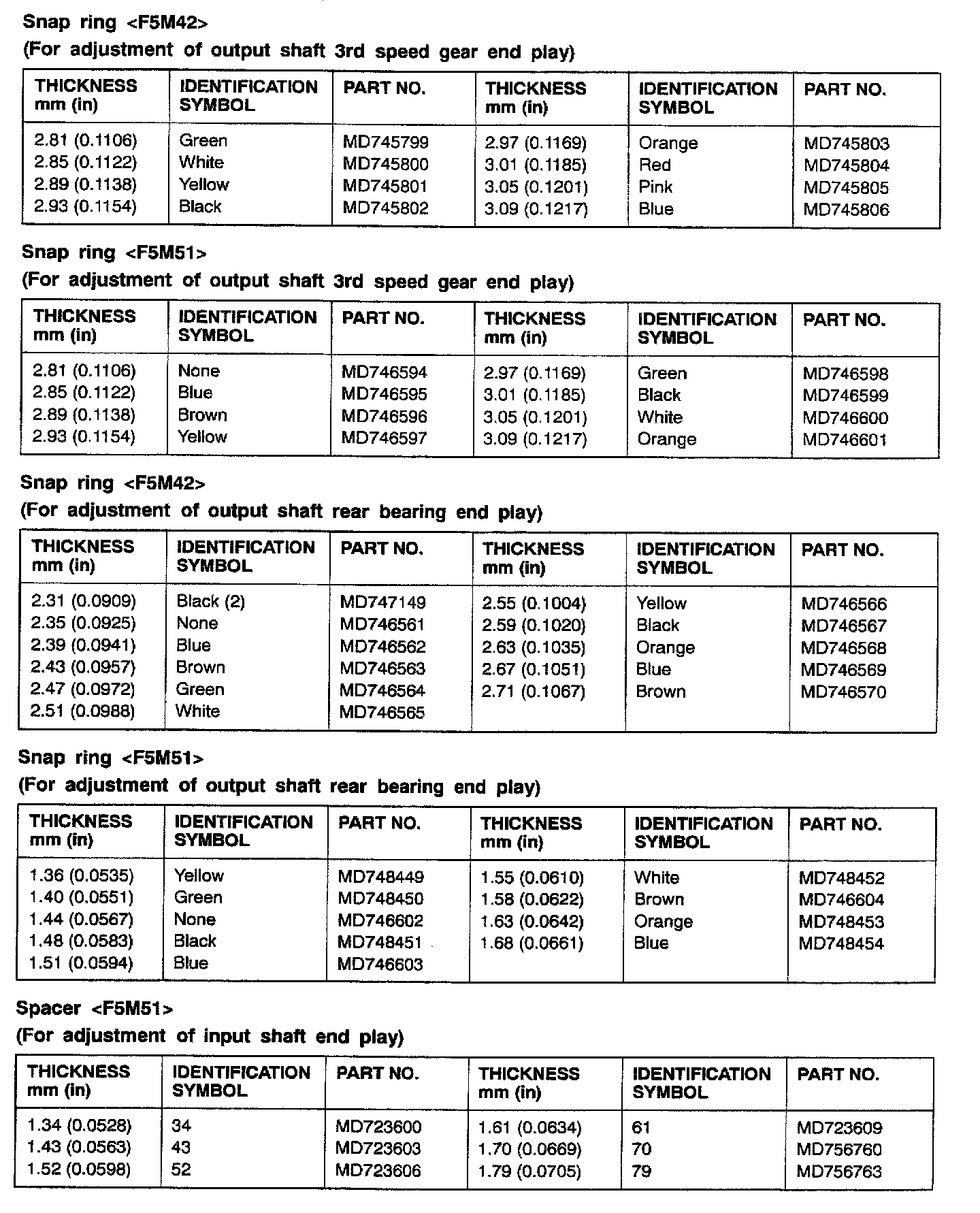

F5M42/F5M51 5-spd M/T, Output Shaft & Input Shaft End Play:

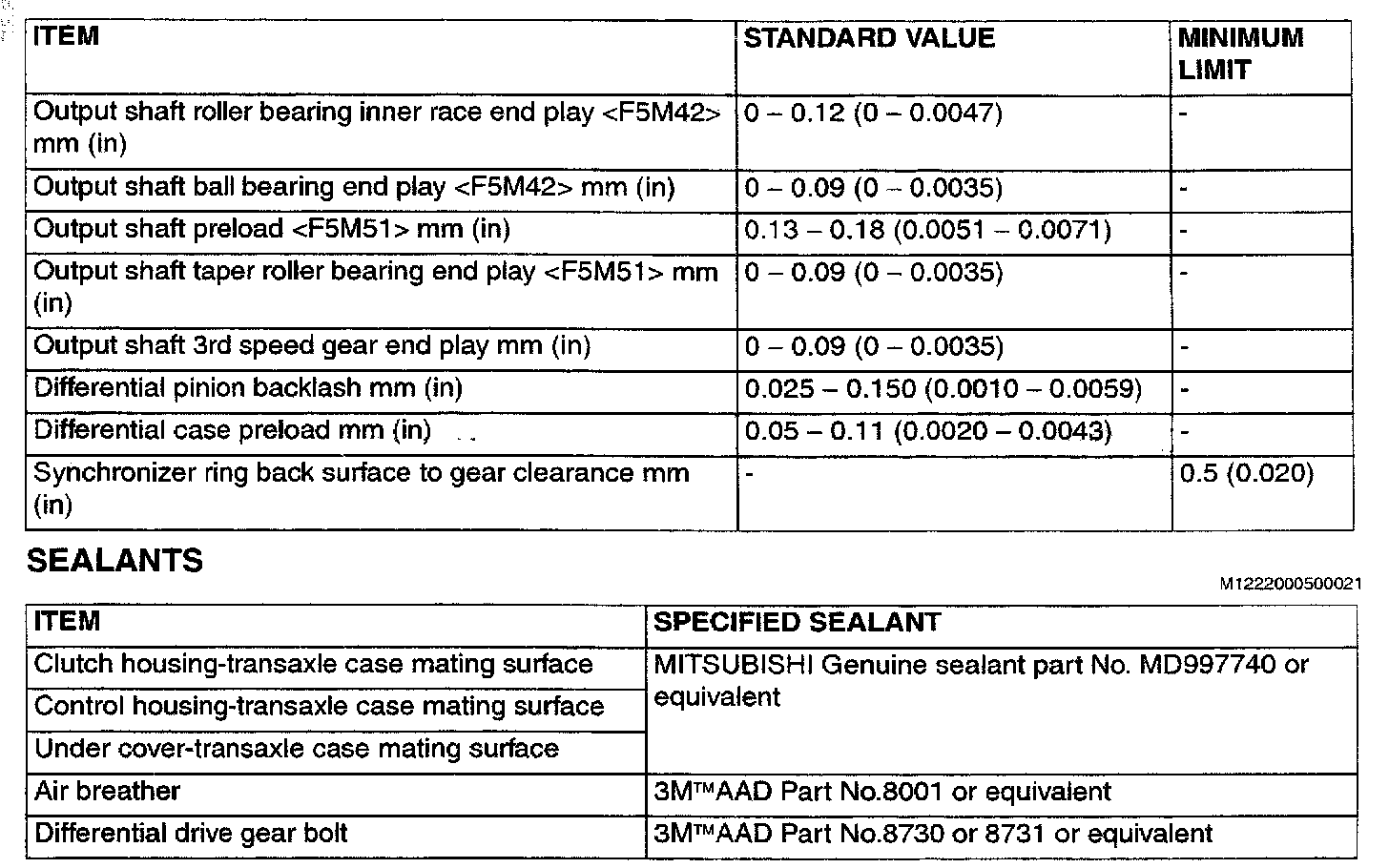

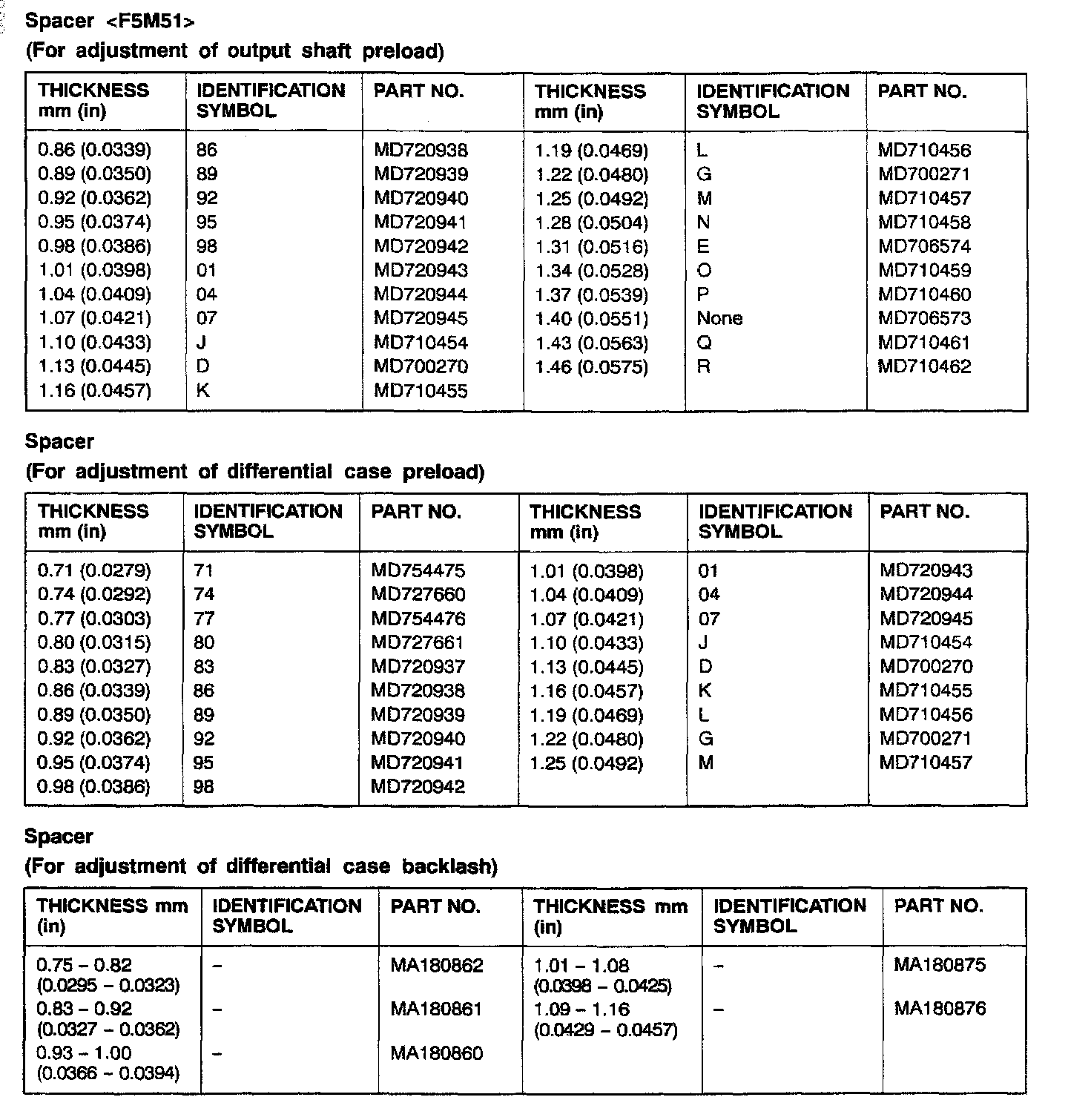

F5M42/F5M51 5-spd M/T, Output Shaft & Differential Preload / Backlash:
