Limit Switch

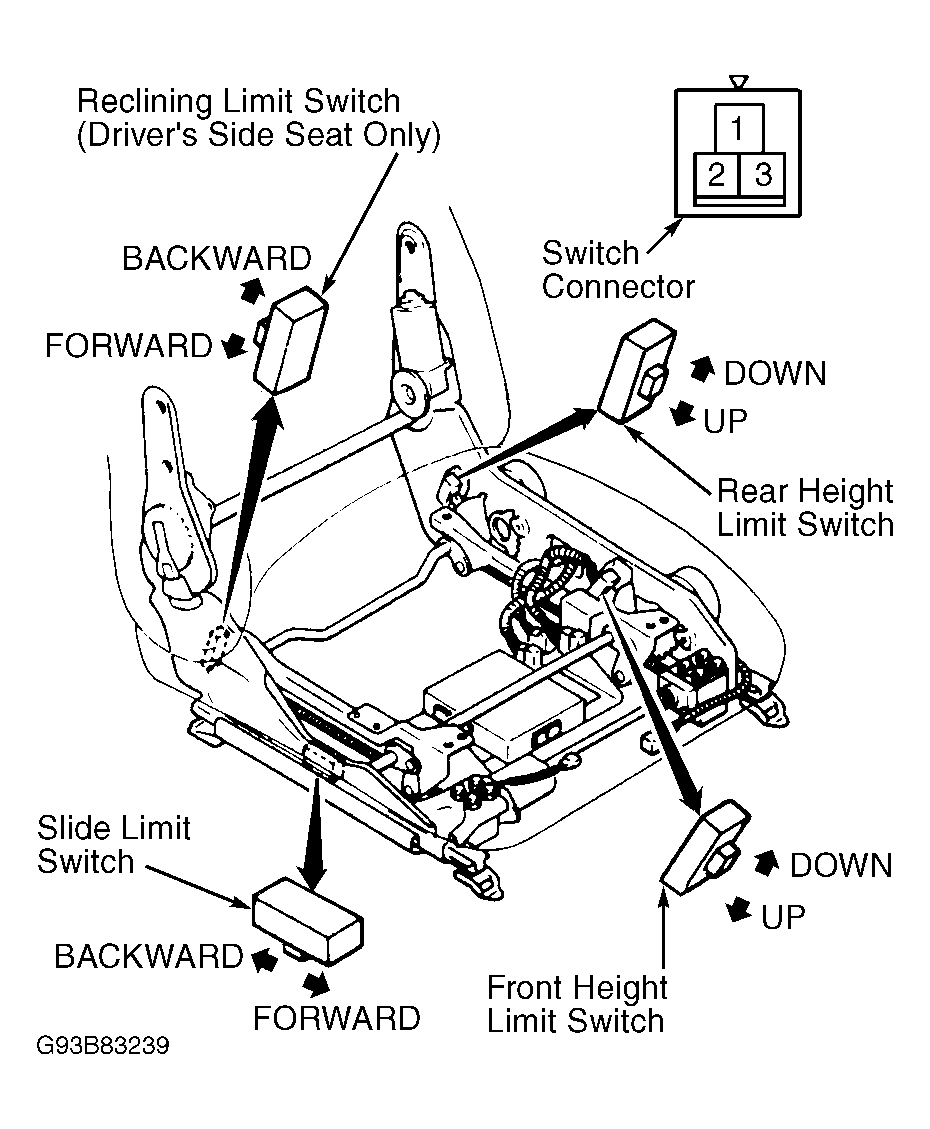

Disconnect limit switch harness connector. Connect ohmmeter and check continuity between specified switch connector terminals. See LIMIT SWITCH CONTINUITY table. See Fig 1 . Replace switch as necessary.
LIMIT SWITCH CONTINUITY
| Switch Position | Check Continuity Between Terminals No. | |
|---|---|---|
| Front & Rear Height Limit Switch | ||
| UP | 1 & 2 | |
| DOWN | 1 & 3 | |
| All Limit Switches Middle (ON) | 1, 2 & 3 | |
