DTC P0705: Transmission Range Sensor Circuit Failure
>>
Diagnostic Detection Logic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Detection Logic
For diagnostic detection logic, see
Fig 1
.

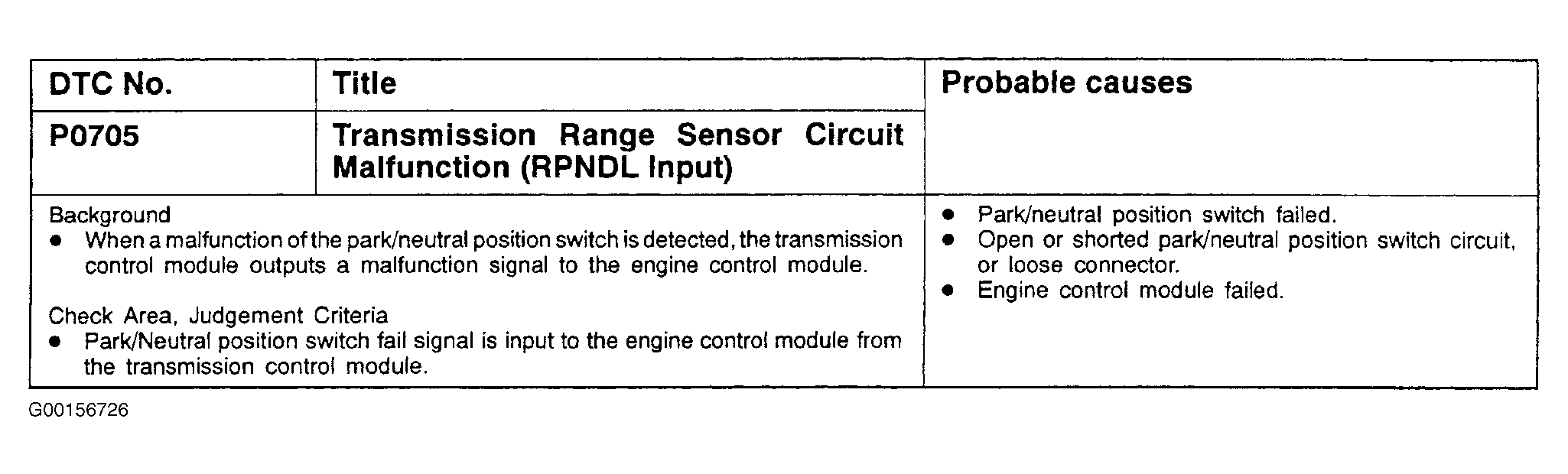

Fig 1: P0705: Transmission Range Sensor Circuit Malfunction - RPNDL Input (Diagnostic Detection Logic)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
