Engine Compartment: Notes

For engine compartment fuse block locations, see Fig 1 -Fig 3 .

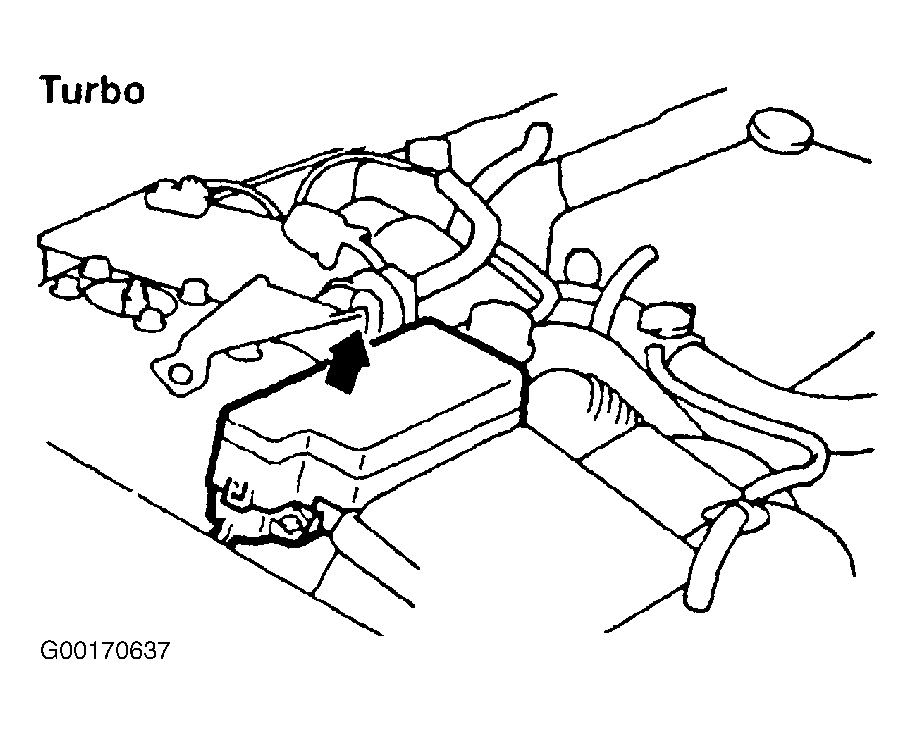

Fig 1: Locating Engine Compartment Fuse Block (Turbo, 2.0L)
G00170637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

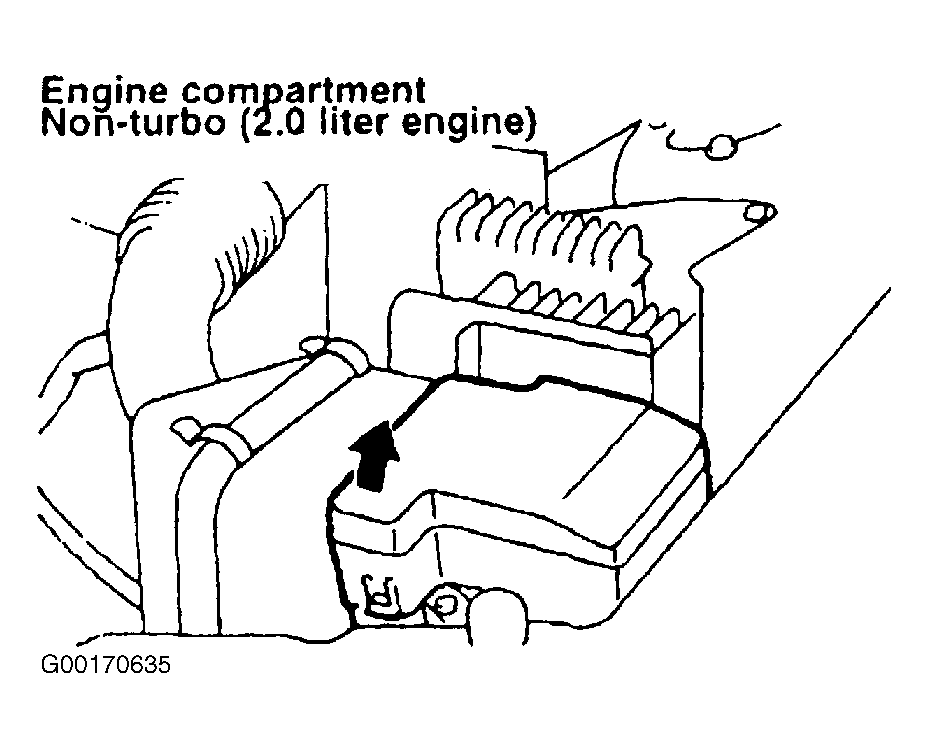

Fig 2: Locating Engine Compartment Fuse Block (Non-Turbo, 2.0L)
G00170635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

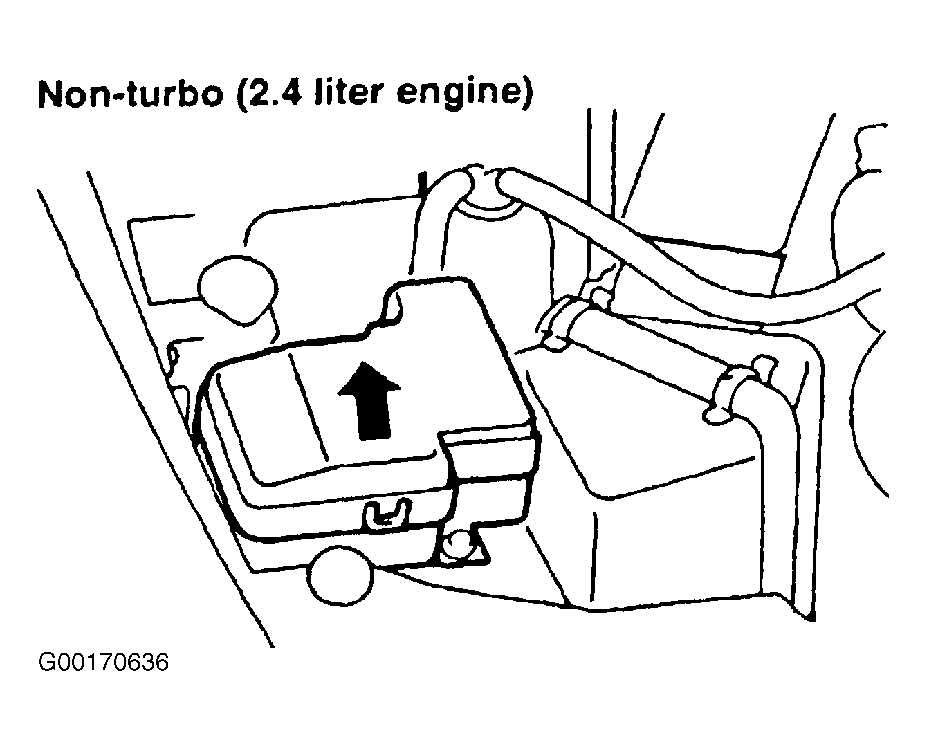

Fig 3: Locating Engine Compartment Fuse Block (Non-Turbo, 2.4L)
G00170636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
