Circuit Testing: Notes
CAUTION:
Ensure ignition switch is in OFF position when connecting or disconnecting component connectors.
CAUTION:
When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.
NOTE:

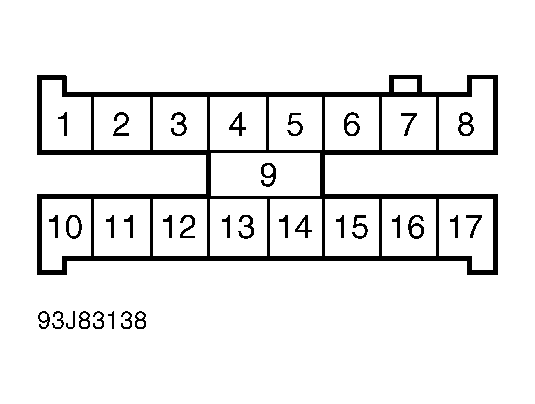

See Figure
-Figure
for ETACS-ECU and other connector terminals. For wiring diagram, see WIRING DIAGRAMS
.
