Vehicle Speed Sensor

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Connect ohmmeter between terminals No. 1 and 10. SeeFig 1 . Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace sensor.

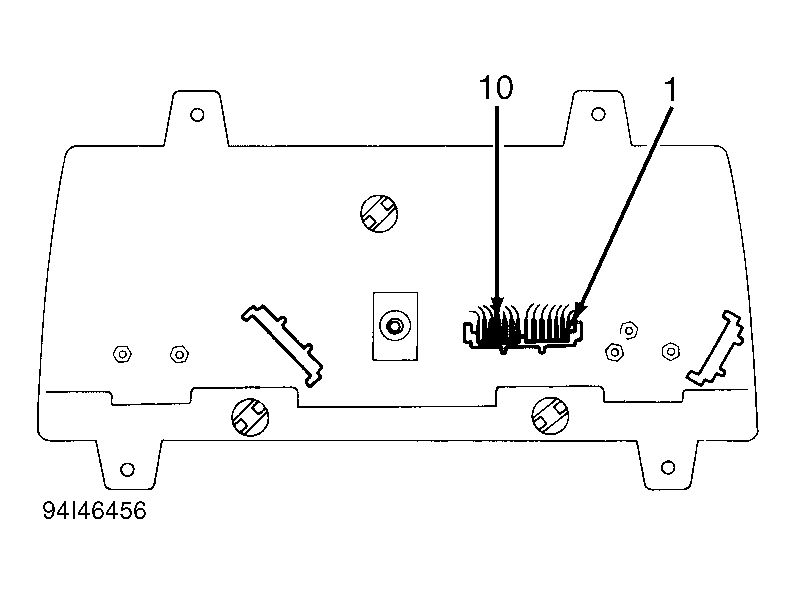

Fig 1: Checking Speed Sensor Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
