Connector and Ground Indicators

Connector/Ground Indications:





Connector/Grounding Indications

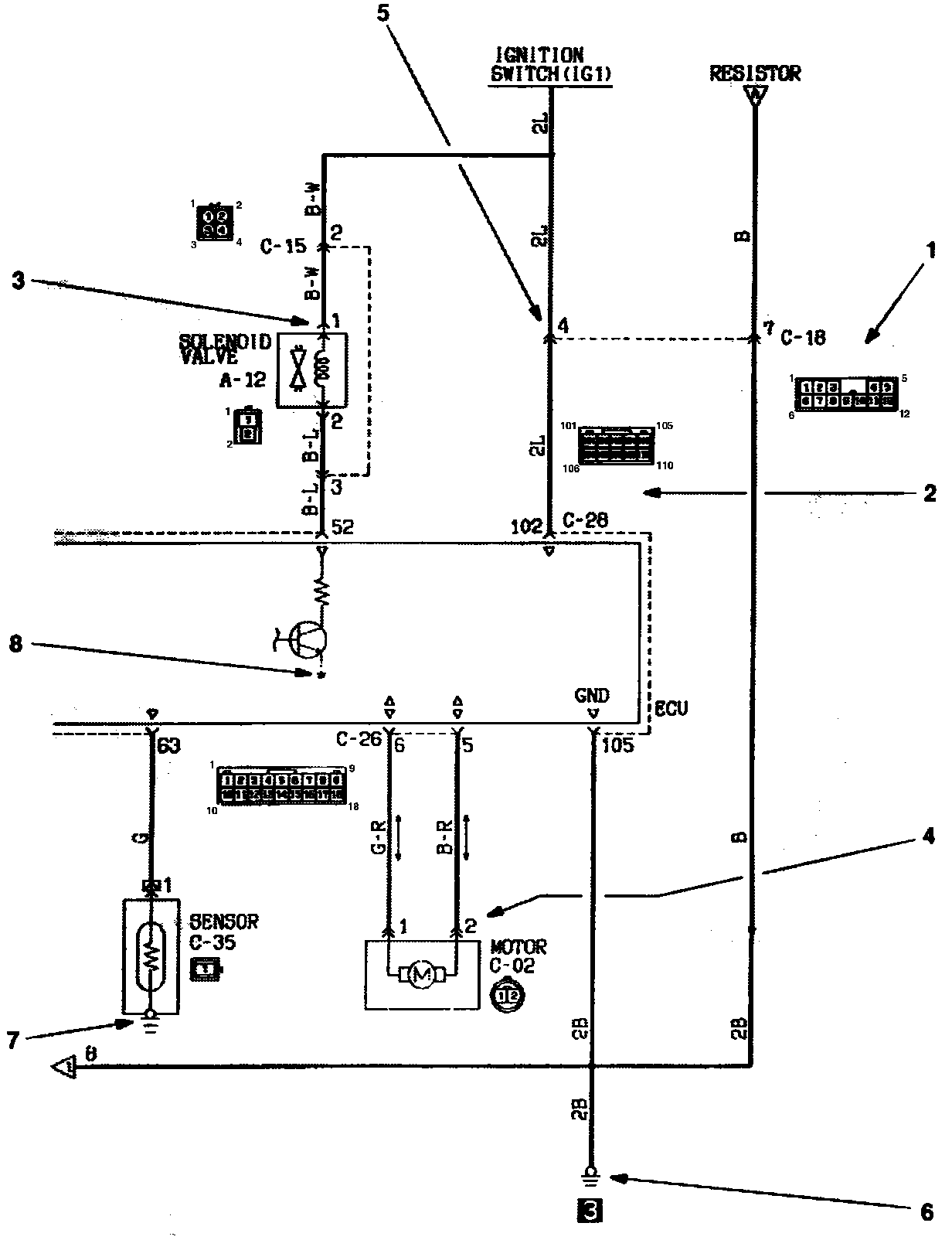

Connector Marking:





Connector Markings

Connector Symbol Marking:





Connector Symbol Markings

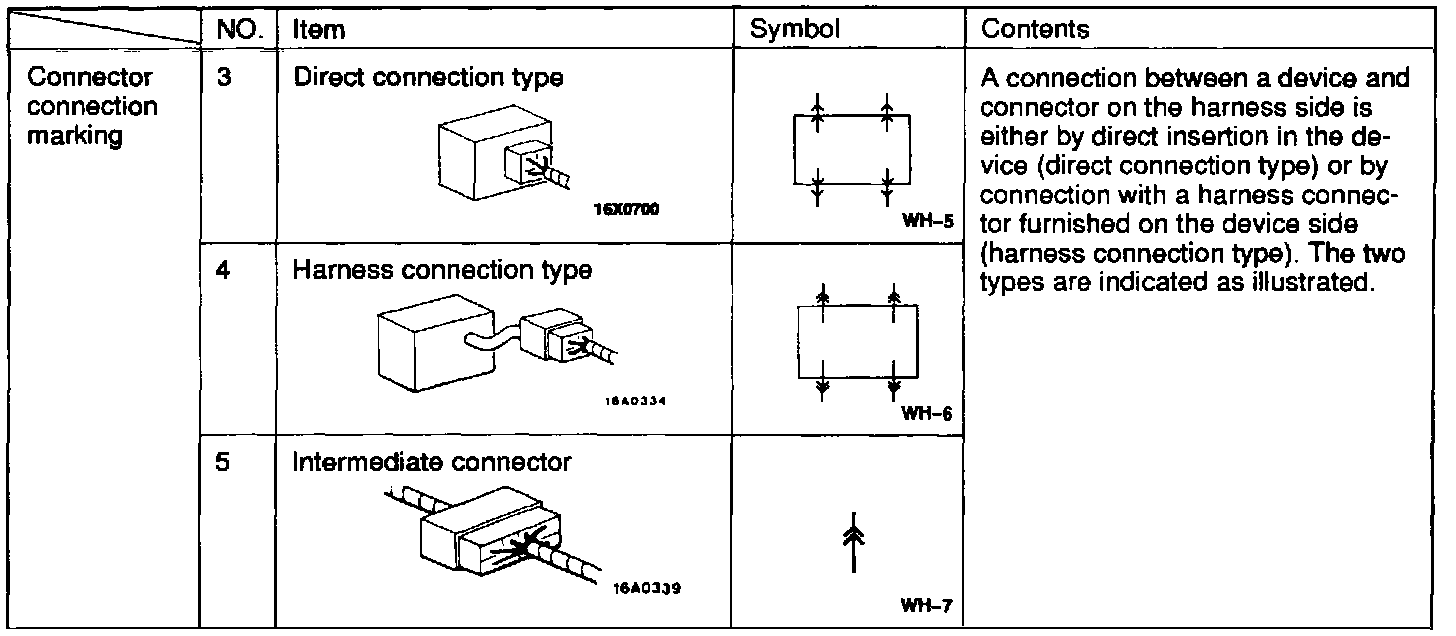

Connector Connection Marking:





Connector Connection Markings

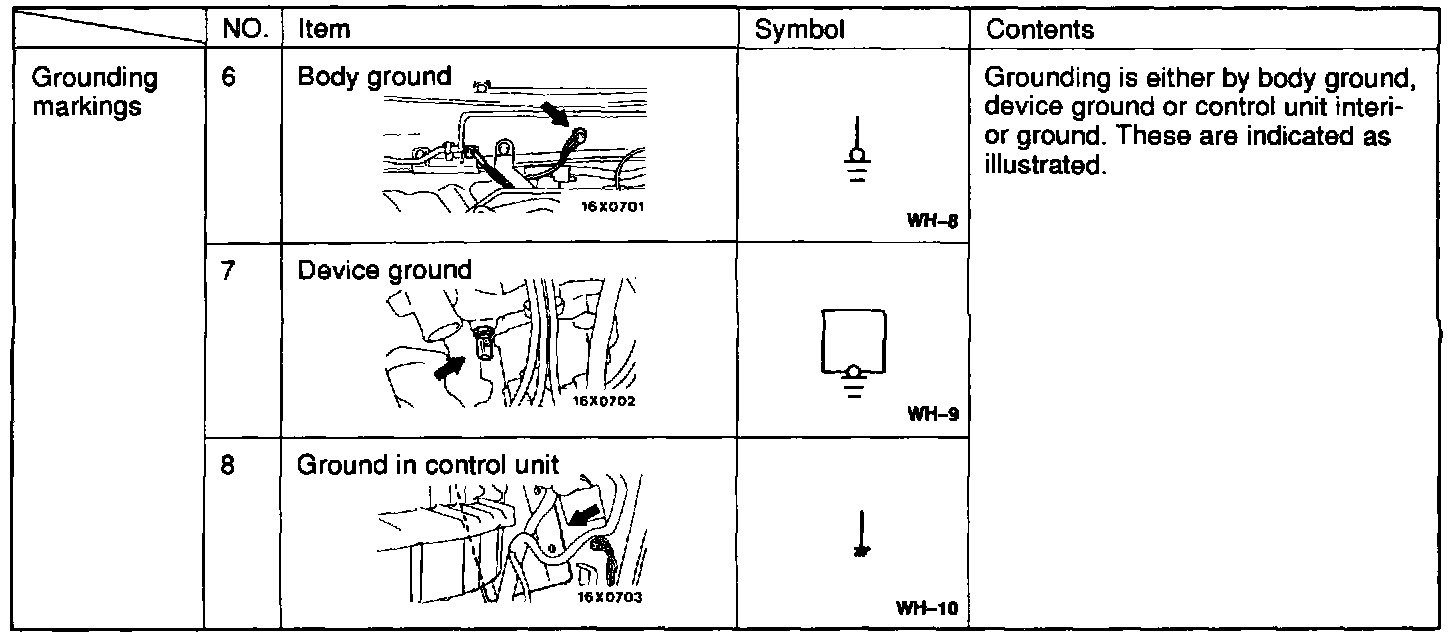

Grounding Markings:





Grounding Markings
