General Specifications

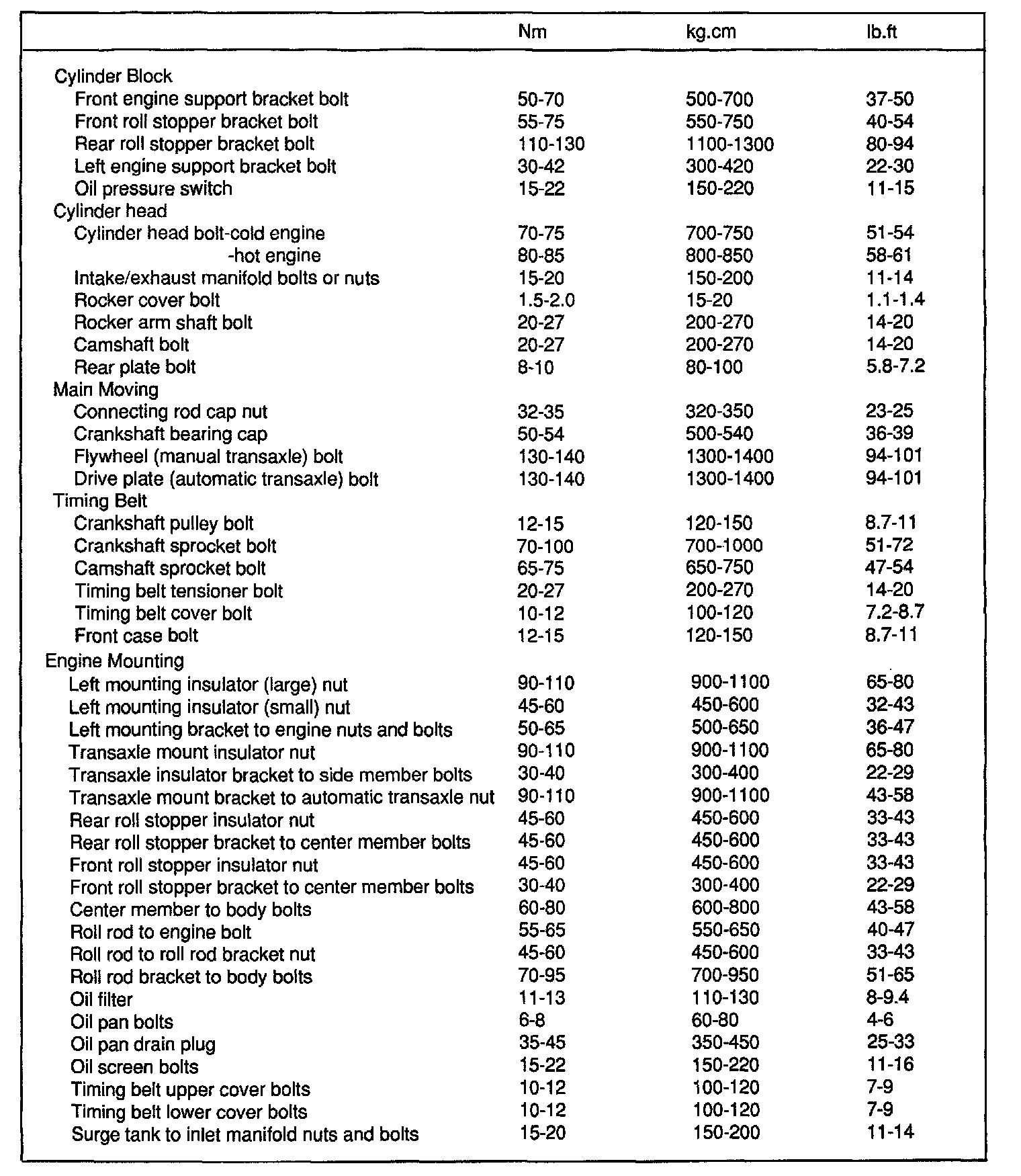

TIGHTENING TORQUE





CYLINDER HEAD REMOVAL





CYLINDER HEAD INSTALLATION

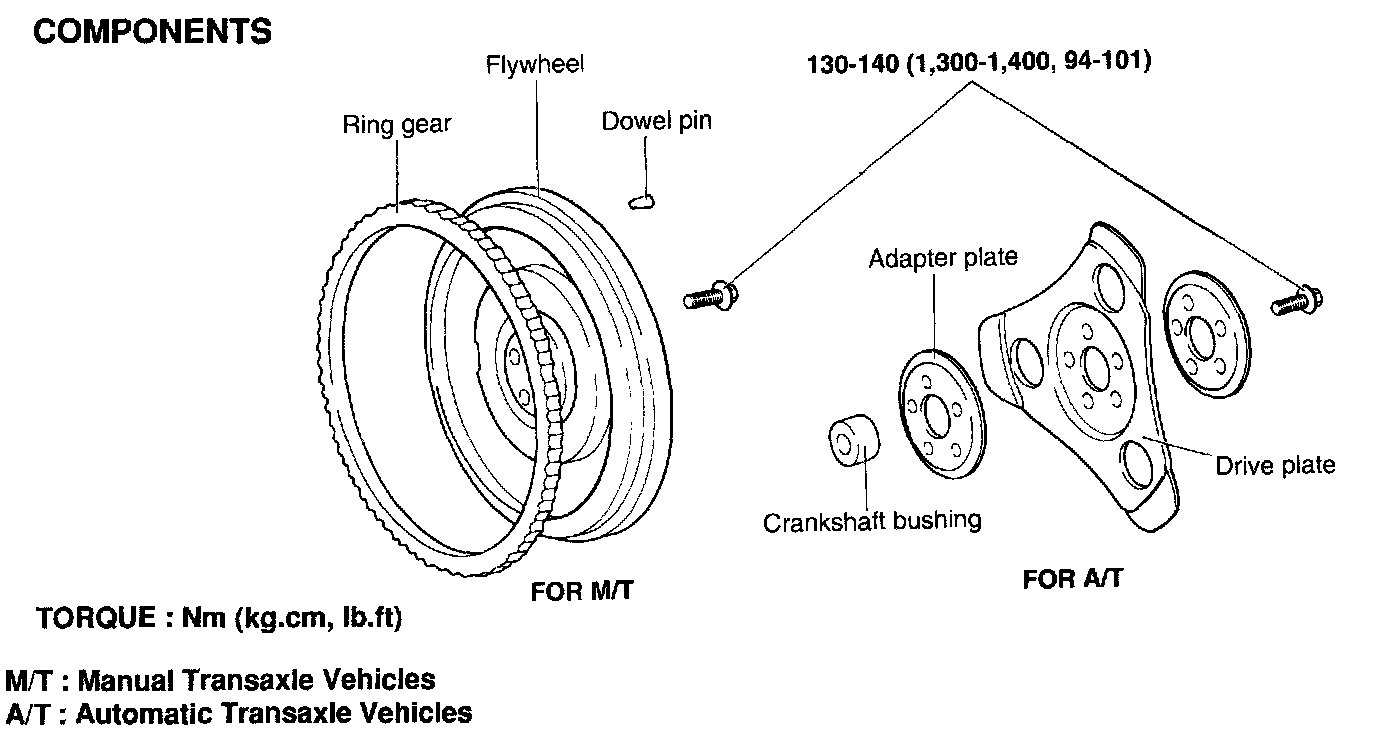

FLEX PLATE/FLYWHEEL INSTALLATION
