Tools - Multi Use Tester-II Application

NO.: TSB-93-00-004

DATE: May, 1993

MODEL: See below

SUBJECT:
MULTI-USE TESTER-II
APPLICATION

PURPOSE

This bulletin lists vehicles and systems which can be tested using the Mitsubishi Scan Tool: Multi-Use Tester-II (MUT-II). The MUT-II can be used in place of the earlier Multi-Use Tester. The MUT-II MUST be used for accessing ECM information on 1994 model year vehicles.

MUT-II VEHICLE APPLICATIONS

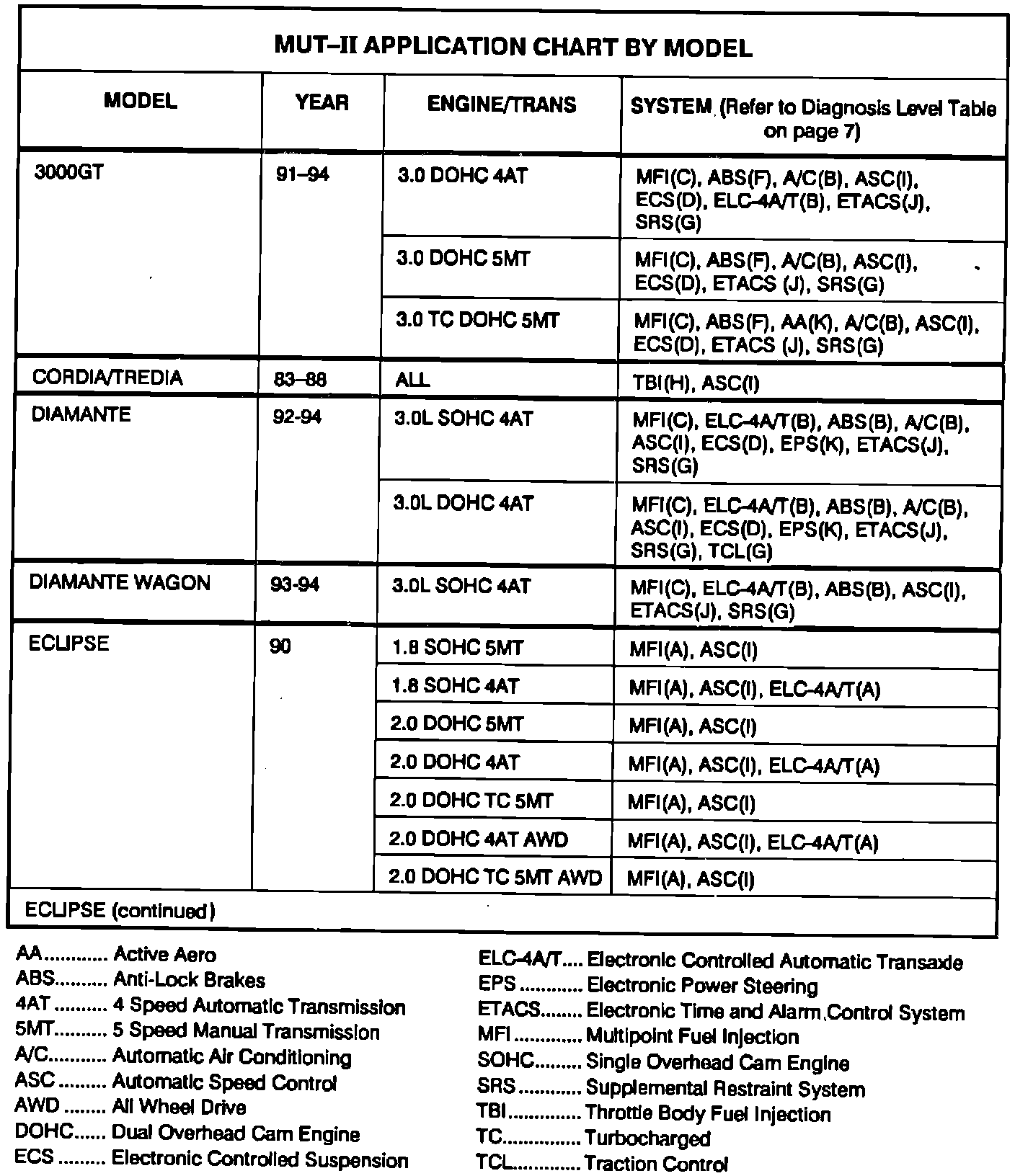

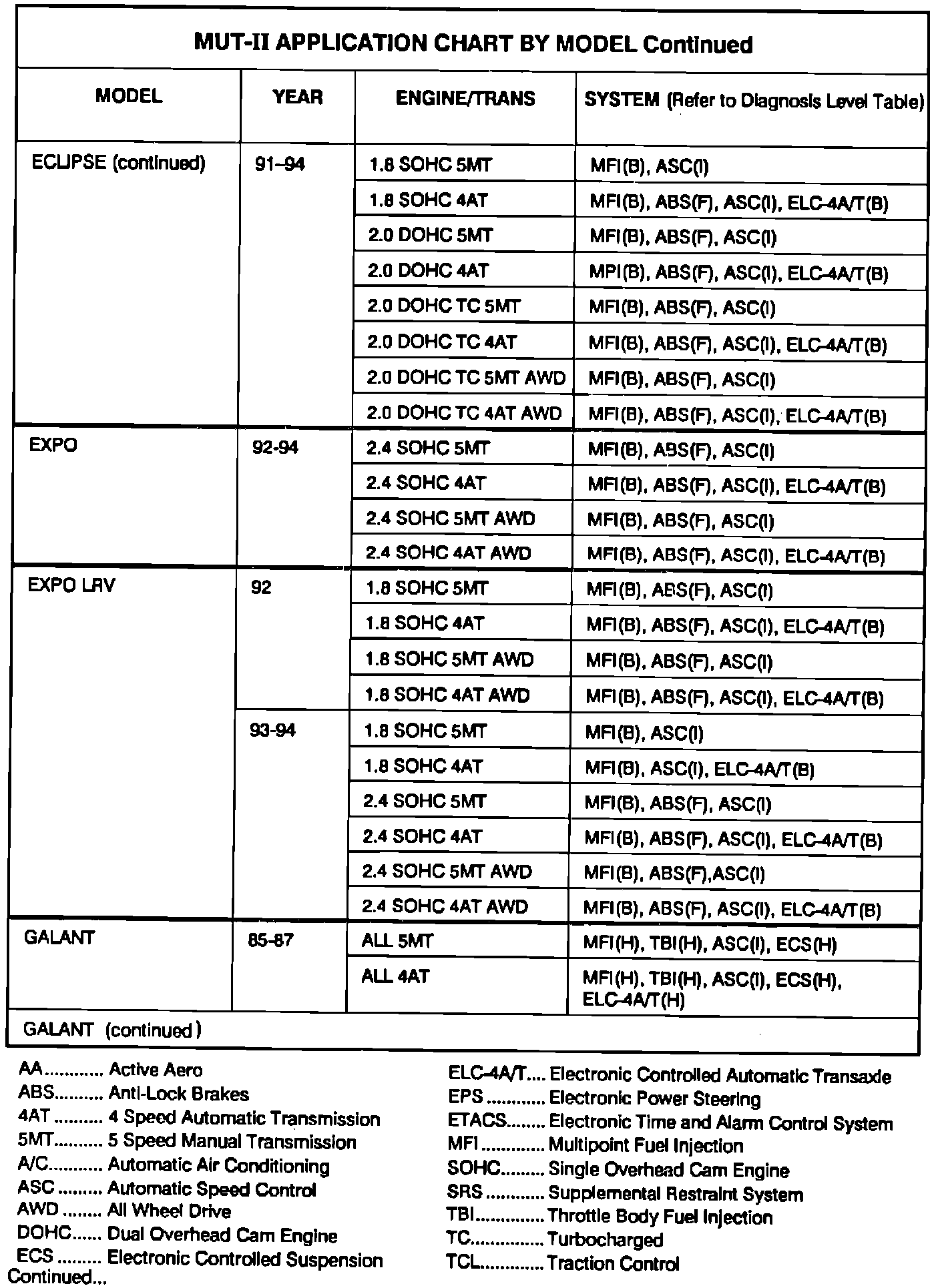

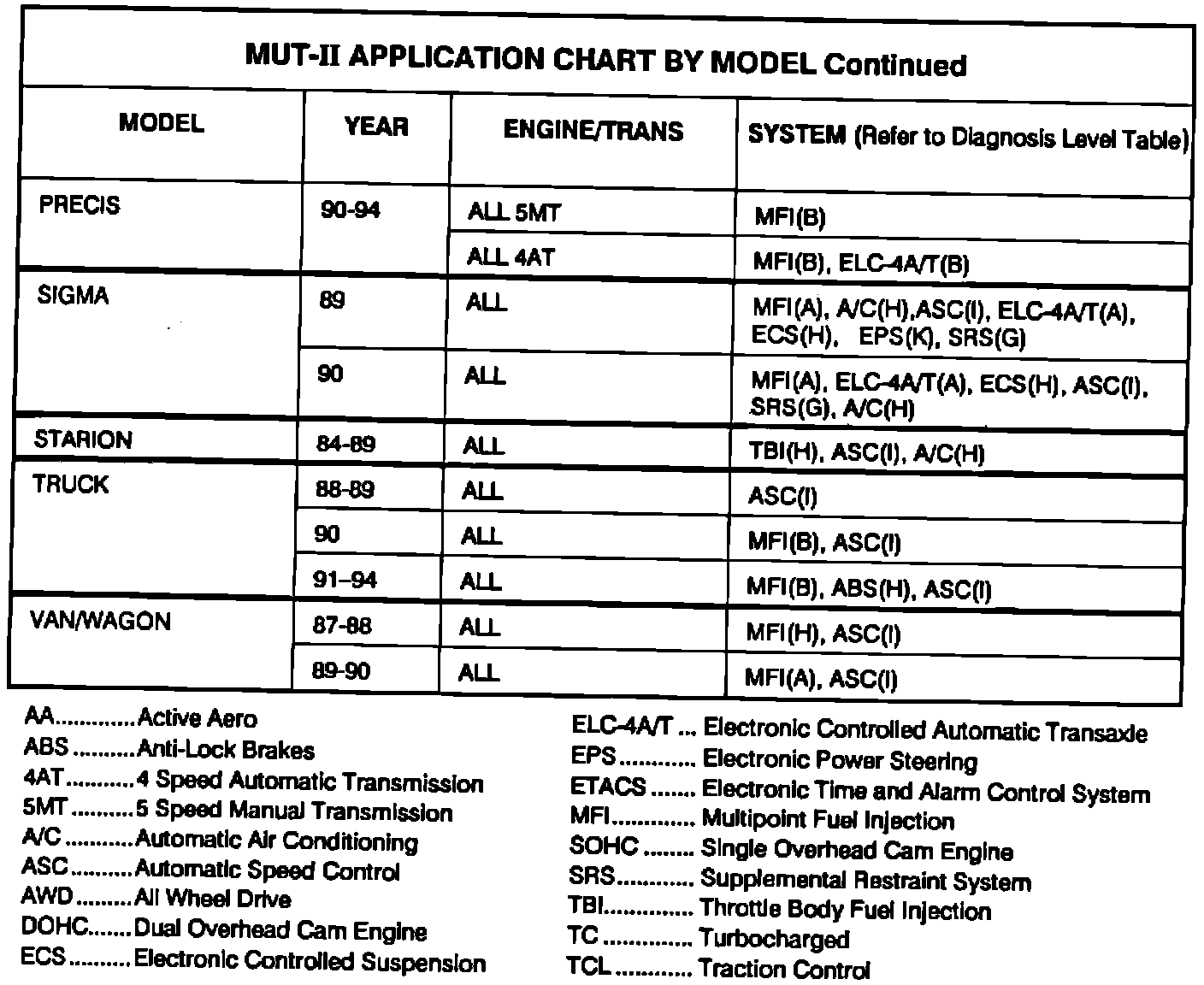

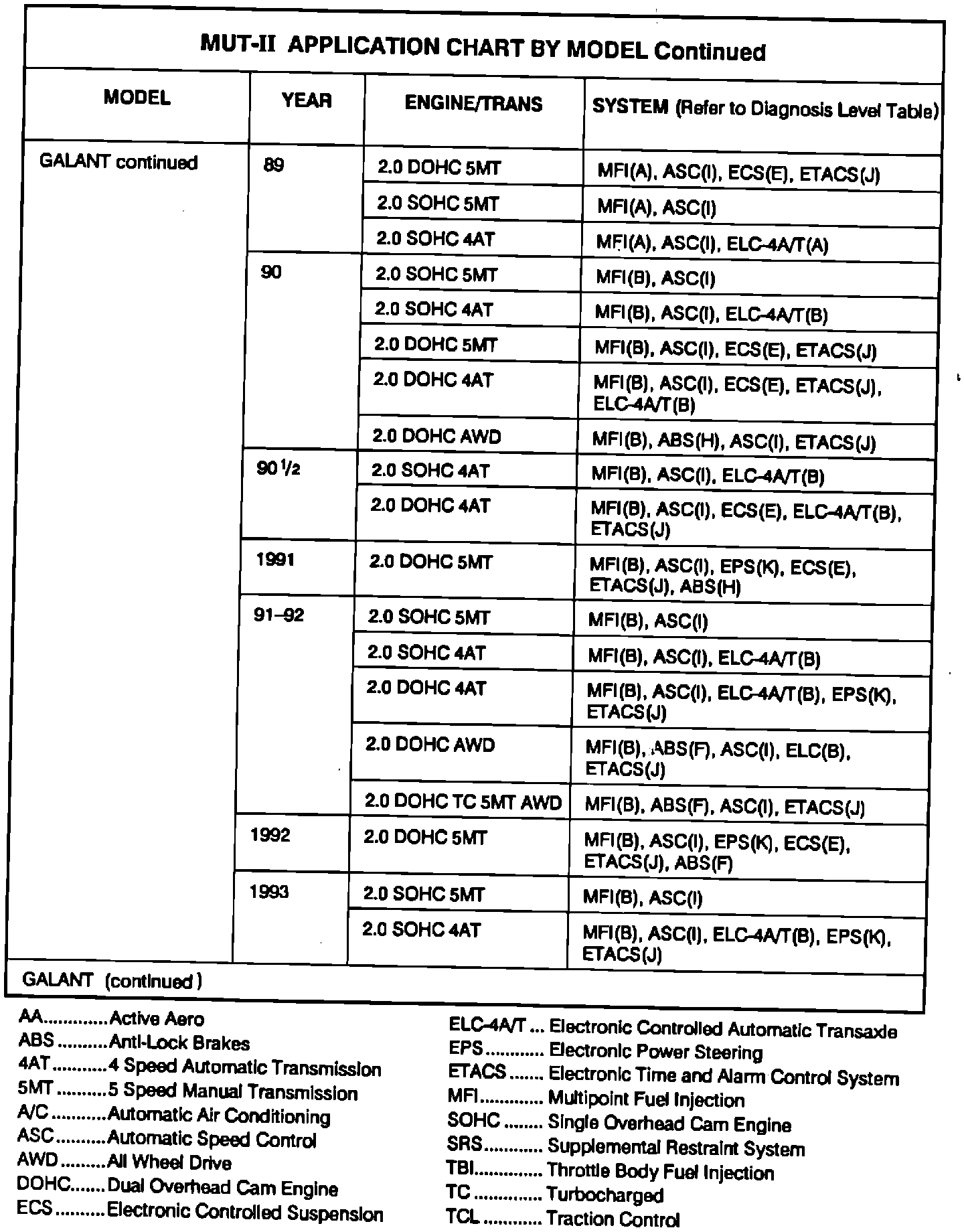

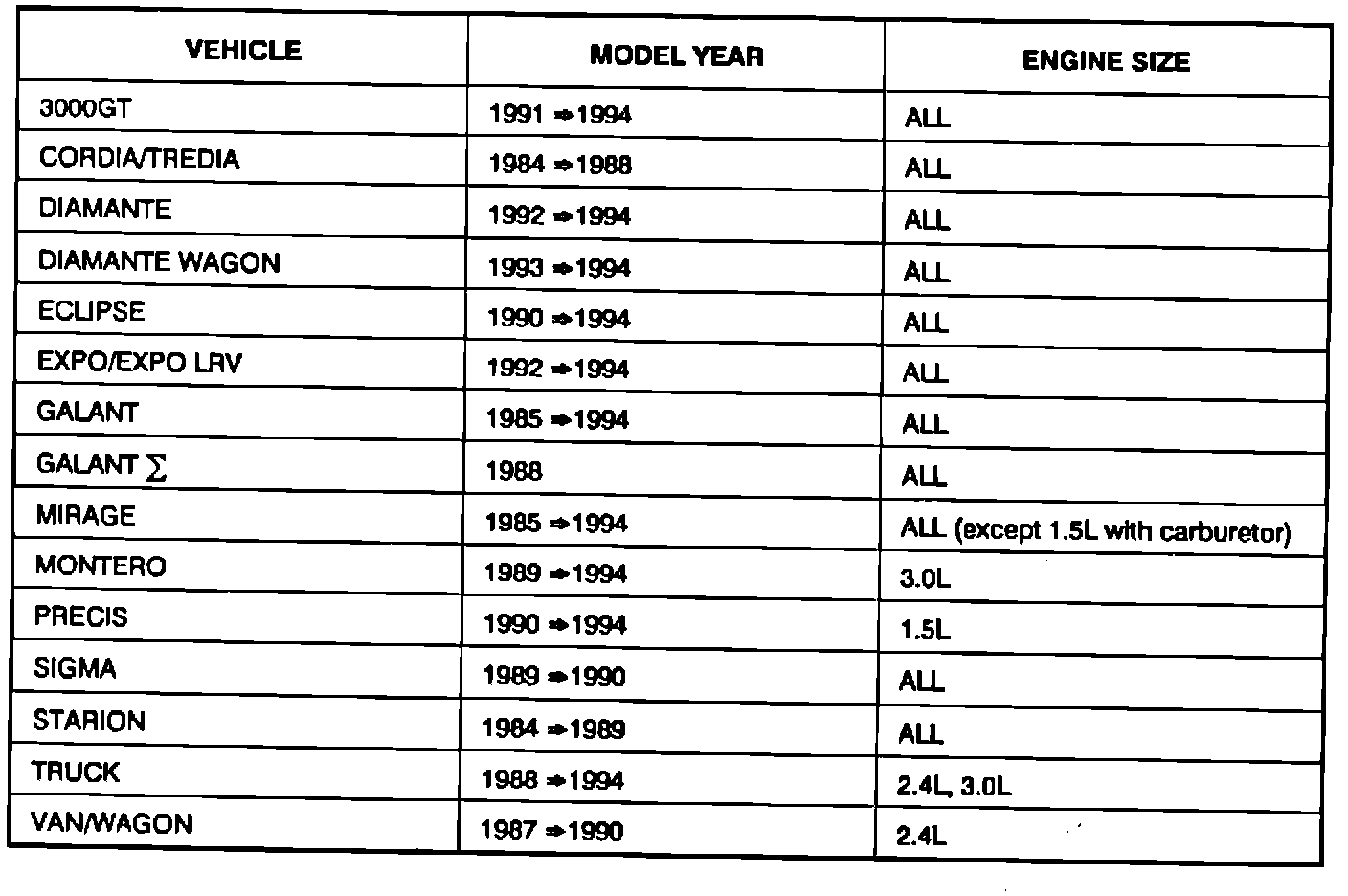

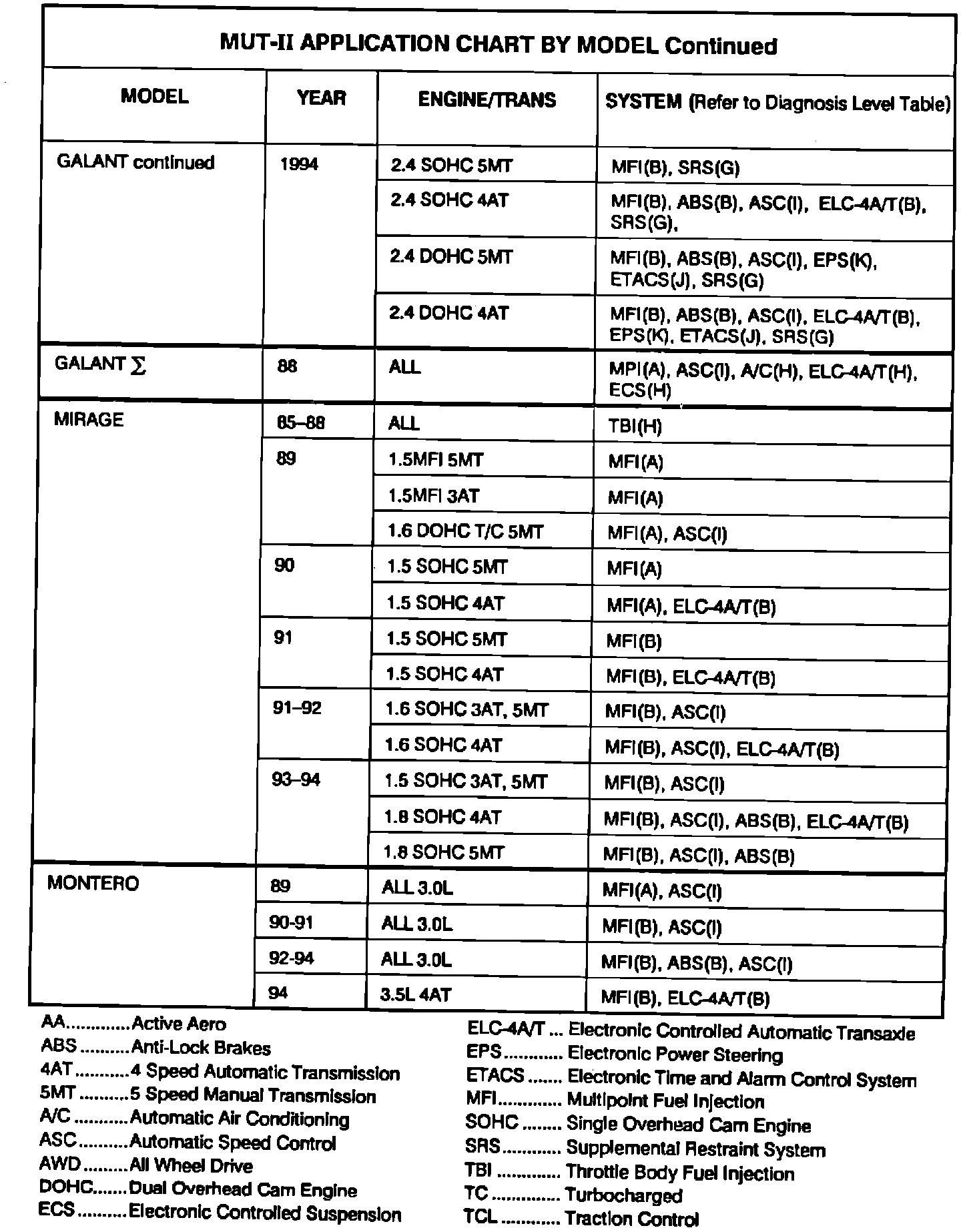

The MUT-II can be used on the vehicles: (see illustration)

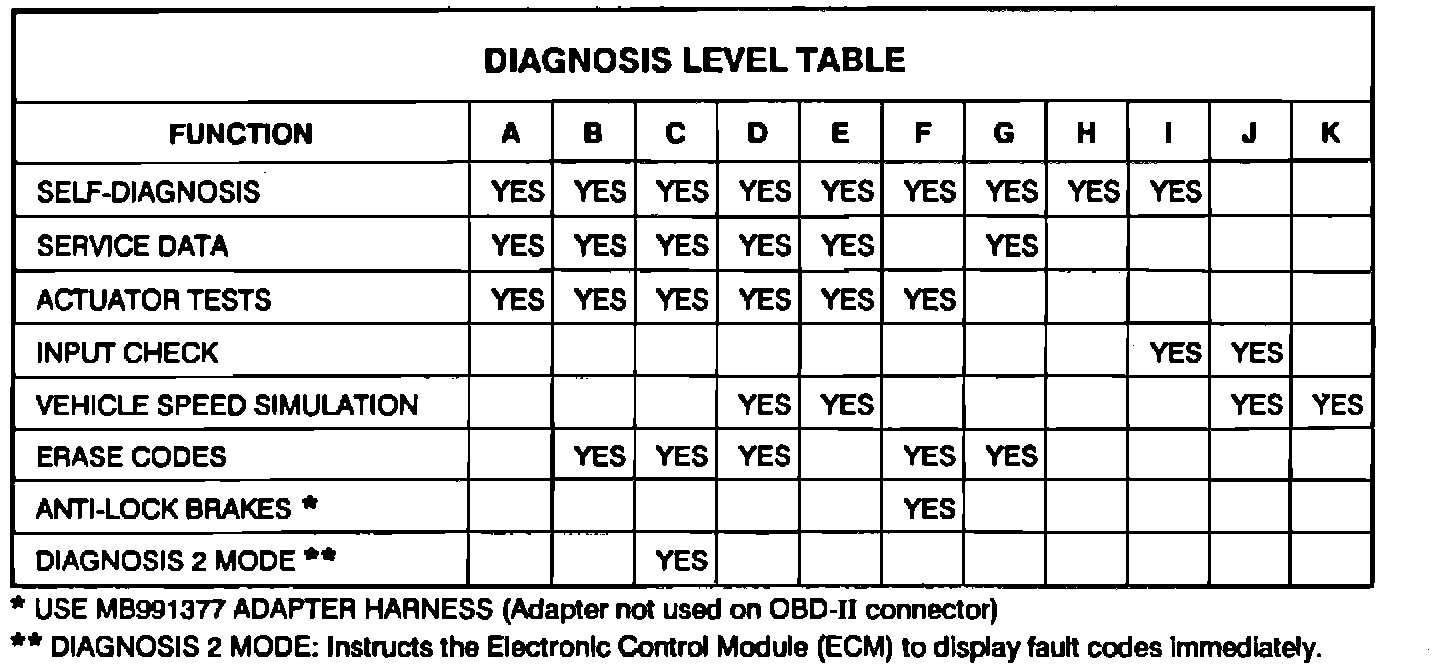

Diagnosis Level Table





MUT-II Adapter Harness Application

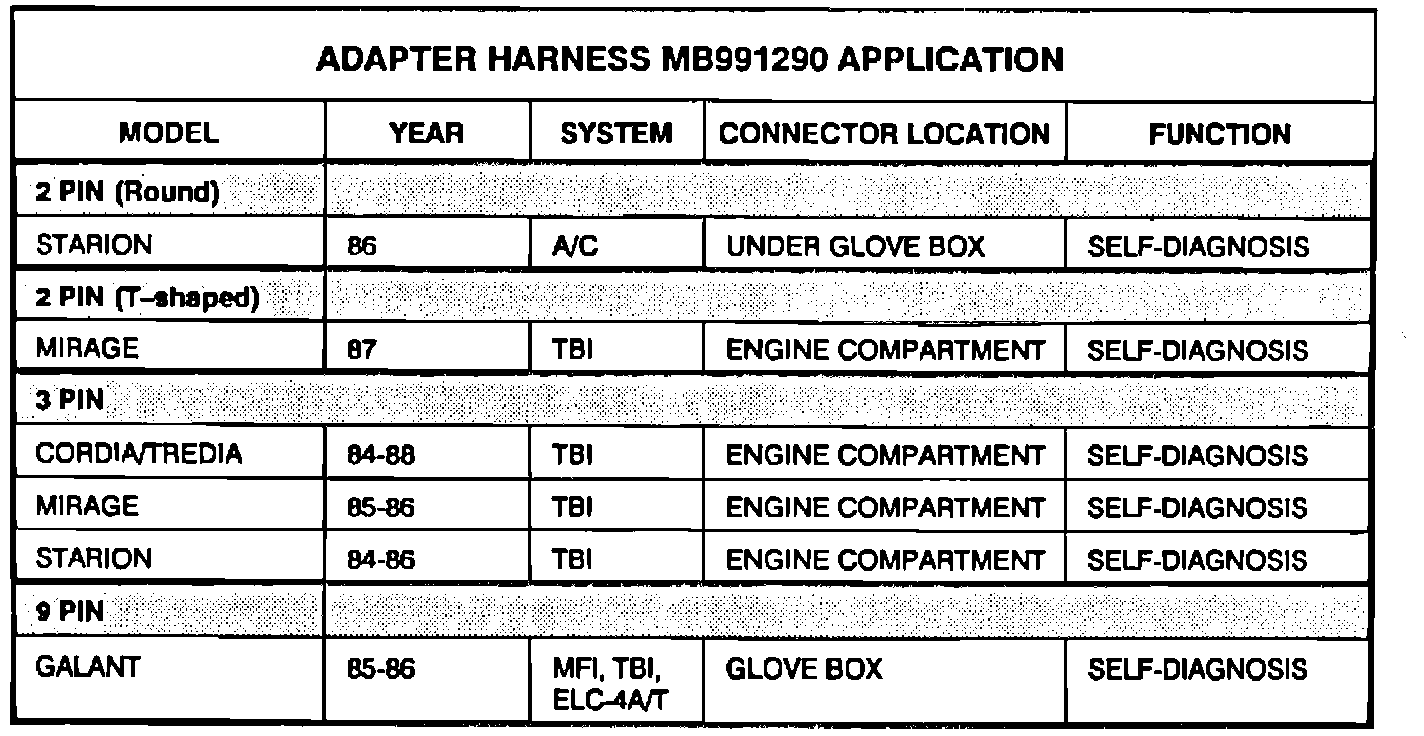

Adapter Harness MB991290 Application
