Power Mirror Motor Test

Connect 12-volt power source to mirror connector terminals. See Fig 1 and Fig 3 . Replace mirror as necessary.

Fig 1: Power Mirror Connector With Heater (Stealth & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Power Mirror Connector Without Heater (Stealth & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

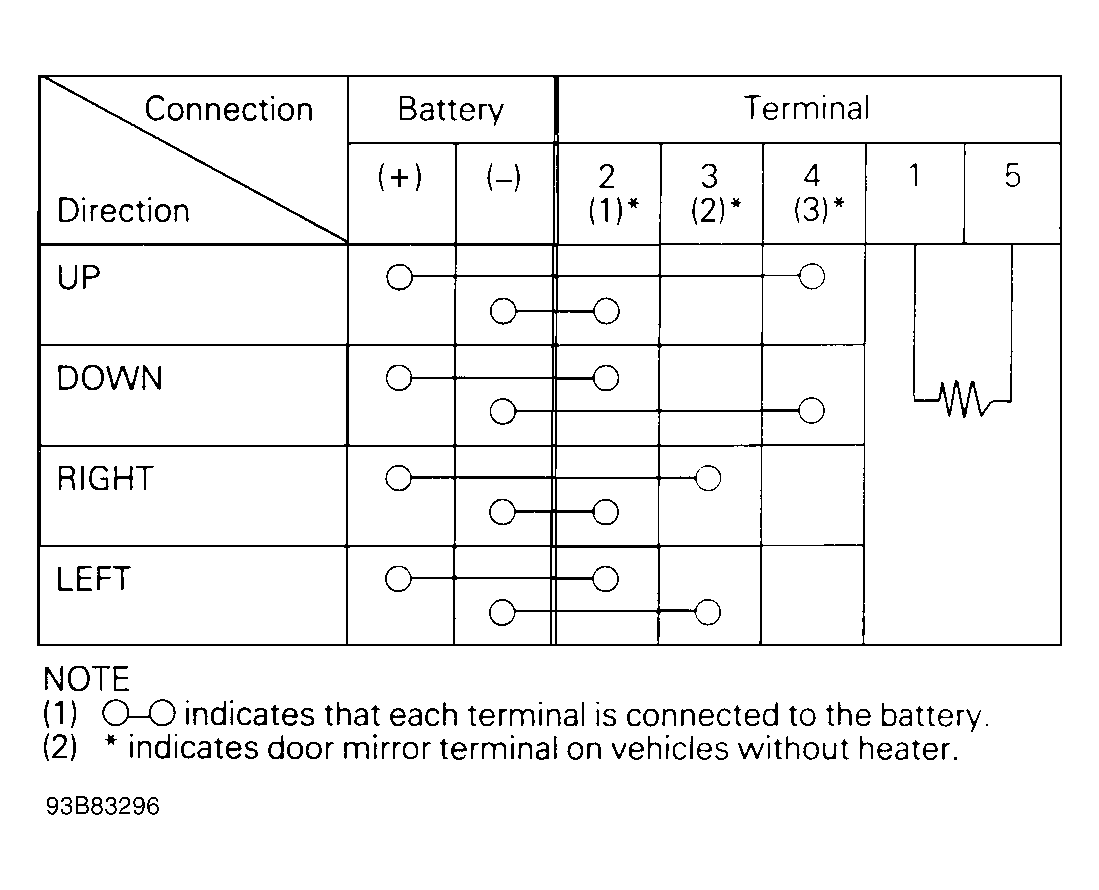

Fig 3: Power Mirror Operational Test Charts (Stealth & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
