Symptom Chart

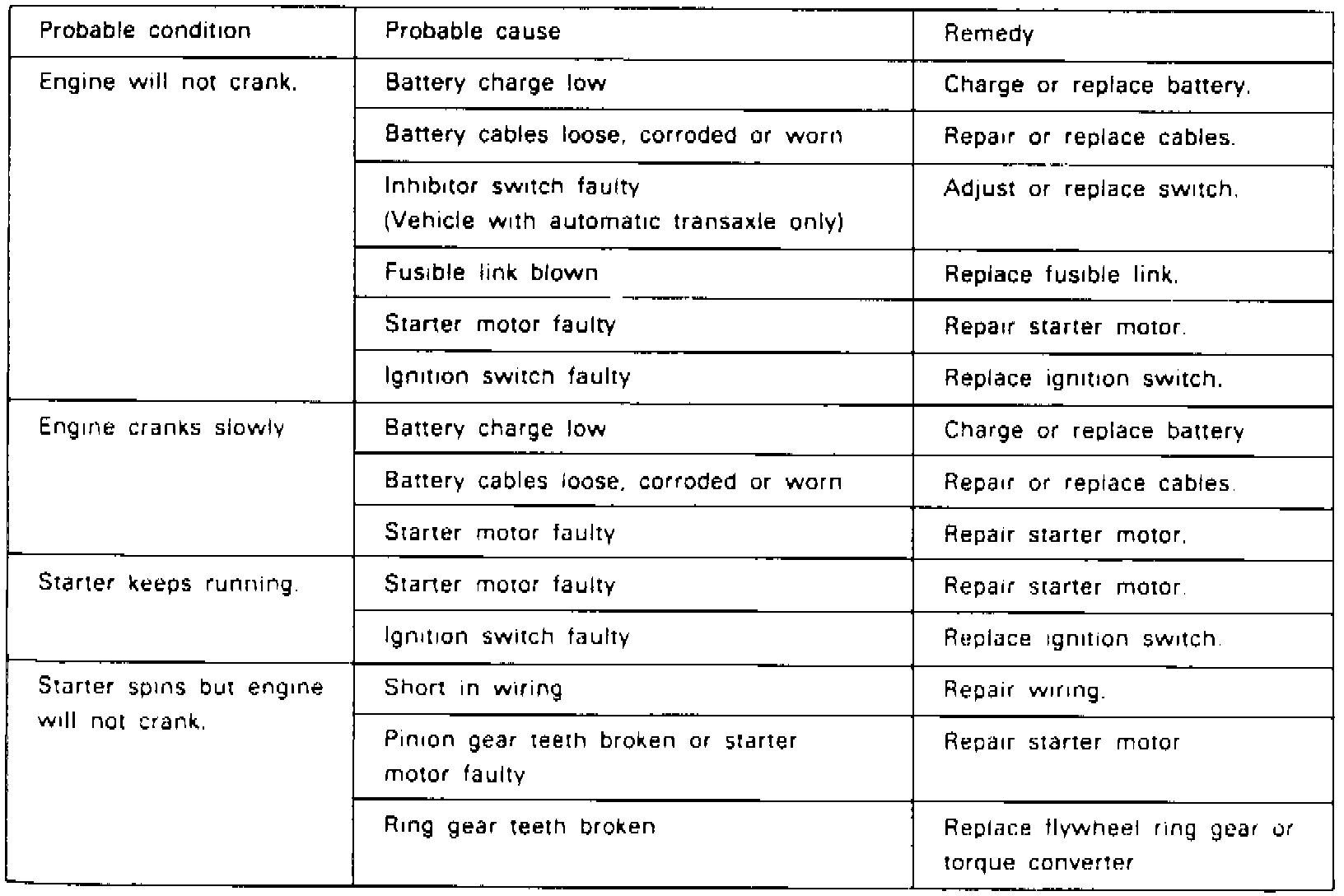

Fig. 4 Starting System Troubleshooting Chart:





Refer to Fig. 4 when troubleshooting the starting system.
