Shift Control Solenoid Valves

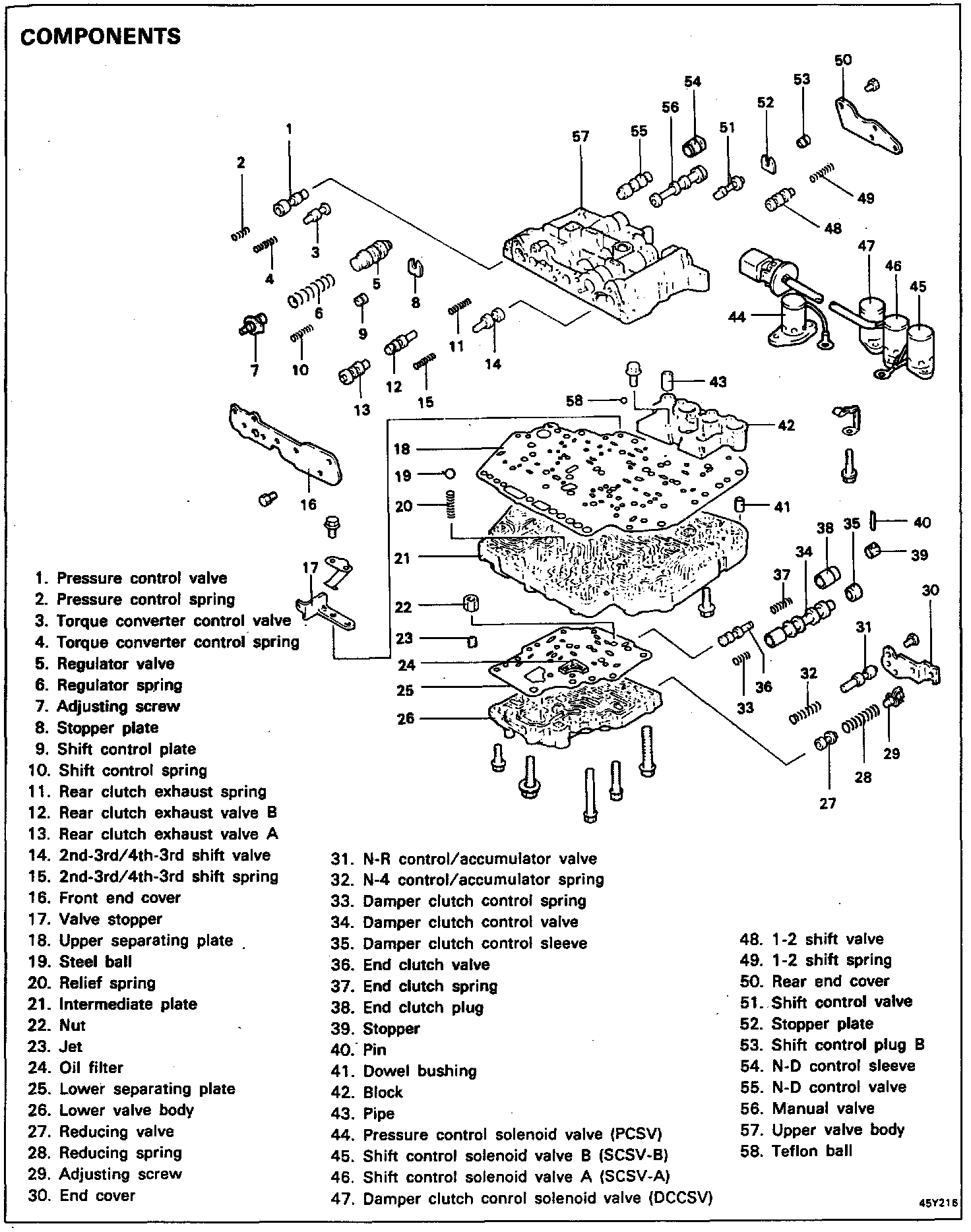

Valve Body Components:




Servicing of this part requires removal and disassembly of the transaxle valve body. For more information, SEE Transmission/Transaxle Automatic.
