Road Test: Notes

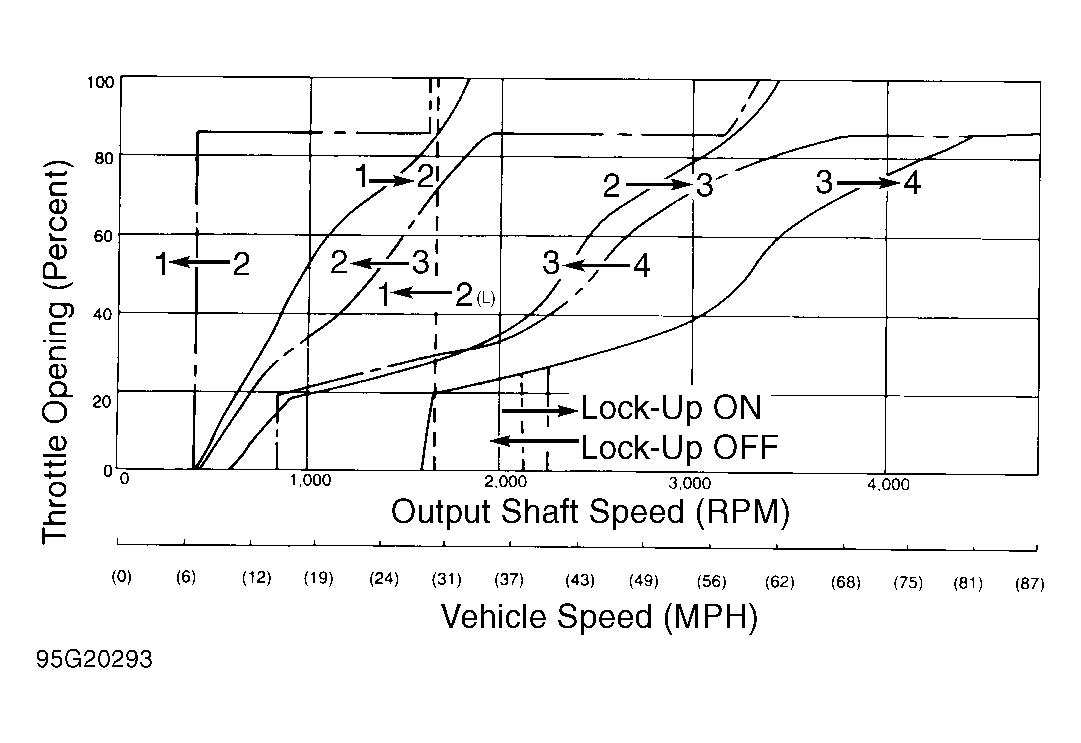

NOTE: Perform road test to ensure transmission shift points are at specified speeds. See Figure . Broken lines in shift point chart indicates downshifts, and solid lines indicate upshifts.
