Component Locations

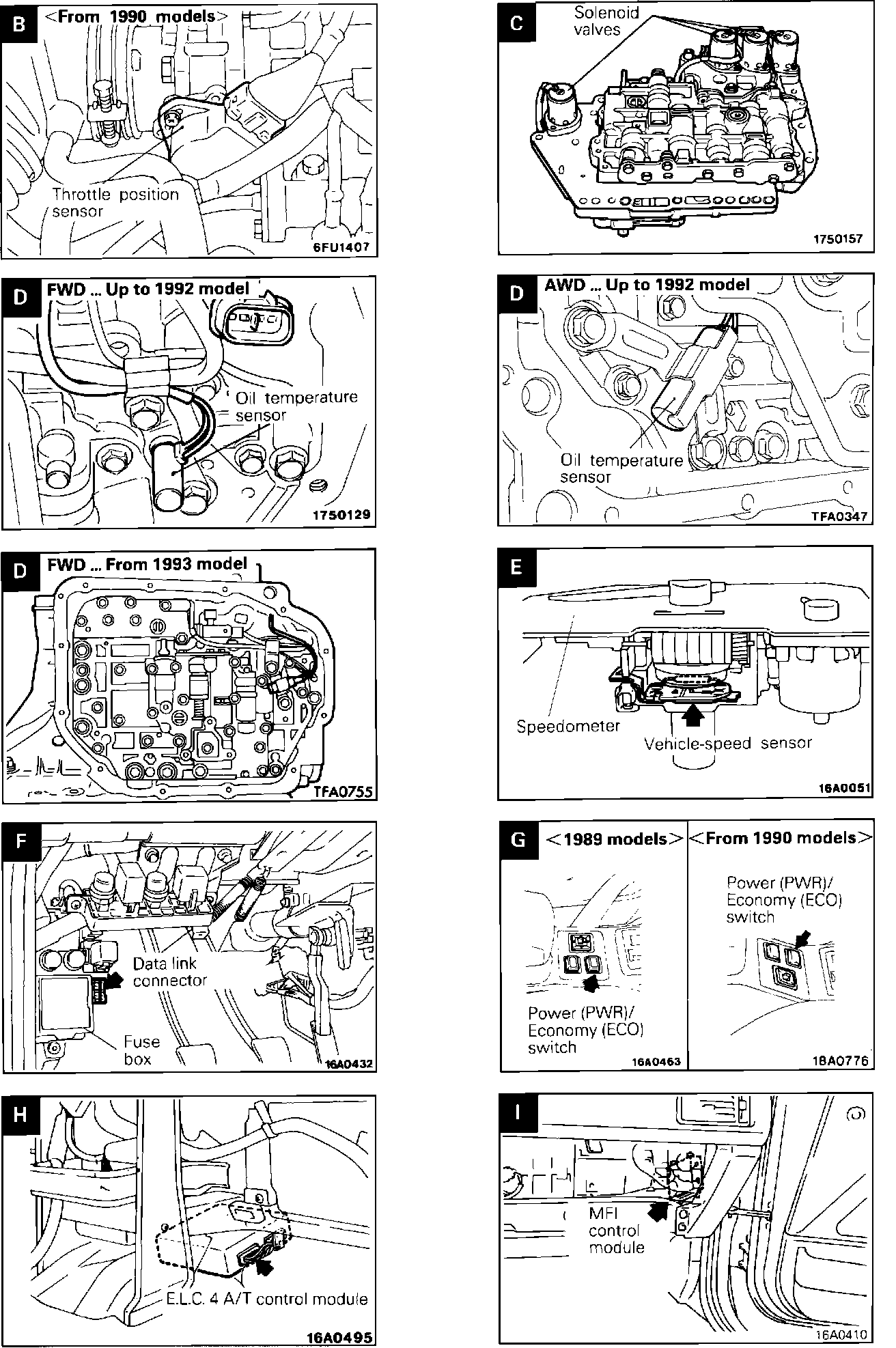

Automatic Transaxle (Electronically Controlled 4-Speed): Component Location:

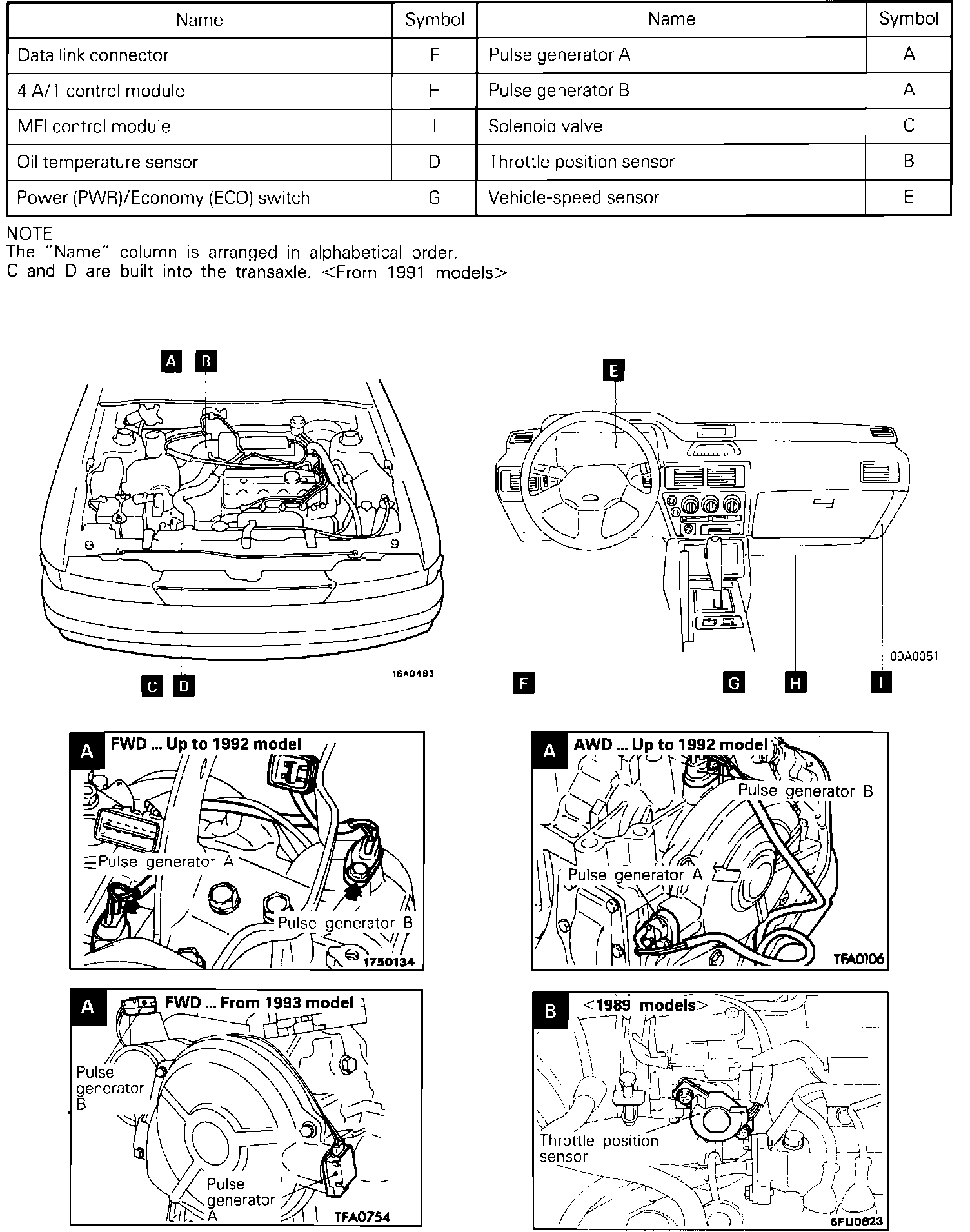

Automatic Transaxle (Electronically Controlled 4-Speed): Component Location:
