Dr-12A: Code 42, Testing Fuel Pump Sense (2.4L Only)
Fig 1: Test DR-12A Schematic - Code 42 (2.4L) Testing Fuel Pump Sense

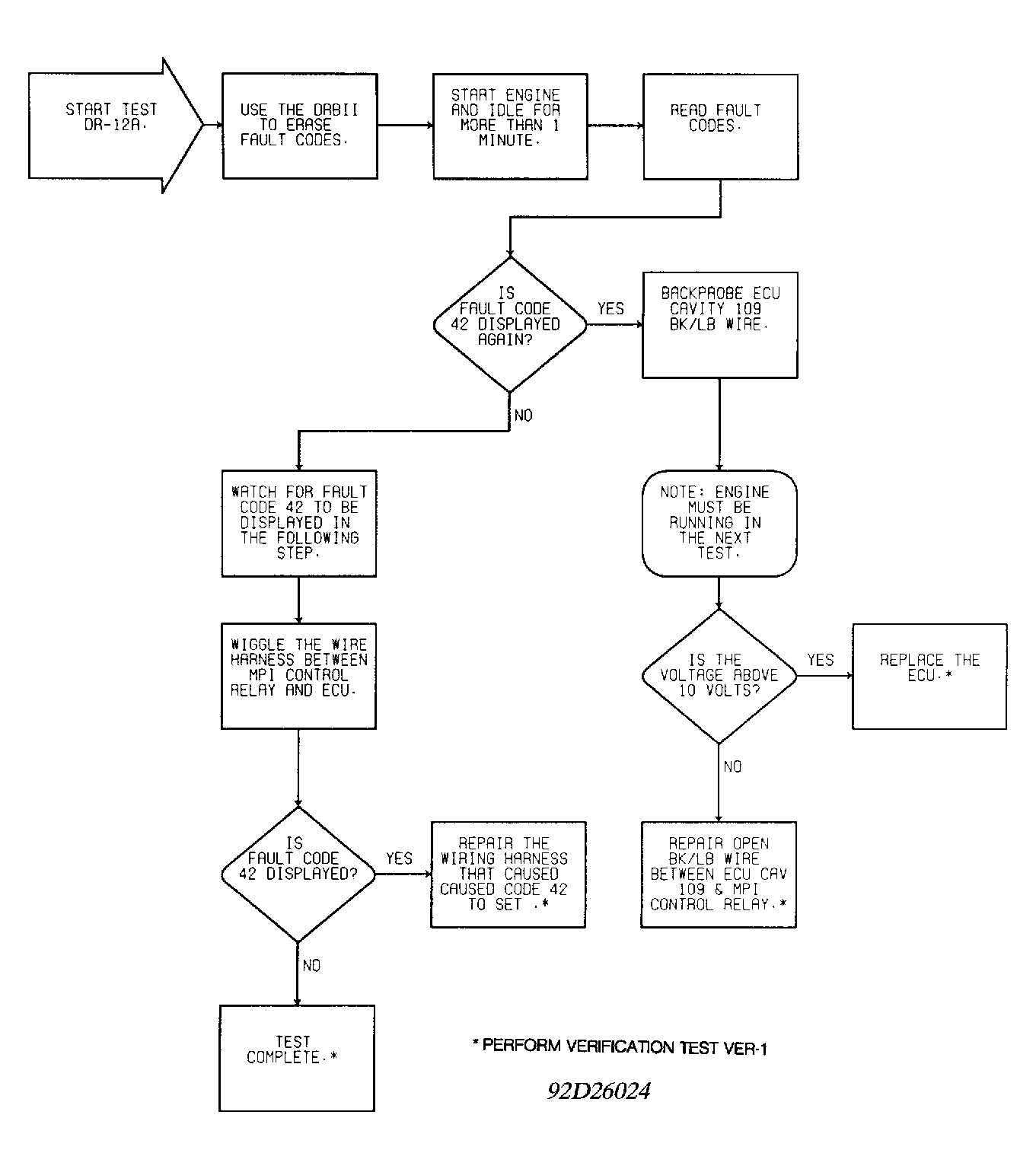

Fig 2: Test DR-12A Flow Chart - Code 42 (2.4L) Testing Fuel Pump Sense
