Power Window Relay

Remove the power window relay from the relay box to test. See Fig 1 .

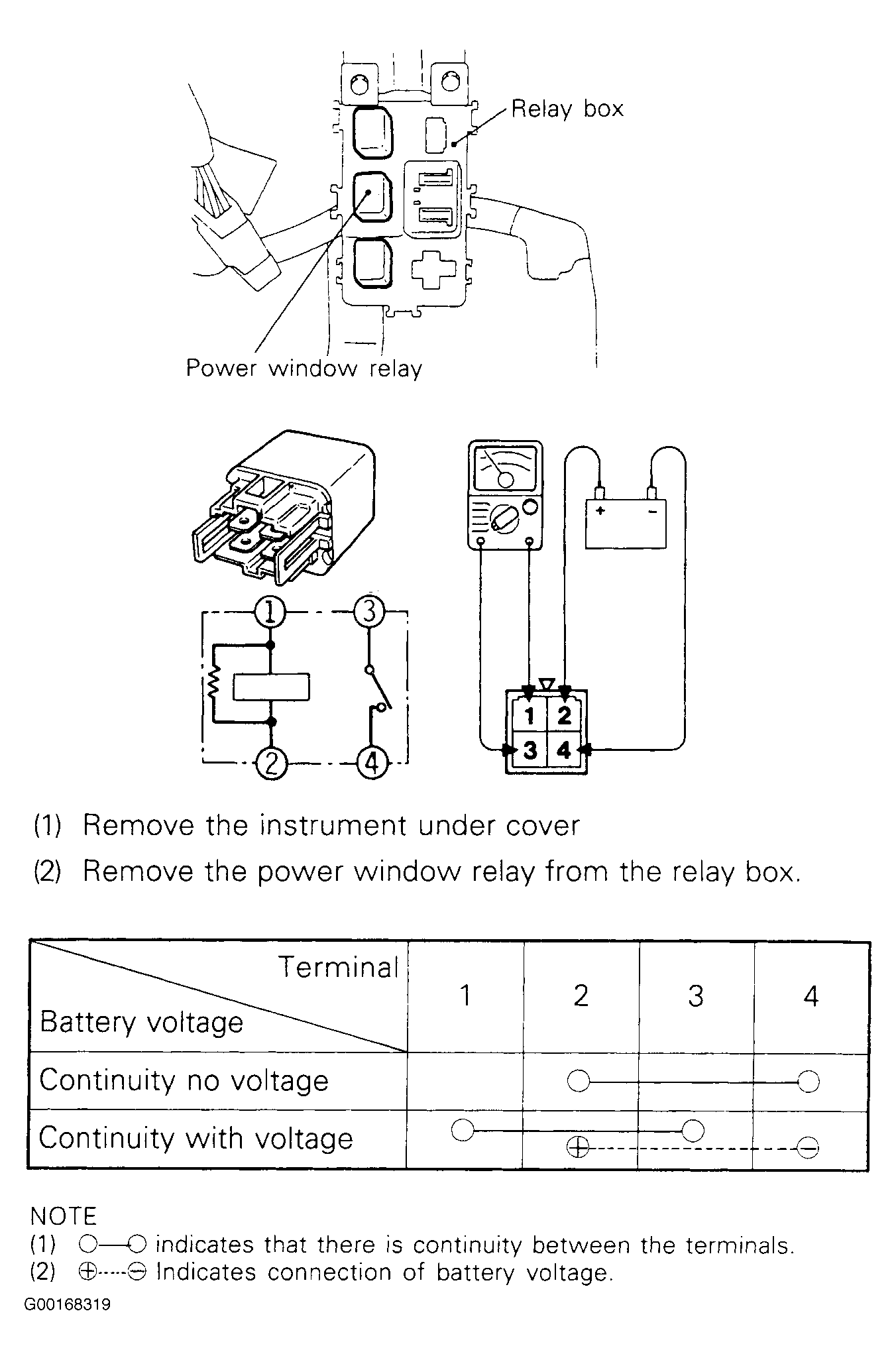

Fig 1: Inspecting Power Window Relay
G00168319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
